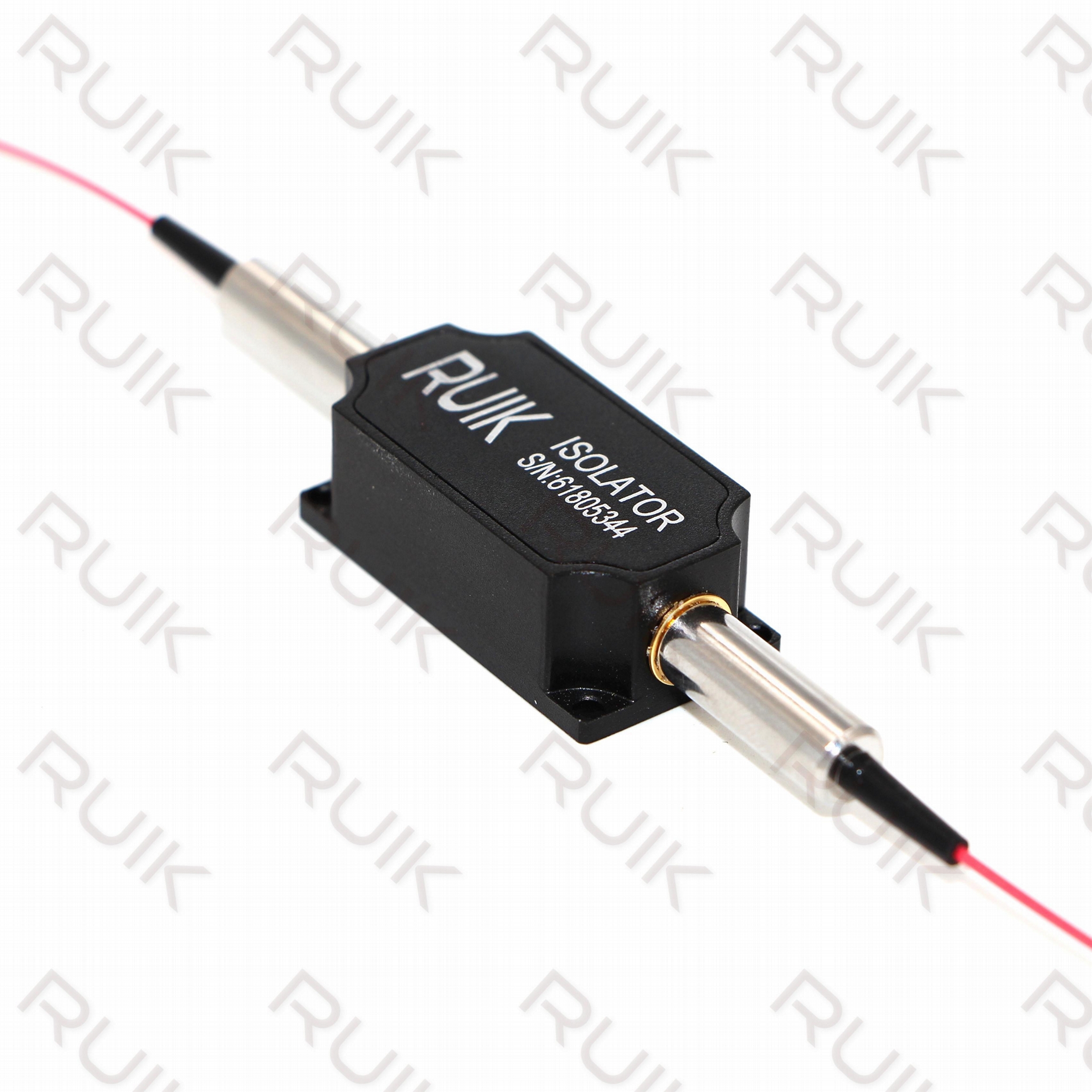

Ruik's polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction.
|
2W Optical Isolator (1064nm, Faraday Based) |
||
|
|
|
|
|
Features |
Applications |
|
|
Low Insertion Loss |
Fiber Amplifier |
|
|
High Return Loss |
Testing Instrument |
|
|
High Isolation |
MOPA Fiber Laser |
|
|
High Stability & Reliability |
Fiber Laser |
|
|
|
|
|
|
Specifications |
||
|
Parameters |
Unit |
Value |
|
Center Wavelength |
nm |
1064 |
|
Operating Wavelength Range |
nm |
±5 |
|
Typ. Peak Isolation at 23℃ |
dB |
35 |
|
Min. Isolation at 23℃ |
dB |
28 |
|
Max. Insertion Loss at 23℃ |
dB |
1.7 |
|
Max. Insertion Loss at 23℃ and Input Power 300 mW |
dB |
2.0 |
|
Max. Insertion Loss at 23℃ and Input Power 1 W |
dB |
2.5 |
|
Max. Insertion Loss at 23℃ and Input Power 2 W |
dB |
3.0 |
|
Max. Polarization Dependent Loss at 23℃, only for PI |
dB |
0.2 |
|
Min. Extinction Ratio at 23℃, only for PM |
dB |
20 |
|
Min. Return Loss(Input /Output) |
dB |
45 |
|
Max. Average Optical Power |
W |
2 |
|
Max. Peak Power for ns Pulse |
kW |
10 |
|
Max. Tensile Load |
N |
5 |
|
Operating Temperature |
℃ |
+10 to +50 |
|
Storage Temperature |
℃ |
0 to +60 |
|
With connectors, the handling power will be only 1W, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. |
||
|
Ordering Information |
||
|
PMIS/PIIS-1111-23-444-56-7-88-99AA |
||
|
1111 |
-Center Wavelength: |
1064=1064nm |
|
2 |
-Stage: |
S=Single-core stage, D=Dual-core stage |
|
3 |
-Axis Alignment: |
F=Slow axis working, Fast axis blocked, B=Both axis working, N=Non PM |
|
444 |
-Fiber Type: |
001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E |
|
5 |
-Package Dimension: |
0=33x17x11.5mm, S=Specified |
|
6 |
-Pigtail Type: |
0=250μm bare fiber, 1=900μm loose tube |
|
7 |
-Fiber Length: |
0.8=0.8m,1.0=1m |
|
8 |
-Connector for In, Out: |
0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None |
|
99 |
-Average Power: |
01=1W, 02=2W |
|
AA |
-Peak Power: |
10=10kW, 20=20kW |
