| Model: | - |
|---|---|
| Brand: | OEM/ODM |
| Origin: | - |
| Category: | Electronics & Electricity / Electronic Instrument / Thermometers |
| Label: | Temperature Camera , Face Recognize |
| Price: |
US $728
/ pc
|
| Min. Order: | 1 pc |
| Last Online:24 Dec, 2019 |

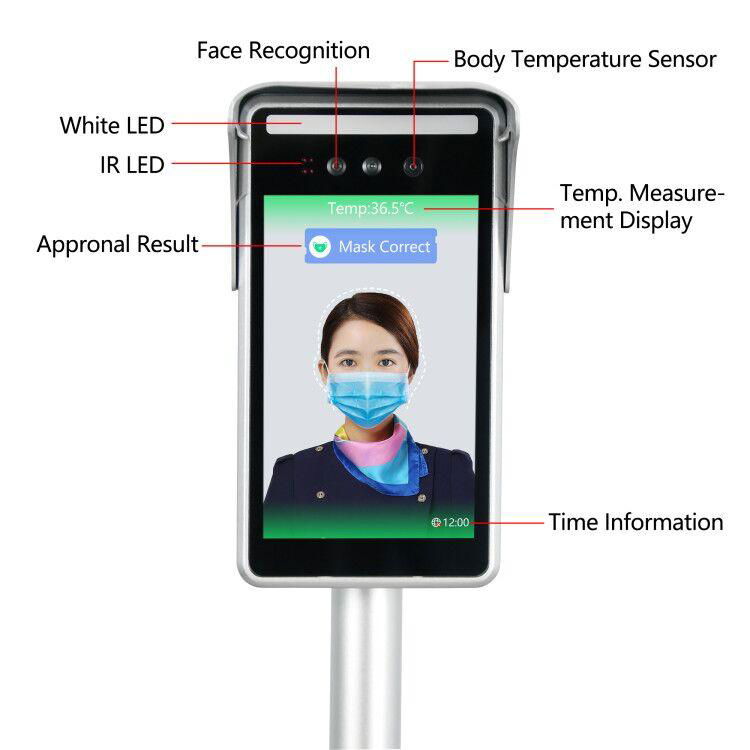

Floor-Standing Support Multiple Languages Attendance Function Face Recognize Smart Temperature Thermal Camera
1.Specification:
lEnables live body recognition
lEnables track of the movement of a human face in backlit environment
lPatent owned facial recognition algorithm, able to recognize faces with high accuracy, response time<0.5s
lBuilt-in high-performance NPU
lLinux operating system, high reliability
lMTBF>50,000h
lCapable of storing 24,000+ facial image and up to 50,000 capture record
lOperating temperature: 15℃~35℃
lSupports multiple interfaces(I/O \WG26\WG34\RJ45)
l8 inches HD display, image display without delay
lAutomatic gain and auto white balance, able to exhibit the true color of the image
lBuilt-in black light level sensor, low-light recognition is in high accuracy
l2D/3D noise reduction anti-fog technology, low-light recognition smoothening capability
lSupports intelligent light filled setting
2.Thechnical Specifications:
n Detection Parameters
n Facial Recognition Parameters
|
Item |
Specification |
|
Detecting Range
|
0.8~2.2m,adjustable angle |
|
Face angle |
Horizontally 30° Vertically 30° |
|
Response time |
<0.5 seconds |
|
Storage Capacity |
50,000 capture record |
|
Facial image record capacity |
24,000 pieces |
|
Face recognition accuracy |
>99.25% |
n Camera Parameters
|
Item |
Specification |
|
Camera |
Binocular camera,Visible,Supports live body detection |
|
Effective MegaPixels |
210, (1920*1080) |
|
Minimum illumination |
multicolor 0.01Lux @F1.2(ICR); Black and white 0.001Lux @F1.2 (ICR) |
|
Signal to noise ratio |
≥50db(AGC OFF) |
|
Wide dynamic |
120db, ISP algorithm face partial exposure |
|
Remote device upgrade |
Support |
n Interface
|
Item |
Specification |
|
Digital output |
1 digital output |
|
Network interface |
1 RJ45 10M / 100M adaptive Ethernet port |
|
USB interface |
1 USB |
|
WG |
1 WG in,1 WG out |
|
Interface |
RS485 port x 1 |
n General Parameters
|
Item |
Specification |
|
Processor |
Dual-core processor+1G memory +16G Flash |
|
OS |
Linux |
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Speaker |
Standard and able to pre-record content |
|
Operating Temperate |
Indoor recommended 0~90% RH |
|
Antistatic |
Contact ±6KV,Air ±8KV |
|
Power requirement |
DC12V/2A |
|
Power consumption |
20W(MAX) |
|
Dimension |
252(L)*136(W)*26(H)mm |
|
Screen size |
8 inches |
|
Column Aperture |
36mm |
|
Weight |
1.7KG |
n Model Type:
|
Product name |
Model |
Description |
|
FaceTick PRO |
RNR-FT-P158 |
Device |
|
Wall mount |
910C-0X0000-030 |
Fitting |
|
Pole stand |
910C-0X0000-029 |
Fitting |
|
RecoFace V1.0 |
RN-GF-E15-01A |
Platform software |
4.Important Ssfety Information
This section presents important information intended to ensure safe and effective use of this product.
Read this section carefully and store it in an accessible location.
5.Safety Precautions
lWhen the device cannot be exited or terminated, you can reset and restart it by powering off and on again.
lWhen using the device, try to avoid hard objects from impact and knock, and do not scratch with sharp objects to prevent damage to the device casing.
lWipe the display and panel lightly with a soft cloth and other materials. Avoid using water and detergent.
lIn the installation and use of this product, all national and regional electrical regulations must be strictly observed.
lIf the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.
lAvoid extreme high temperature (or low temperature), high humidity, vibration, radiation, chemical corrosion and other harsh or extreme environments during installation and use.
