Chalk powder grinder machine

Model:HD1300
Brand:GuiLin HangDa Mining Machinery
Origin:Made In China
Category:Industrial Supplies / Mining Machine
Label:grinder machine , grinding mill , mill for Chalk
Price: ¥300000 / pc
Min. Order:1 pc
Inquire Now

Product Description


Model : Raymond mill HD1300
Max.feeding size:20mm
Fineness: 80-400 mesh
Capacity:2.5-14T/H
Ring size: φ 1300 ×  280mm
Total power: 202kw

1. Advanced structure of the main mill : The   main mill of the grinder machine  adopts buffer device, and the structure of the housing barrel is optimized for stable operation and low noise. The main mill  and the analysis machine adopt the quick change pressing device, the maintenance is convenient.
2, large conveying capacity: the blower of the grinder machine  adopts high pressure centrifugal fan, the air volume and air pressure increase, greatly improving the pneumatic conveying capacity.
3. High classification accuracy: the classifier of the grinder machine  adopts squirrel cage cone turbine classifier, and the granularity of finished products can be adjusted arbitrarily within 80-400 mesh.
4, arc frictionless air duct: the air duct adopts arc frictionless air duct design to reduce the wind resistance, reduce the loss of air volume, so that the flow direction of materials is good, so as to increase the powder separation rate of the analysis machine.
5. New type of roller grinding device: the roller grinding device of the grinder machine  adopts new type of maintenance-free structure with reliable sealing. Its bearings are lubricated with oil, thus reducing fuel consumption and maintenance cost.
6. Large amount of shoveling: super large shoveling knife is adopted to make the most amount of material sent into the grinding roller and grinding ring for grinding.The blade is made of alloy steel and durable.

Product Image

Chalk powder grinder machine 1
Img 1

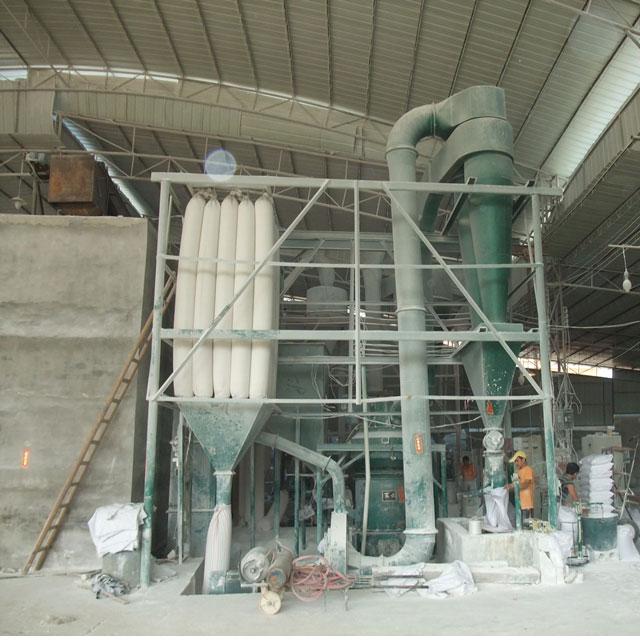

Chalk powder grinder machine 2
Img 2

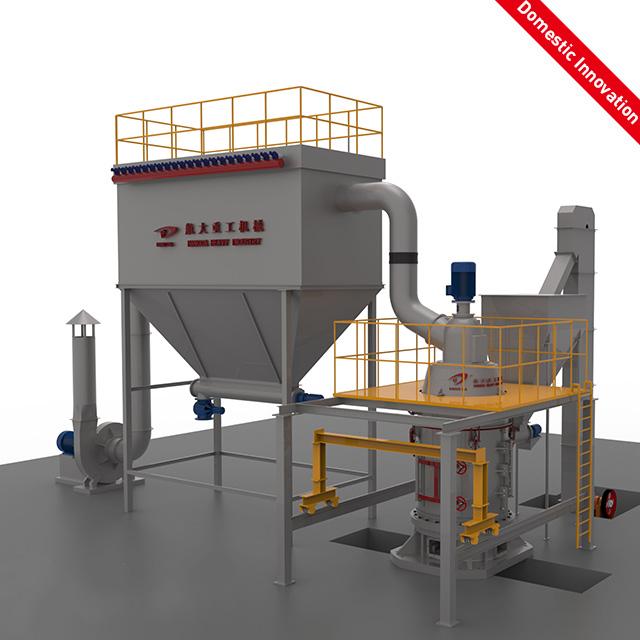

Chalk powder grinder machine 3
Img 3
Chalk powder grinder machine 4
Img 4
Chalk powder grinder machine 5
Img 5
