| Model: | QGF-1200 |
|---|---|
| Brand: | FILL-PACK |
| Origin: | - |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Filling Machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:28 Jun, 2020 |

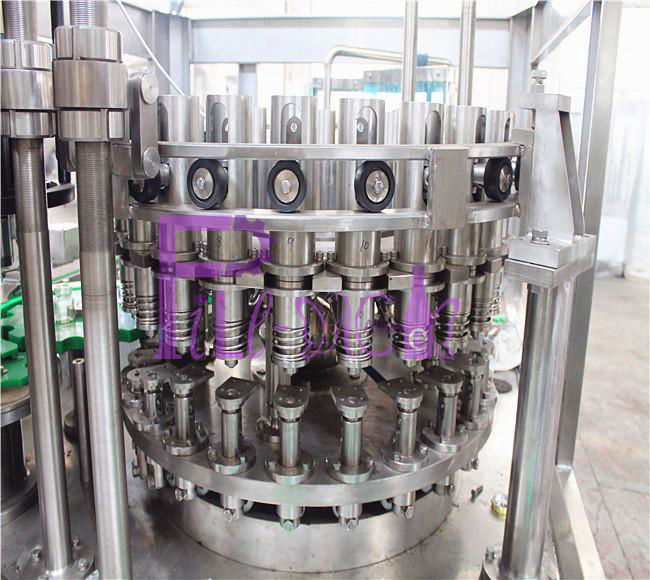

FILL-PACK Piston Filling Machine-5
Title: Roller adjusting paste filling machine for pulpy juice
Key words: paste filling machine, sauce filling machine , sauce filler
QUICK DETAILS:
Model: HSCGF24-24-8
Brand: FILL-PACK
Power: 7.5kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 2800*2300*2300mm
Weight: 5500 KG
Application: paste filling
Packing category: bottle / can / jar
Packing material: glass / metal / PET
Condition: New
The FILL-PACK paste filling machine is integrated with washing, filling and capping functions. It is suitable for filling thick liquids like jam sauce. The most advanced technology from Japan and Germany is employed in the design. The piston same volume sucking filling is used. The filling is fast, the amount of material is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. The efficiency of bottle washing is high.
The magnetic torque is used for twist off capping. The power of capping can be adjusted without steps. The capping strength can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
My website:
https://www.fillpackmachine.com/piston-filling-machine/piston-filling-machine-5.html
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
|
Model |
HSCGF24-24-8 |
|
Capacity (B/H) |
10000(within 200ml) |
|
Bottle size |
Neck :φ20-100mm:Height:100-320mm |
|
Water Pressure |
0.18-0.25Mpa |
|
Water consumption(kg/h) |
1000 |
|
Filling precision |
＜+/- 5g (basing on 200g dosing) |
|
Air pressure |
0.5Mpa |
