| Model: | VT-10 pro |
|---|---|
| Brand: | 3RTablet |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / Embedded Computer & SCM |
| Label: | Vehicle Tablet , R ed Computer , Embedded PC |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:29 Jul, 2024 |

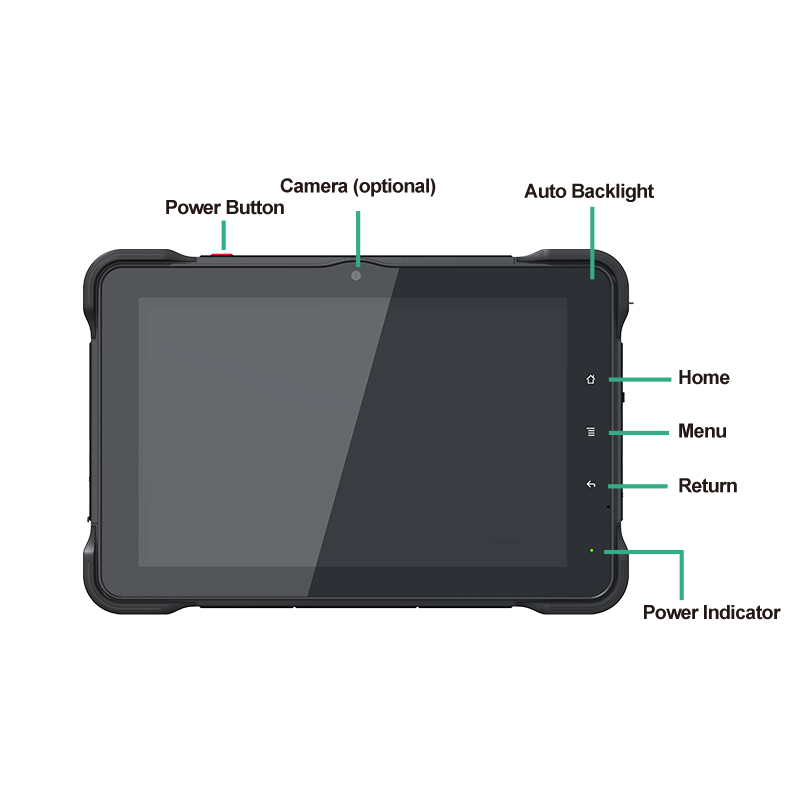

VT-10 Pro
10 inch in-vehicle r ed tablet for fleet management
VT-10 Pro with Octa-core processor, Android 9.0 system, integrated with WiFi, Bluetooth, LTE, GPS etc functions are suitable for various applications.
Feature
1000 Nits High Brightness IPS Panel
The 10.1-inch IPS Panel features a 1280*800 resolution and an outstanding brightness of 1000nits, providing a superior end-user experience that is especially well-suited for outdoor use. The VT-10 tablet is sunlight-visible, providing better visibility and user comfort.
IP67 Rated
The r ed VT-10 Pro tablet is certified by IP67 rating, which means it can withstand being soaked for 30 minutes in water up to 1 meter deep. This r ed design allows it to operate normally in harsh environments, improving its reliability and stability while extending its service life, ultimately reducing hardware costs.
High-precision GPS Positioning
The high-precision GPS positioning system supported by the VT-10 Pro tablet is essential for agricultural intensive farming and fleet management. This feature can greatly enhance the effectiveness and efficiency of MDT (Mobile Data Terminal) operations. A reliable and high-performance positioning chip is a critical component of this technology.
8000 mAh Removable Battery
The tablet is equipped with an 8000mAh Li-on replaceable battery that can be quickly installed and removed. This feature not only improves maintenance efficiency but also reduces after-sales cost, providing a better user experience.
CAN Bus Data Reading
VT-10 Pro is designed to support the reading of CAN Bus data, including CAN 2.0b, SAE J1939, OBD-II and other protocols. This feature makes it particularly useful for fleet management and agricultural intensive cultivation. With this capability, integrators can easily read engine data and enhance their vehicle data collection capabilities.
Wide Range of Operating Temperature Support
VT-10 Pro supports to work in wide range of operating temperature for outdoor environment, whether it is fleet management or agricultural machinery, high and low working temperature problems will be encountered. VT-10 supports to work in the temperature range of -10°C ~65°C with reliable performance, the CPU processor will not slow down.
Custom Optional Functions Supported
More options to meet customer’s different needs. It also supports options of camera, fingerprint, bar-code reader, NFC, Docking Station, one-wire etc, to better suit for different applications.
Fall Protection and Drop Resistance
VT-10 Pro is certified by the US military standard MIL-STD-810G, anti- vibration, shocks and drop resistance. It supports a height of 1.2m drop. In the event of an accidental fall, it can avoid damage to the machine and increase its service life.
Specification
| System | |
| CPU | Qualcomm Cortex-A53 Octa-core Processor,1.8GHz |
| GPU | Adreno 506 |
| Operating System | Android 9.0 |
| RAM | 2 GB LPDDR3 (Default); 4GB (Optional) |
| Storage | 16 GB eMMC (Default); 64GB (Optional) |
| Storage Expansion | Micro SD 512G |
| Communication | |
| Bluetooth | 4.2 BLE |
| WLAN | IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
| Mobile Broadband
(North America Version) |
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE TDD: B41 WCDMA: B2/B4/B5 |
| Mobile Broadband
(EU Version) |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900MHz |
| GNSS | GPS/GLONASS |
| NFC (Optional) | Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s, |
| MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes | |
| Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s; T3T FeliCa | |
| Functional Module | |
| LCD | 10.1inch HD (1280×800), 1000cd/m high brightness, sunlight readable |
| Touchscreen | Multi-point Capacitive Touch Screen |
| Camera (Optional) | Front: 5 MP |
| Rear: 16 MP with LED light | |
| Sound | Internal microphone |
| Built-in speaker 2W,85dB | |
| Interfaces (On Tablet) | Type-C, SIM Socket, Micro SD Slot, Ear Jack, Docking Connector |
| Sensors | Acceleration sensors, Ambient light sensor, Gyroscope, Compass |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Physical Dimensions (WxHxD) | 277×185×31.6mm |
| Weight | 1316 g (2.90lb) |
| Environment | |
| Gravity Drop Resistance Test | 1.2m drop-resistance |
| Vibration Test | MIL-STD-810G |
| Dust Resistance Test | IP6x |
| Water Resistance Test | IPx7 |
| Operating Temperature | -10℃~65℃ (14°F-149°F) |
| Storage Temperature | -20℃~70℃ (-4°F-158°F) |
| Interface(Docking Station) | |
| USB2.0 (Type-A) | x1 |
| RS232 | x1 |
| ACC | x1 |
| Power | x1 |
| CANBUS
(1 of 3) |
CAN 2.0b (optional) |
| J1939 (optional) | |
| OBD-II (optional) | |
| GPIO
(Positive Trigger input) |
Input x2, Output x2 (Default) |
| GPIO x6 (optional) | |
| Analog Inputs | x3 (optional) |
| RJ45 | optional |
| RS485 | optional |
| RS422 | optional |
| Video in | optional |
This Product is Under Protection of Patent Policy
Tablet Design Patent No: 2020030331416.8, Bracket Design Patent No: 2020030331417.2
