Diamond Gold Mining Washing Plant

Model:HDS1030-HDS2250
Brand:-
Origin:Made In China
Category:Industrial Supplies / Mining Machine
Label:diamond mining plant , diamond wash plant , gold washing plant
Price: US $2000 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

YEES Mining Equipment Co., Ltd.

Free MemberJiang Xi - China
Last Online:05 Aug, 2020

Product Description

Rotary drum scrubber named as trommel scrubber or drum scrubber is a special washing equipment for cleaning large materials with heavy clay that difficult to wash. Trommel drum scrubber has three functions: scrubbing, cleaning and screening. The maximum feed size can reach 200 mm. It mainly carries out preliminary cleaning for raw ore. It is widely used for diamond wash plant, gold wash plant, tin wash plant, etc.



It is a cylindrical drum supported on 4 carrying rollers or two trunnion bearings. The drum shell is made to rotate at a low speed, generally at 10-20 rpm., the drive type is tire drive or gear drive. Shell liners can be of Mn steel or rubber and discharge trommel can be supplied with wire mesh or PU panel.



Advantages and features

1. Heavy duty construction;

2. Big capacity;

3. High washing efficiency;

4. Replaceable Mu steel or rubber liners for wear and abrasion protection;

5. Modular frame option available for trommel drum scrubber mounting.

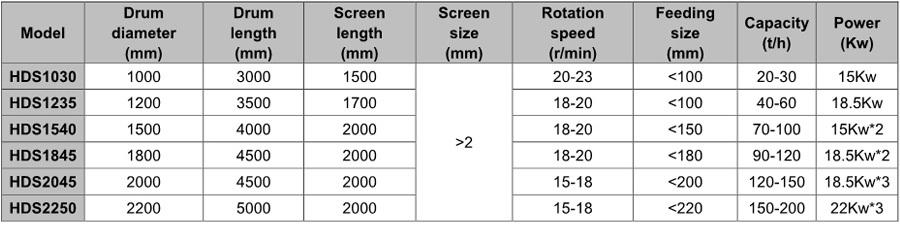

Capacities are normally determined by analysing the type of feed material, percent and type of waste material to be removed, screen analysis of the feed, and available water. Retention time in a Rotary Scrubber varies from application to application due to different types and varying amounts of wastes to be removed.


Product Image

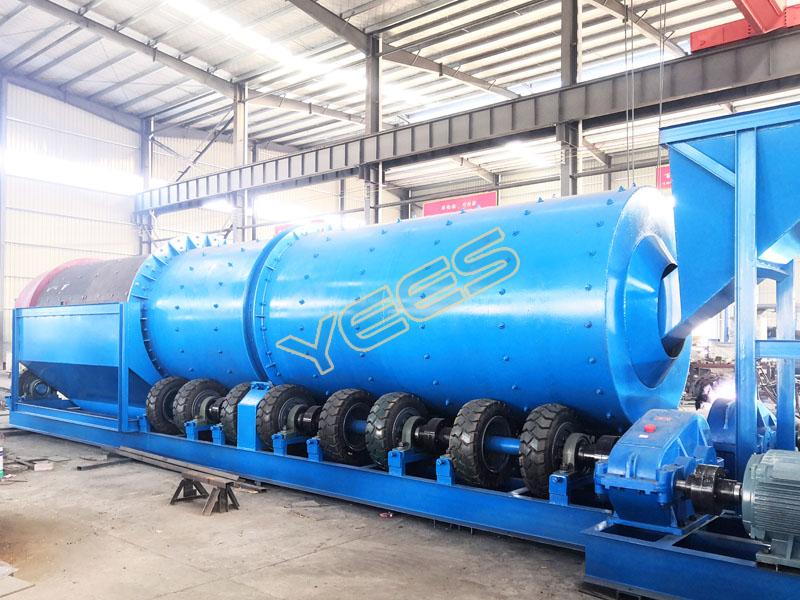

Diamond Gold Mining Washing Plant 1
Img 1

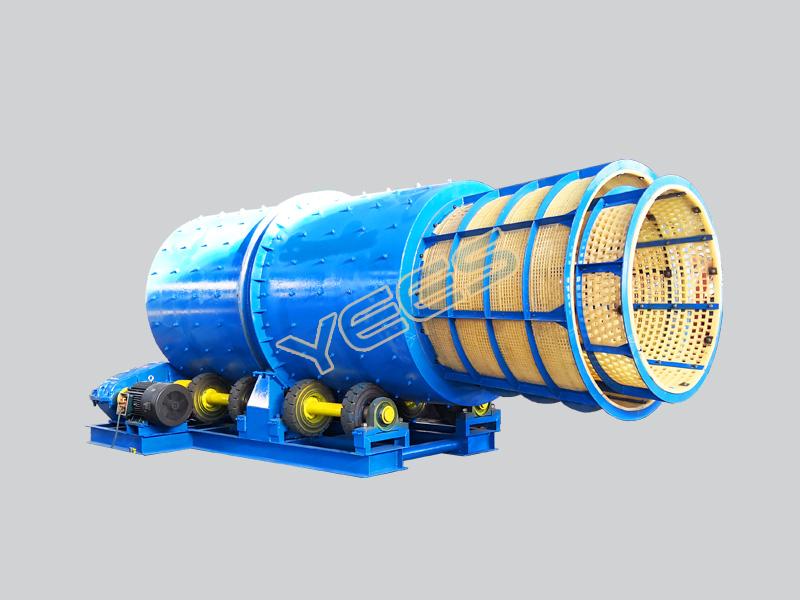

Diamond Gold Mining Washing Plant 2
Img 2

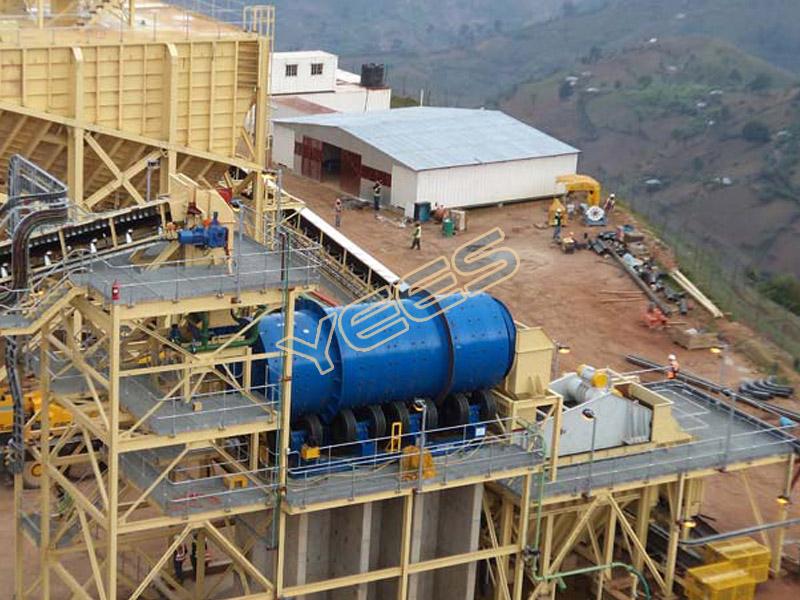

Diamond Gold Mining Washing Plant 3
Img 3

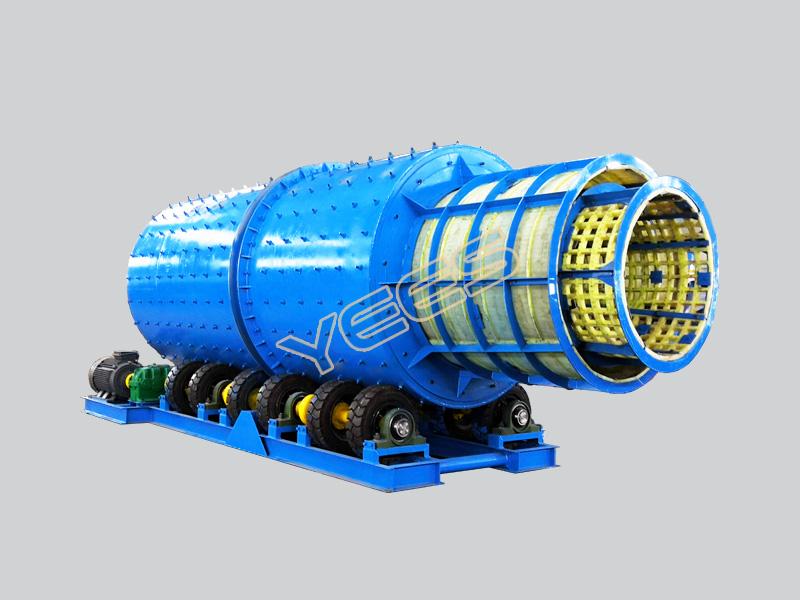

Diamond Gold Mining Washing Plant 4
Img 4
Diamond Gold Mining Washing Plant 5
Img 5
