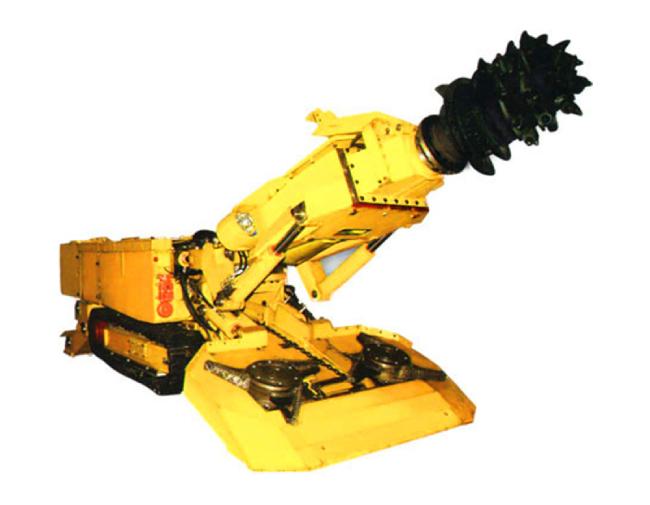

EBZ230 boom-type underground tunneling boring machine roadheader for coal mine

EBZ230 coal mine equipment is designed as compact structure, low body, low center of gravity. easy operation, good working performance.

1,Electric control system

EBZ230 roadheader adol11ts flame proof and intrinsically safe switch box and control box with small size, light weight, flexible operation,

 which is safety and reliable: main controller is installed in a closed casing that can effectively block out electromagnetic interference; working condition is

shown with LCD screen, menu mode is used for operating interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage,

 motor overload, open-phase, short circuit, over temperature and earth leakage lockout.

2,Hydraulic system

The hydraulic system of EBZ230 boring machine roadheader adopts transfer case, several pumps control, with main hydraulic components coming from international brands.

3,Cutting head

The cutting head is optimized by utilizing simulation technique and picks come from Kennametal Co., Ltd. With reasonable layout and strong rock breaking capacity.

4,Spraying system

Spraying system of EBZ230 tunneling boring machine include inside and outside spray systems, of which the front is after-pick spraying which is used to strength outside spraying,

the latter is reasonable in design and equipped with leakage detection function.

5,First freighter

Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.

6,Traveling mechanism

The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle.

If there is limit for weight or total weight during transportation, it can be disassembled for transportation.
