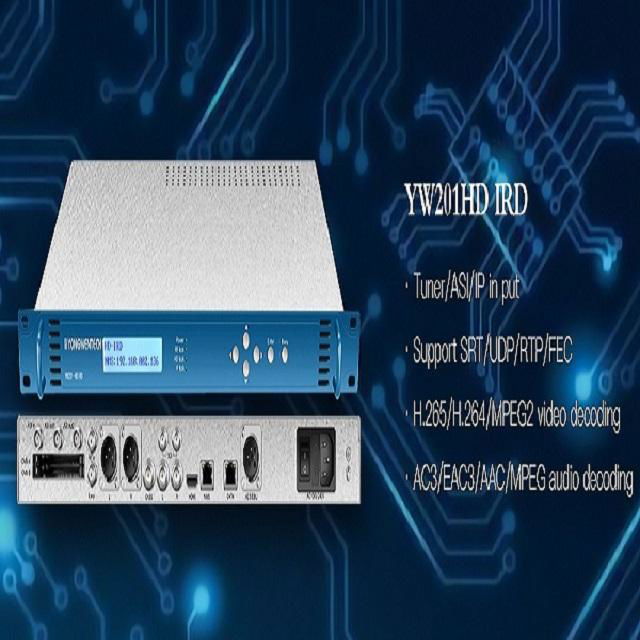

YW201 HD IRD support AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding. It support RF/ASI/IP input and 1080P/1080I/ 720P/576I/480I output resolution.
Key Features
Application category
Specifications
|
RF input |
DVB-S/S2 input |
Input port |
1*RF input, 1xRF loopout, 75Ω |
|
Input frequency |
950~2150MHz |
||
|
Input level |
-25~-65dBm |
||
|
Symbol rate |
1~45Msps |
||
|
LNB power supply |
13V, 18V, off , 22KHz |
||
|
Constellation |
QPSK, 8PSK |
||
|
DVB-T/T2 input |
Input port |
1*RF input, 1*RF loopout, 75Ω |
|
|
Input frequency |
44~1002MHz |
||
|
Input level |
-20~-100dbm |
||
|
Modulation mode |
DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM |
||
|
Bandwidth |
6/7/8 MHz |
||
|
DVB-C input |
Input port |
1*RF input, 1*RF loopout, 75Ω |
|
|
Input frequency |
48~862MHz |
||
|
Input level |
45~75dbuV |
||
|
Modulation mode |
16/32/64/128/256QAM |
||
|
ASI input/output |
Input/output interface |
1*BNC input, 75Ω; 2*BNC output, 75Ω |
|
|
Input/output bitrate |
≤200Mb/s |
||
|
TS over IP |
Interface |
1*RJ-45, 10/100 Base-T |
|
|
Effective rate |
90Mb/s (100 Based-T) |
||
|
IP protocol |
UDP/RTP, Unicast, Multicast |
||
|
HDMI output |
Interface |
1*HDMI |
|
|
Resolution and frame rate |
1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I |
||
|
Video decoding |
Decoding format |
MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ |
|
|
Audio decoding |
Decoding format |
MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 |
|
|
HD/SD-SDI output
|
Interface |
2*BNC, 75Ω |
|
|
SD-SDI output |
SMPTE 259M, 270Mb/s(10bit) |
||
|
HD-SDI resolution |
SMPTE 292M, 1.485 Gbit/s(20bit) |
||
|
Analog audio output |
Interface |
2*BNC, 2*XLR |
|
|
Output audio format |
Left, Right, Dual Mono, Stereo |
||
|
Digital audio output |
Interface |
1*AES/EBU |
|
|
Analog video output |
Video interface |
1*BNC, 75Ω |
|
|
CVBS format |
PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ |
||
|
Data output |
Subtitle |
DVB/EBU |
|
|
Teletext |
DVB/EBU |
||
|
Closed Caption |
EIA 608, EIA 708, EIA 608-to-708 |
||
|
Local and remote management |
Interface |
1*RJ-45, 10/100 Base-T |
|
|
Remote management |
HTTP Web |
||
|
Local management |
Front pannel button and LED |
||
|
Miscellaneous |
Dimension (W×L×H) |
450mm×280mm×44mm |
|
|
Net Weight |
3Kg |
||
|
Power |
AC 90V~250V, 50/60Hz |
||
|
Consumption |
24W(Power supply without LBN) |
||
