| Model: | GME12864-03 |
|---|---|
| Brand: | GoldenMorning |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | - |
| Price: |
US $2
/ pc
|
| Min. Order: | 2 pc |
| Last Online:30 Oct, 2020 |

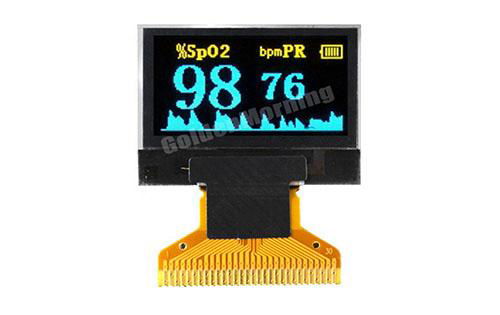

0.96" blue oled display
| Diagonal Screen Size | 0.96inch |
| Color | Mono(Yellow&Blue) |
| Model number | GME12864-03 |
| Resolutions |
128x64 |
| Outline dimension | 26.70×19.26×1.4mm |
| Active area | 21.744×10.864mm |
| Pixel pitch | 0.17×0.17mm |
| Pixel size | 0.154×0.154mm |
| Driver IC | SSD1306 |
| Voltage | 3-5V |
| Interface | 8-bit Parallel,3-/4-wire SPI, I2C |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 30P |
Drawing(0.96" oled)
Pin Assignment(0.96"oled,Pins:30P)
