| Model: | WIX-easyPRO4 |
|---|---|
| Brand: | WIX |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | Electrophoresis , western blot , life science |
| Price: |
US $900
/ pc
|
| Min. Order: | 10 pc |
| Last Online:01 Feb, 2021 |

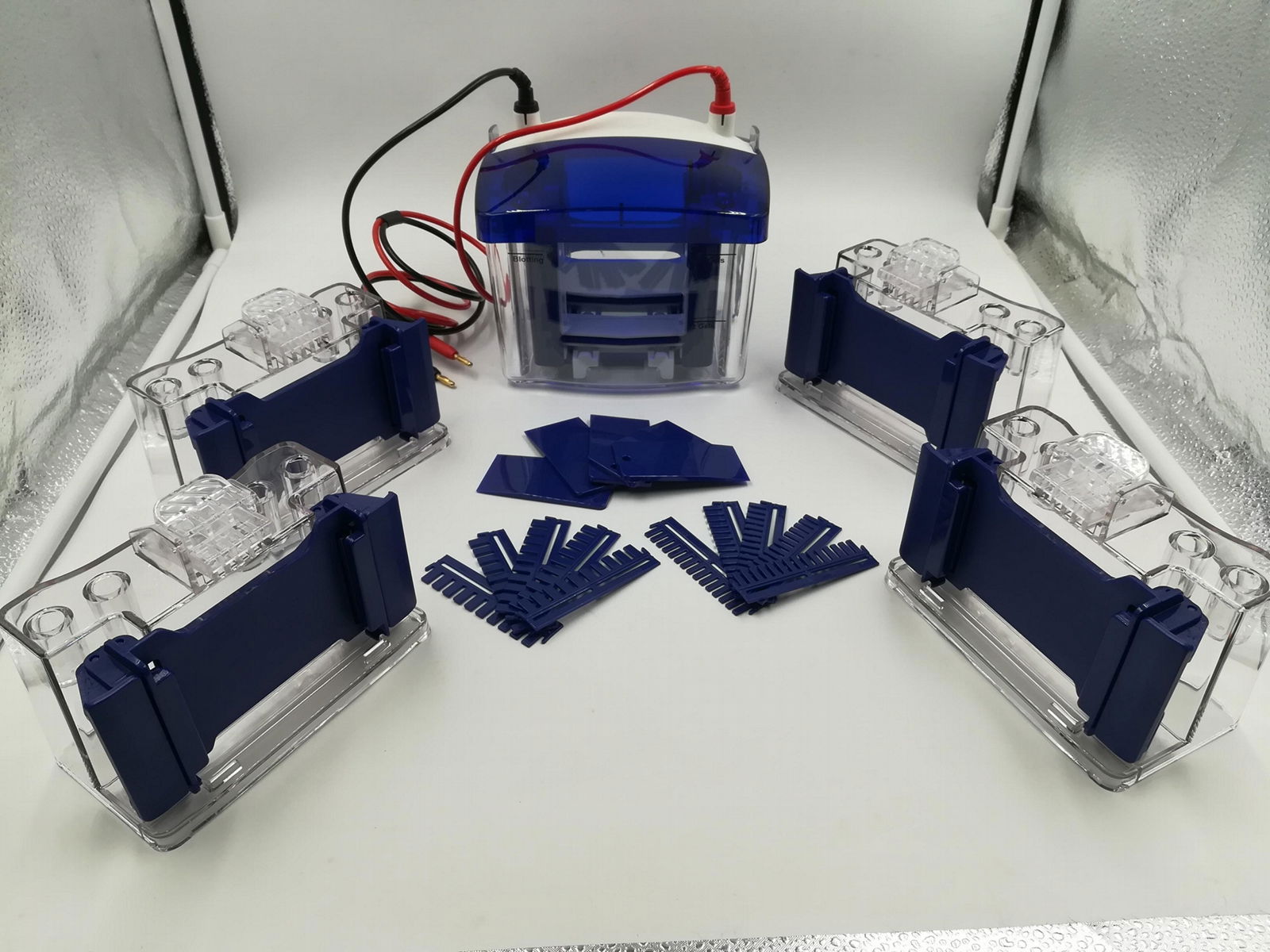

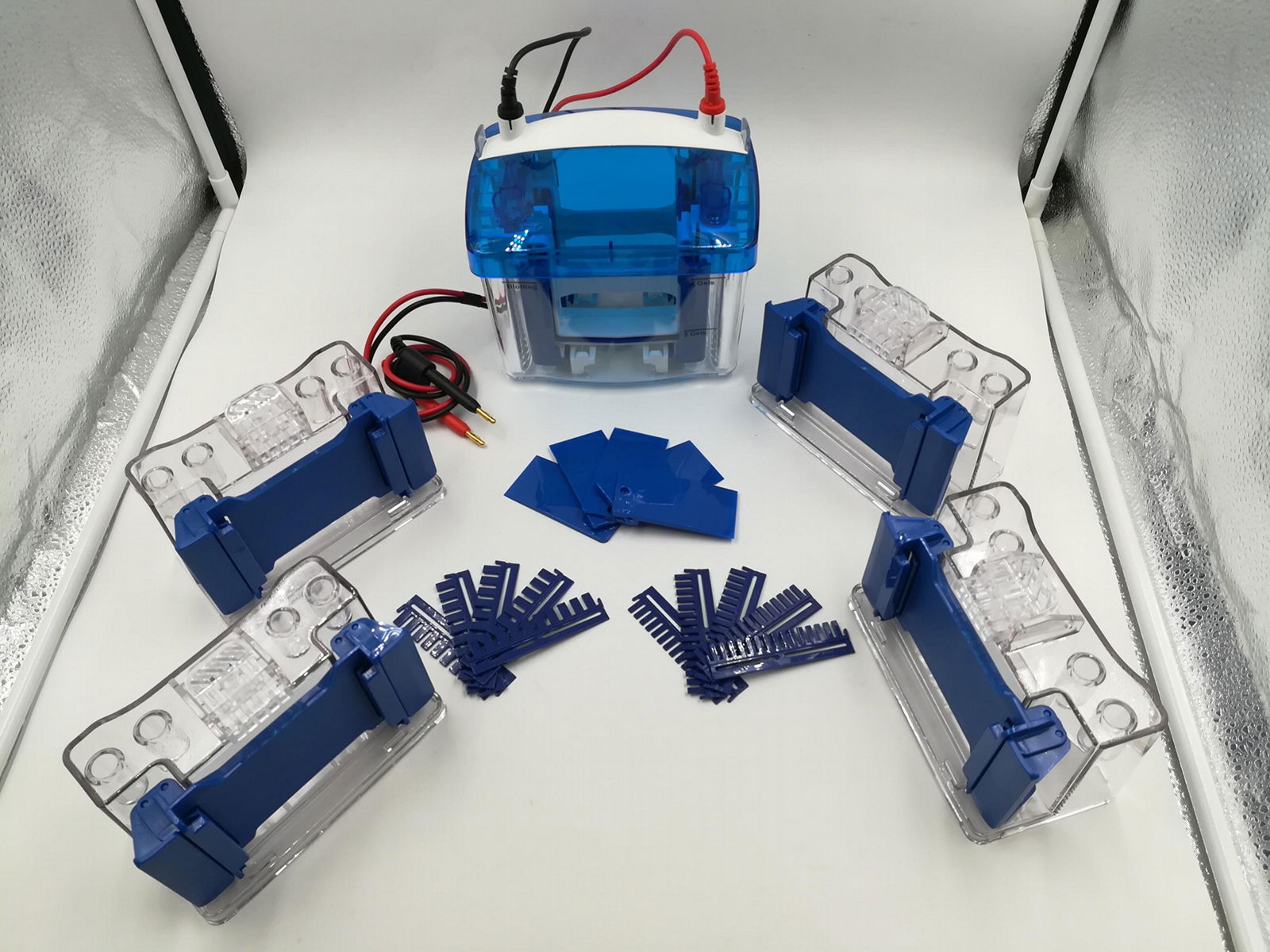

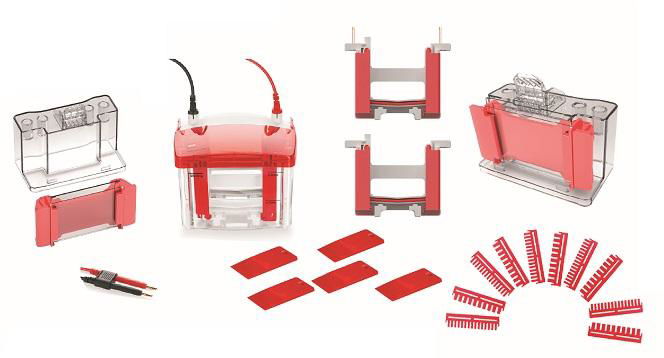

WIX-easyPRO4 Mini Easy Vertical Electrophoresis Cell
Features
◆The bottom of the gel-casting frame is supported by very
flat glass to prevent the glass plate from sliding.
◆The press-lock mechanism works better. The contrasting design clearly reflects the making process of separated gel. The press-to-lock design avoids the gel leakage caused by aging or poor function of traditional spring-pressure.
◆The design of sliding wedge of side fastener of electrophoresis core presses the short glass onto the sealing gasket tightly to avoid liquid leakage caused by traditional rotary side fastener.
◆The cam gel-making frame ensures the accurate aligning.
◆Being equipped with 4 independent gel-cast frame and casting 4 gels simultaneously.
◆Easy to read the gauged glass plate and clearly marked comb
Technical parameter
◆Gel number: 1-4 piece(s)
◆Gel thickness: 1.0mm (standard); 0.75mm and 1.5mm
◆Precast gel: compatible with PIERCE and BIO-RAD.
◆Size of glass plate: 100×83mm
◆Gel size: 83×73mm
◆Comb: 1.0mm: 10 and 15 wells (standard); 0.75mm: 10 and 15 wells; 1.5mm: 10 and 15 wells
◆Platinum electrode: φ0.25mm
◆Dimension (mm): 180×130×160 (L×W×H)
| Payment Terms: | T/T, L/C |
|---|---|
