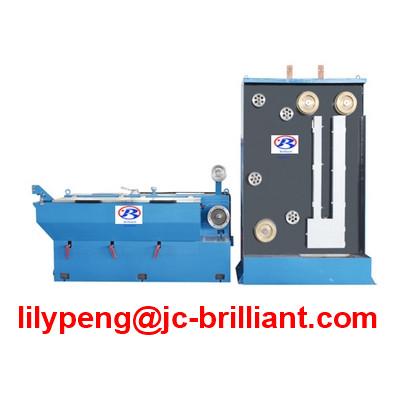

JCB-17DHT Intermediate Wire Drawing Machine with Annealing
1. Application:
This type is used for drawing and annealing copper wire and other alloy wire from 2.6-3mm to 0.4-2.0mm.
2-Parameters:
|
Machine type |
JCB-17DHT |
JCB-13DHT |
|
Control system |
PLC |
PLC |
|
Inverter control |
Two inverters control |
Two inverters control |
|
Drawing dies No./max. |
17 |
13 |
|
Inlet diameter |
Ø 2.6- 3.0mm |
Ø 2.6- 3.0mm |
|
Out diameter |
Ø0.4- 1.6mm |
Ø0.65- 1.6mm |
|
Drawing line speed /max |
2000m/min |
2000m/min |
|
Slip ratio of m/c |
20% |
20% |
|
Fix speed capstan slip ratio |
15.5% |
15.5% |
|
Frame |
Ironed cast |
Ironed cast |
|
Capstan |
Carbon fibre plasma capstan |
|
|
Main motor |
55kw |
55kw |
|
Spooler motor |
11kw |
11kw |
|
Fix speed capstan dia. |
Ø 250mm |
Ø 250mm |
