Model: | EVI Heat Pumps |
---|---|
Brand: | Leomon Technology |
Origin: | Made In China |
Category: | Consumer Electronics & Lighting / Water Heater |
Label: | Commercial Heat Pump , Low Temperature , EVI Heat Pumps |
Price: |
US $500
/ pc
|
Min. Order: | 1 pc |
Last Online:23 Mar, 2021 |
Commercial Low Temperature EVI Heat Pumps use the most advanced low temperature enhanced steam jet compressor technology. It effectively absorbs heat in the low temperature environment outside and is used in commercial hot water and industrial heating. It has excellent low temperature heating ability.
Commercial Low Temperature EVI Heat Pumps can not only meet the heating demand of -25℃ in the ultra-low temperature environment in winter, but also can be used as commercial refrigeration and air conditioning in summer up to 40℃. It is widely used in homes, villas, hotels, hotels, factories, schools, hospitals, large commercial centers, stations, airports or institutions in the northern region to replace traditional coal-fired boilers/oil-fired boilers/electric boilers. It is a comprehensive energy-saving solution for heating in winter and cooling in summer in the northern region.

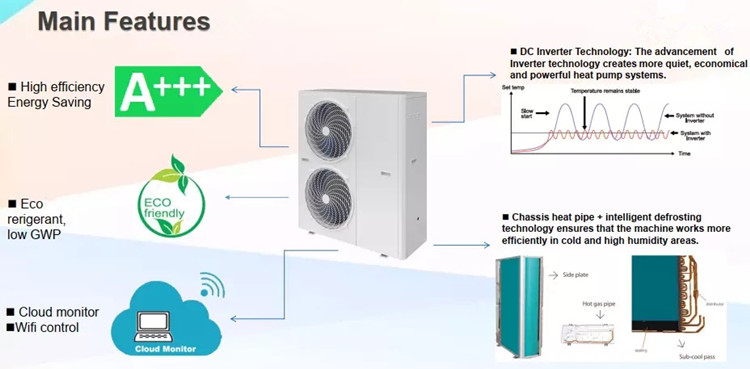

Commercial Low Temperature EVI Heat Pumps Features:
1. Heating power range: 14kW, 27kW, 41kW, 49kW and 95kW.
2. The EVI turbo compressor is specially designed for high water temperature.
3. Heat pump evaporator: internal thread copper and hydrophilic aluminum foil heat exchanger
4. Smart remote control, memory historical data for quick adjustment.
5. Copper tube with inner groove to achieve higher efficiency
6. Including automatic defrost function (with reversing valve).
7. It can be used for floor heating, fan coils, water heaters and modern radiators.
8. Water heat exchanger: Circulating heating type is shell and tube type, directly tube type. Heating model.
9. R417a or R407c refrigerant, environmental protection, no carbon dioxide emissions
Warranty:
1. CE, CB, RoHS, Conform to EN14511-2:2011 test standard, ISO9001, ISO14001.
2. 1 year warranty
3.1% spare parts are repaired free of charge.
Leomon Technology Service:
Leomon Technology provides customized services. We can design and produce Low Temperature Heat Pumps according to customers' special requirements.
Commercial Ultra Low Temperature EVI Heat Pump Specifications:
Model | LM030V2LS |
Power Supply | 220V~240V/50Hz or 60Hz/1ph |
Refrigerant | R410A |
Heating Capacity | 9.6KW |
Input Power | 2.157KW |
COP | 4.45 |
Cooling capacity | 7.9KW |
Input power of cooling | 2.688KW |
EER | 3.50 |
Rated current | 10.3A |
Fan motor power | 100W |
Fan motor quantity | 2Pcs |
Water Flow | 0.29~0.76L/s |
Water Pressure Drop | ≤20Kpa |
Net Weight | 112KG |
Gross Weight | 156KG |
Noise | 59db |
Waterproof Grade | IPX4 |
Electric Shock Proof Grade | I |
Pipe Size (internal thread) | 25MM |
Expansion Tank | 5L |
Electric Heate | 3KW |
Grundfos Inverter Pump | UPMGEO 25-85-130 |
Outdoor Unit Size(L×D×H) | 1100*490*810mm |
Indoor Unit Size(L×D×H) | 550*325*650mm |
Payment Terms: | TT / LC / DP / DA |
---|---|
