Vibration Meter AV-160A With Vibration Acceleration Velocity Displacement Tester
Product Description
The Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Product Feature
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance,misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery forquality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
Product Parameters
|
Transducer |
Piezoelectric accelerometer |
|
Accuracy |
±5%+2 digits |
|
Measurement Range |
Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil |
|
Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s |
|
|
Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g |
|
|
Frequency Range |
Displacement : 10Hz. ~ 1kHz. |
|
Velocity :10Hz. ~1kHz. |
|
|
Acceleration: 10Hz. ~ 10kHz. |
|
|
Operating Conditions |
Temperature : 0-50 ℃ |
|
Humidity : below 95% RH |
|
|
Analogue Output |
AC output 0~2.0V peak full scale (load resistance: above 10k) |
|
Power Supply |
4x1.5vAAA (UM-4) Battery |
|
Size |
140x70x30mm |
|
Weight |
130g (Not including Batteries) |
|
Standard Accessories |
Main Unit |
|
Magnetic suction seat |
|
|
Probe (cone)/Probe (spherical) |
|
|
Portable box |
|
|
Brochures |
|
|
Piezoelectric sensor |
|
|

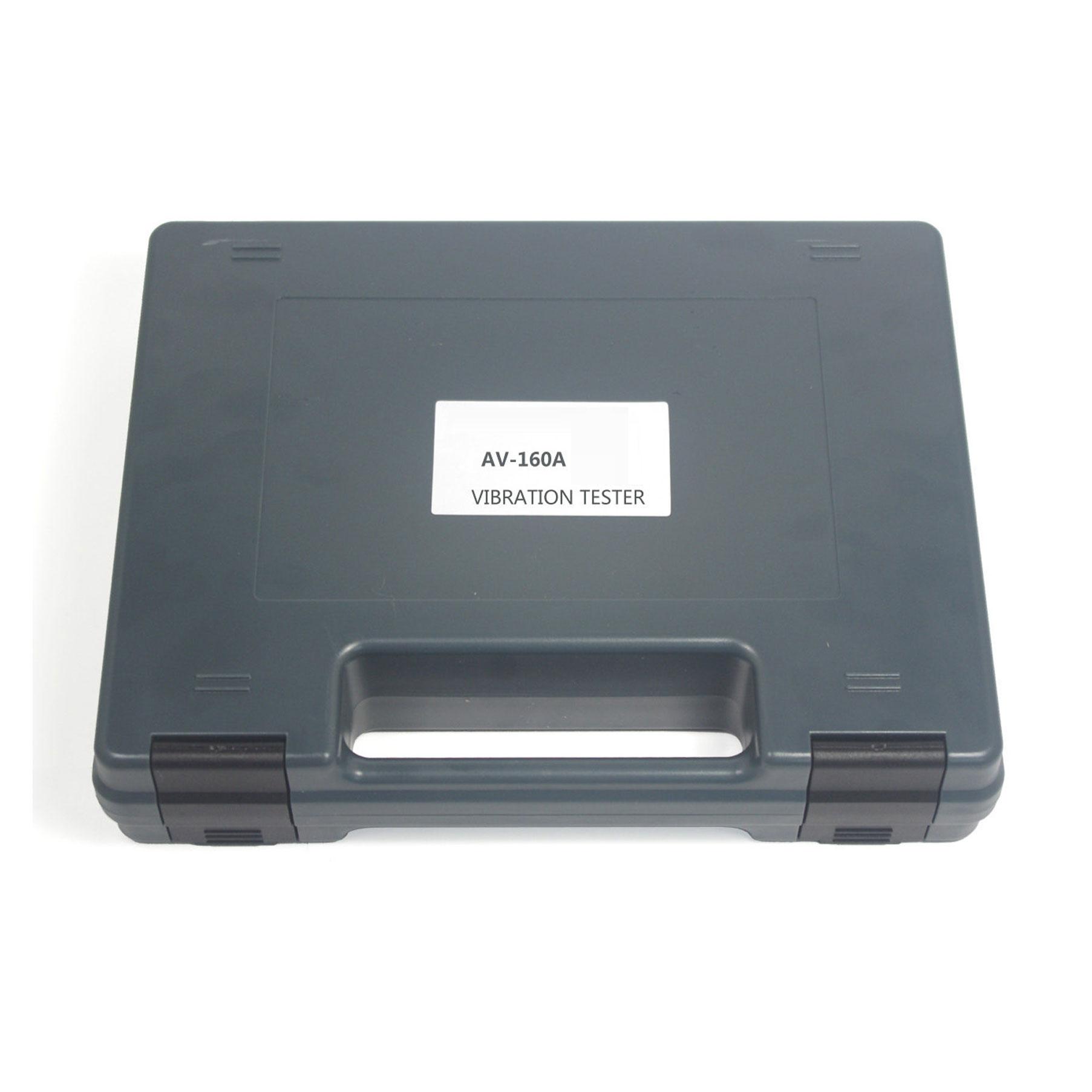

Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories
|
Headset |
|
USB data output |
|
|
Bluetooth data output |
