NAC pneumatic clutch applied in packing machine

Model:NAC-5
Brand:Handong
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:HDC friction clutch , NAC air shaft clutch , CSCP air clutch
Price: US $100 / PC
Min. Order:1 PC
Inquire Now

Member Information

Detail

Product Description

NAC pneumatic clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on, are assembling to the wheel to come into an integrated structure. Disc and friction plate are separated by return springs air pressure exhausted, clutch released. Friction plate can be parted by adjusting screwing nuts.

It is widely used in packing machine, rubber machine rollers, conveyor, elevator, handling machinery, food machinery, printing machinery, crusher, motor, tire and rubber machinery, packaging machinery, forming machinery, automatic machinery, wire machinery, sheet metal machinery, filling machinery, plywood machinery, medical machinery, stretching wire machinery, fiber machinery, metalworking machinery, pulverizing machinery, tire forming machinery, paper making machinery and etc.

Following are the detail technical data of this NAC pneumatic clutch for your reference:

Product name: NAC mode air friction plate clutch                                                                                                                Product category: Air clutch                                                                                                                                            Brand: HD                                                                                                                                                                        Model: NAC-2, NAC-5, NAC-10, NAC-20, NAC-40, NAC-60                                                                                              Weight: 2.9-50kg                                                                                                                                                        Torque: 26-590N.m                                                                                                                                                       Shaft diameter: 20-60mm                                                                                                                                             Rotating speed range: 1200-1800r/min


Product Image

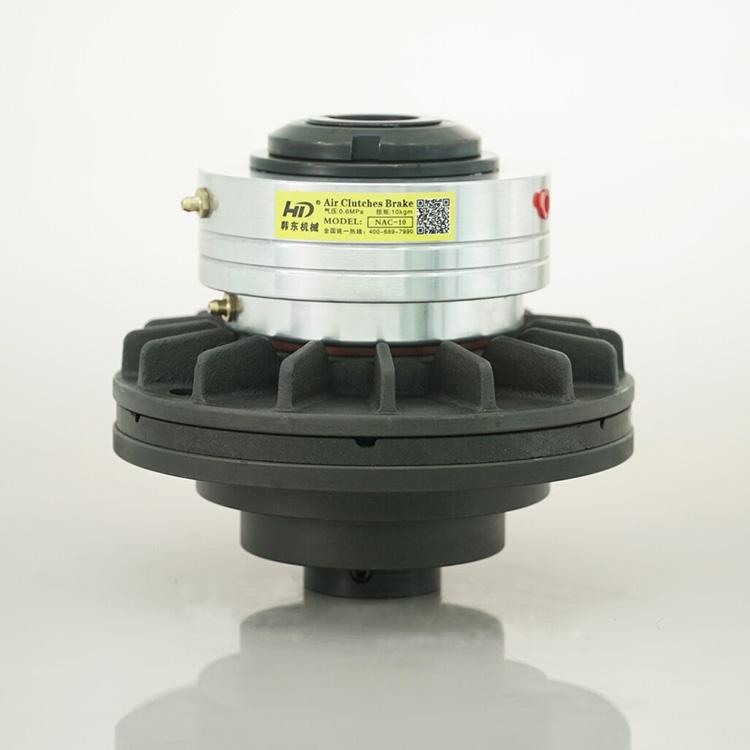

NAC pneumatic clutch applied in packing machine 1
Img 1
NAC pneumatic clutch applied in packing machine 2
Img 2
