| Model: | WTM-1100 |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument |
| Label: | Window Tint Meter , Window Tint Tester , transmittance Tester |
| Price: |
US $136
/ Piece
|
| Min. Order: | 1 Piece |
| Last Online:15 Oct, 2024 |
WTM-1100 Digital Window Tint Meter Light transmittance Tester transmittance
Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.
Features
* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
|
Model |
WTM-1100 |
WTM-1000 |
|
|
Display |
LCD |
||
|
Range |
0~100% |
||
|
Resolution |
0.1 |
||
|
Accuracy |
±2% |
||
|
Sample Thickness |
<<18 mm/0.7 inch |
<<10 mm/0.4 inch |
|
|
Light Source |
LED |
||
|
Measuring Mode |
Single / Continuous |
||
|
Operating Conditions |
Temperature:0~50ºC Humidity:,90% |
||
|
Power Supply |
4x1.5V AAA(UM-4)Battery |
||
|
Size |
Main Unit |
126x65x27 mm |
126x65x27 mm |
|
Sensor |
125x38x38 mm |
------ |
|
|
Weight |
100g (Not Including Batteries) |
||
|

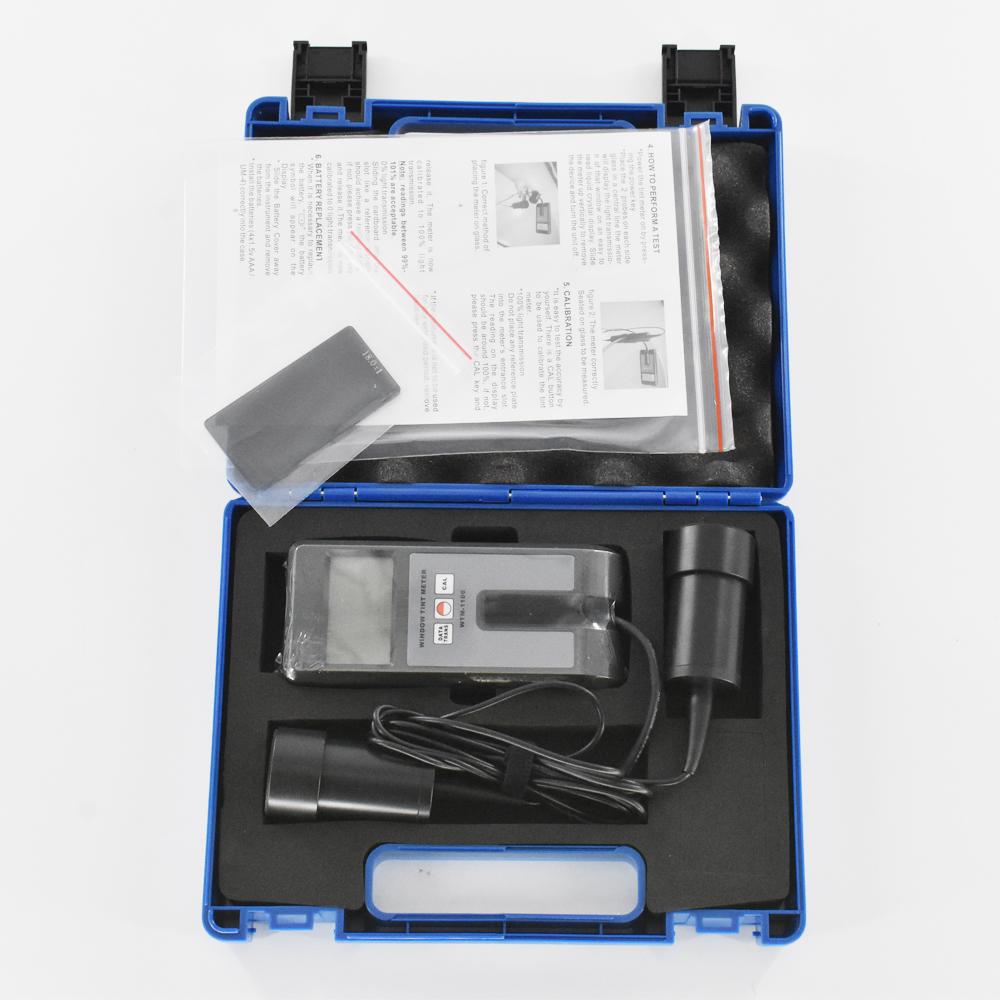

Standard Accessories |
Main Unit |
||
|
Testing Block |
|||
|
Carrying Case(B04) |
|||
|
Operation Manual |
|||
|
Opyional Accessories |
USB Data Cable with Software |
||
|
Bluetooth Data Adapter with Software |
|||
