| Model: | X20 |
|---|---|
| Brand: | Jiayuanda/OEM |
| Origin: | - |
| Category: | Textile & Leather / Textile Accessories / Lace & Purfle |
| Label: | lace welding , welding machine , ultrasonic welding |
| Price: |
US $8800
/ pc
|
| Min. Order: | 1 pc |
| Payment Terms: | TT/LC |
| Last Online:23 May, 2022 |
Ultrasonic non-woven fabric welding machine features:
1. Ultrasonic power is up to 2500W, and it has large, medium and small power adjustment functions to meet the welding and cutting requirements of different materials and thicknesses;
2. Built-in computer chip, multi-channel ultrasonic protection system to ensure safe and stable operation of the host;
3. The bottom mold rotation function makes the chassis wear evenly, prolong the service life and improve the processing quality;
4. The frequency automatic tracking system and the application of ultrasonic soft start technology, so that the performance of this machine reaches the international level.

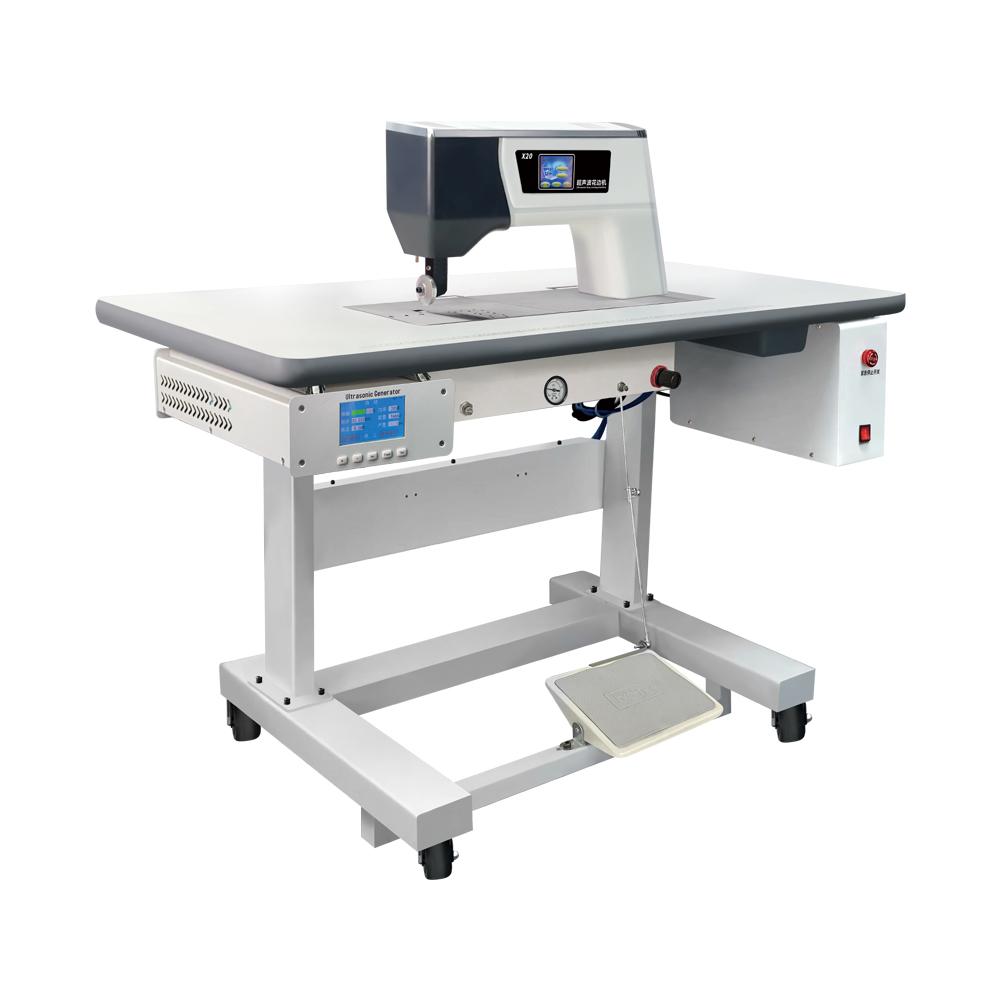

| Product name | JYDsonic Ultrasonic lace welding machine JYD-X20 |
| Ultrasonic frequency | 35Khz |
| Working power supply | 220V 240V 50/60HZ 6A |
| Ultrasonic power | 1000W |
| Working Speed | 0-40 meter/mins |
| Matching pattern | According to customer needs |
| Degree of automation | Semi-automatic |
| Weight (KG) | 90KG |
| Dimensions(L*W*H) | 1200X600X1100 mm |
