  CNC Machining Center with Auto-loading/unloading GM6-1224ATC 1
  •   CNC Machining Center with Auto-loading/unloading GM6-1224ATC 1

CNC Machining Center with Auto-loading/unloading GM6-1224ATC

Model:GM6-1224ATC
Brand:GANGER
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:CNC , Machining Center , Auto-loading/unloadi
Price: US $15800 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Jinan Ganger Cnc Technoloy Co.,Ltd

Free MemberShan Dong - China
Last Online:06 Apr, 2021

Product Description

Machine Features:

1. Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

2. Humanizing design of the machine control interface,very simple to operaterequiring only minimal training of operatordo not need specialized operationtechnical personnelhigh efficiency.
3. World's first class components--Italian high-frequency electro spindle, Taiwan SYNTECcontrol system, German servo motors and drivers, high precision planetary gear reducers, etc,stable performance and long service life.

4. The world's leading vacuum table, high adsorptioncapacity, canbe strong adsorption of materials of different sizes, density, nodeformation.
5. Truly versatile--nesting, routeing, vertical drilling, engraving,side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.



Applicable industry and material:

Applicable industry: wood furniture , panel furniture,wooden crafts processing industry, suitable for large panel cutting,large relief carving products and large carpentry engraving.

Applicable material: solid wood panel, MDF.



Technical parameters

Model

GM6-1224ATC

X/Y/Z Axis working size

1224*2440*200mm

Working table

Vacuum absorption table

X/Y/Z Axis transmission

X/Y Axis helical Gear and rack, Z Axis Ball screw

Spindle power

Italy HSD Air-cooled ATC spindle 9.0kw/12.0kw

Max spindle speed

24000rpm

Collet/Blade diameter

ISO30

ATC type and capacity

Disc type ATC, 12 tools

Driver motor

Servo motor

Control system

Taiwan SYNTEC

Gross weight

3500KGS

Remark: All machine models can be customized according to clients’ special requirement.


Product Image

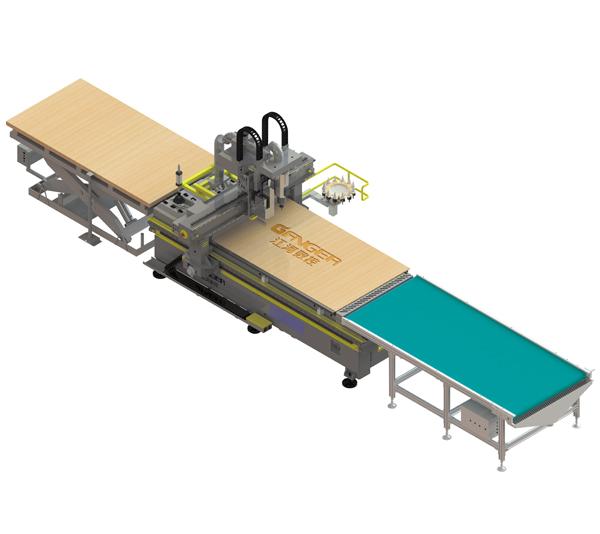

  CNC Machining Center with Auto-loading/unloading GM6-1224ATC 1
Img 1
