Hydraulic Wheelchair Lift Support Customized

Model:-
Brand:WIZ
Origin:-
Category:Transportation / Logistics / Lifting Systems
Label:Home lift , wheelchair lift , disabled home lift
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

Free MemberShan Dong - China
Last Online:21 Feb, 2023

Product Description

Vertical platform lift



The WIZ Vertical Platform Lift is a cost effective way to transport a passenger in a wheelchair, or someone who has difficulty using stairs. The WIZ vertical platform lift provides a code compliant access solution for lifting heights of up to 12m. It can be installed in homes,schools, churches, municipals buildings, nursing homes, restaurants...The WIZ vertical wheel chair platform lift with is hydraulic drive system offers a safe and reliable operation for its users.



Main model



Model

Load capacity

Lifting height

Platform size

power

Approx weight

HL0.25-1

250kg

1000mm

14300x900mm

2.2kw

350kg

HL0.25-1.5

250kg

1500mm

14300x900mm

2.2kw

450kg

HL0.25-2.0

250kg

2000mm

14300x900mm

2.2kw

560kg

HL0.25-2.5

250kg

2500mm

14300x900mm

2.2kw

700kg

HL0.25-6

250kg

6000mm

14300x900mm

2.2kw

900kg





Benefits of using a WIZ vertical platform lift

Safety configuration



1. Safety Interlock: Lock the platform when it is out of control

2.Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.

3.Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.

4.Auto-flap: Turn up after lifting

5. Platform: Anti-skid surface with checkered plate surface.

6. Duo-Security: High strength plate chain and wire rope, ensure the lift is safe for using.

7. Safety Factor: 125% Overload guarantee.

Application photos









Packing photos






Product Image

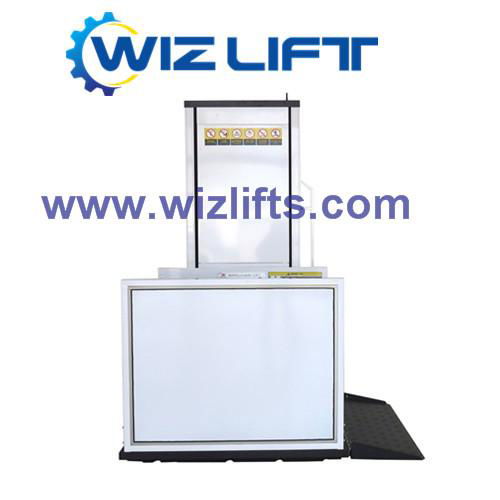

Hydraulic Wheelchair Lift Support Customized 1
Img 1

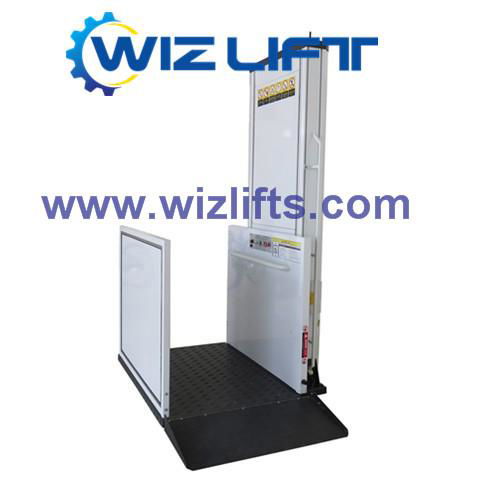

Hydraulic Wheelchair Lift Support Customized 2
Img 2
Hydraulic Wheelchair Lift Support Customized 3
Img 3
Hydraulic Wheelchair Lift Support Customized 4
Img 4
