Ceramic Foundry Beads

Model:AFS20-AFS90
Brand:Sicheng Abrasives
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products
Label:foundry , ceramic foundry sand , foundry sand
Price: US $700 / mt
Min. Order:1 mt
Inquire Now

Member Information

Detail

Product Description

Production Introduction:

Ceramic Foundry Beads

Ceramic sand (ceramsite sand)is an advanced substitute for quartz sand in the casting field. Ceramic sand is made from calcined bauxite with the main content of aluminum oxide processed by melting, blowing, sieving and blending. After melting calcined bauxite with 65-90% aluminum oxide in a high-temperature electric arc melting device, the outflow of ceramic blown into fine particles. Then after cooling and sieving, the ceramic sand become finished particles with different size grade.




Characters:

1.       Low thermal expansion coefficient

2.       High strength with good compressive strength and bending resistance ability and low broke rate.

3.       spherical shape, good flowability, easy to shakeout

4.       smooth surface, compact structure

5.       chemically neutral material

6. high-temperature resistance, good refractoriness

7.       Recycle up to 10 times, highly cost-effective.

8.       Save resin consumption with casting tech such as shell molding, Resin coated sand casting, Vacuum casting, etc.

TYPICAL CHEMICAL ANALYSIS

AL2O3

70-75%

SiO2

8-20%

Fe2O3

≤3%

TiO2

≤3.5%

CaO

≤0.45%

MgO

≤0.35%

K2O

≤0.33%

Na2O

≤0.08%



TYPICAL PHYSICAL PROPERTIES

Refractoriness

≥1800 ℃

Specific gravity:

3.4g/cm3

Bulk density(LPD):

1.95-2.05 g/cm3

Color:

black brown

Grit shape:

spherical ball

Thermal expansion coefficient

6x10-6 /℃(20-1000℃)

Thermal conductivity

0.698W/M.K(1200℃)

Thermal expansion ratio

0.13%

Angularity

≤1.1

Available sizes

AFS15-20,AFS 15-25,AFS25-35,AFS25-30,AFS30-35,AFS35-40,AFS40-45,AFS45-50,AFS40-50,AFS50-55,AFS55-60,AFS60-65,AFS60-70,AFS70-80,AFS95-110 Customized sizes are available upon request

 Applications:

1.    Shell molding

2.    Precision Casting

3.    Lost foam casting

4.    Heavy steel casting

5.    Resin coated sand casting

6.    Vacuum casting

7.    Investment casting



How to choose proper grain size for your work:



Applications

Grit Size

AFS SIZE

Foundry sand for Lost foam

8-15#(10#)10-20#,20-30#

AFS25-35

Filler sand

30#



No bake sand including furan resin /alkaline-phenolic resin molding and core making/ Pep set /Sodium-silicate bonded sand

30-50#,40-70#,50-70#,70-140#

AFS35-45,AFS25-35,AFS45-55,

AFS55-65,AFS60-70,AFS70-80

Shell molding, resin coated sand casting

50-100#,70-140#,100-200#

AFS55-65,AFS60-70,AFS70-80,

AFS95-110

Lost foam casting coating

140-270#,-200#



Molding sand alcohol-based coating

-200#



3D printing, precision casting, investment casting

-140#





Casting effect:




 Package:

ceramic sand package1



FAQ:

Q: Are you a trading company or manufacturer?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Q: Which region is your main market?

A: We have many customers from South Korea, Japan, Russia, North America. Most of those clients cooperated with us for more than 10years.


Product Image

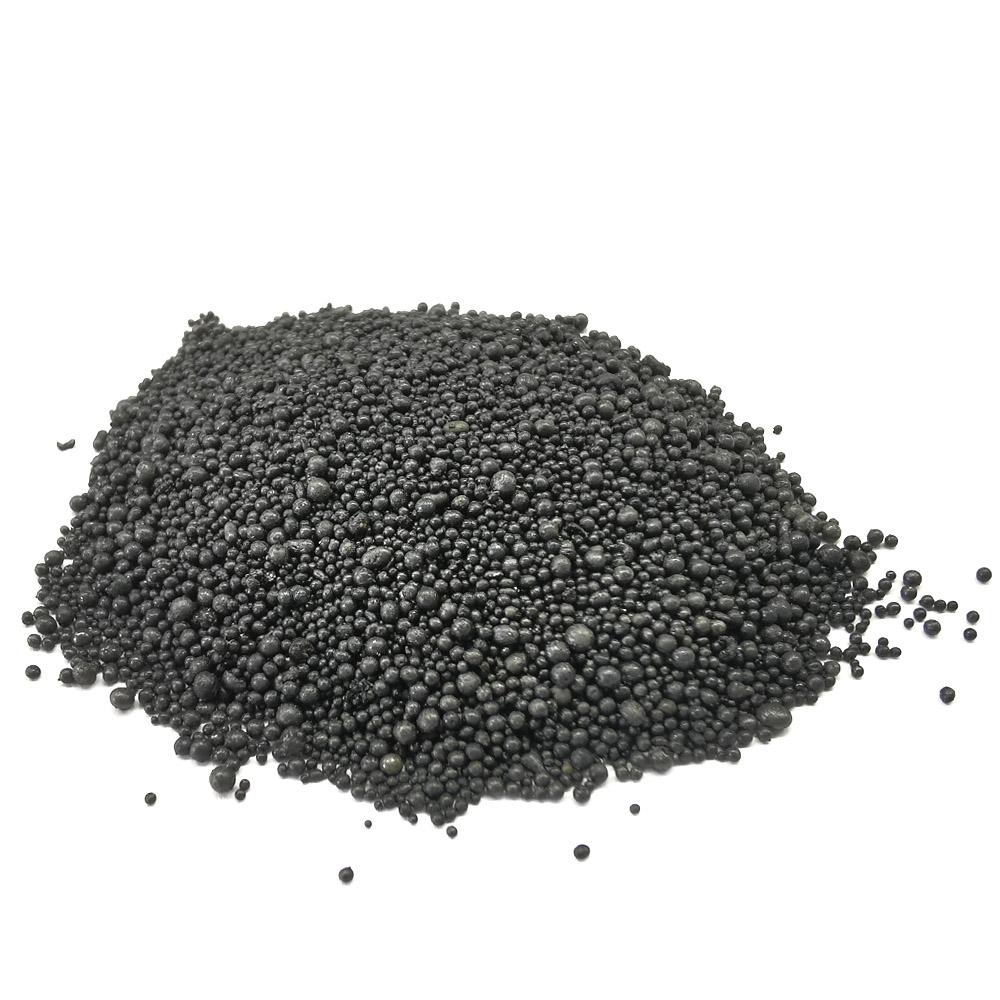

Ceramic Foundry Beads 1
Img 1

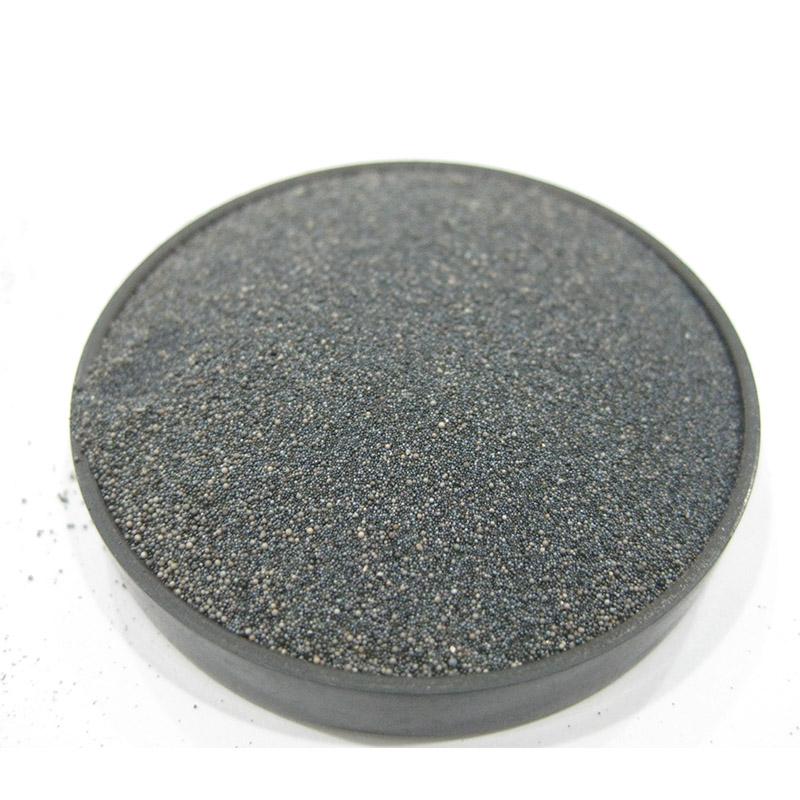

Ceramic Foundry Beads 2
