Black SiC carborundum powder

Model:F230-F1200
Brand:Sicheng
Origin:Made In China
Category:Industrial Supplies / Tools / Abrasives
Label:carborundum powder , Black SiC Powder
Price: US $1780 / MT
Min. Order:1 MT
Inquire Now

Member Information

Detail

Product Description



product description

Black SiC carborundum powder



Description:

Black Silicon carbide powder is acid pickled water separated powder with an extreme hardness after producing at high temperature in an electric resistance type furnace with quarts sand and petroleum coke.



Black Silicon Carbide is produced by a process involving the electrochemical reaction of silica(SiO2) – in the form of quartz mixed with Carbon(C) in the form of raw petroleum coke. The stoichiometric mixture is reacted in an electrical resistance furnace at a temperature up to 2500℃ to yield high-quality crystals. The process is large furnace technology with a graphite electrode in the furnace center.  The large crystals are then segregated, crushed, cleaned of magnetic impurities in high-intensity magnetic separators and classified into narrow size fractions to suit the end-use. Dedicated lines produce products for different applications. The micro powder form silicon carbide from HAIXU Abrasives is with good size distribution, high purity, and low impurities.





product feature



High hardness, retaining hardness and strength at high temperature.

High wear resistance.

Excellent thermal shock resistance with high thermal conductivity and low linear thermal expansion.

Good ability to withstand the strongest alkalis and acids.




Technical data sheet

TYPICAL CHEMICAL ANALYSIS
SiC ≥98%
SiO2 ≤1%
H2O3 ≤0.5%
Fe2O3 ≤0.3%
F.C ≤0.3%
Magnetic content ≤0.02%

TYPICAL PHYSICAL PROPERTIES
Hardness: Mohs:9.2
Melting Point: dissociated at about 2300 °C
Maximum service temperature: 1900℃
Specific Gravity: 3.2-3.45 g/cm3
Bulk density(LPD): 1.2-1.6 g/cm3(depends on the size)
Color: Black
Particle shape: Hexagonal
Modulus of Elasticity 58-65x106 psi
Coefficient of Thermal Expansion 3.9-4.5 x10-6/ ℃
Thermal Conductivity 71-130 W/MK
AVAILABLE SIZES
FEPA F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 F2000
JIS 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# 4000# 6000#8000#

D50 Sizes of black silicon carbide power:

P-microgrits sizes bonded
Grit designation Mean grain size ds50-value in μm
P240 58.2 ± 2.0
P280 52.2 ± 2.0
P320 46.2 ± 1.5
P360 40.5 ± 1.5
P400 35.0 ± 1.5
P500 30.2 ± 1.5
P600 25.8 ± 1.0
P800 21.8 ± 1.0
P1000 18.3 ± 1.0
P1200 15.3 ± 1.0
P1500 12.6 ± 1.0
P2000 10.3 ± 0.8
P2500 8.4 ± 0.5
P3000 5 .5± 0.5
P4000 4 ± 0.5
P5000 3 ± 0.4

related application

  • Ceramic products like silicon carbide ceramic seal.
  • Lapping, polishing.
  • Insulation
  • Wire sawing
  • Cutting material such as stone, silicon wafers.
  • Raw material of Knife Grinder, Whetstone, oilstone, grinding stone, honing, sharpening sticks, etc.
  • Material of Polishing wax, polishing fluid, grinding powder, grinding fluid and so on
  • Wear-resisting floor and non-slip coating such as additive for epoxy resin floors.
  • Brake linings
  • Semiconductor industry.

_20190710160103

production process

Packing and delivery

IMG20160423114306_1BC

Why choose us

Ø We are a manufacturer, which can control the cost easier than trade company also can give you answer more quickly.

Ø As a manufacturer, we know much in technique and can give you more support in technique problem

Ø  Professional and experienced service team, specialized in abrasive production, more than 10 years.

Ø Our products are complete in specifications with various of sizes

Ø We enjoy a good reputation in the customers in domestic and overseas markets.

Ø Large production capacity, short lead time of products.

Ø 24*7 online service.

Contact:

WhatsApp/Mobile:0086 13526538098

  C


Product Image

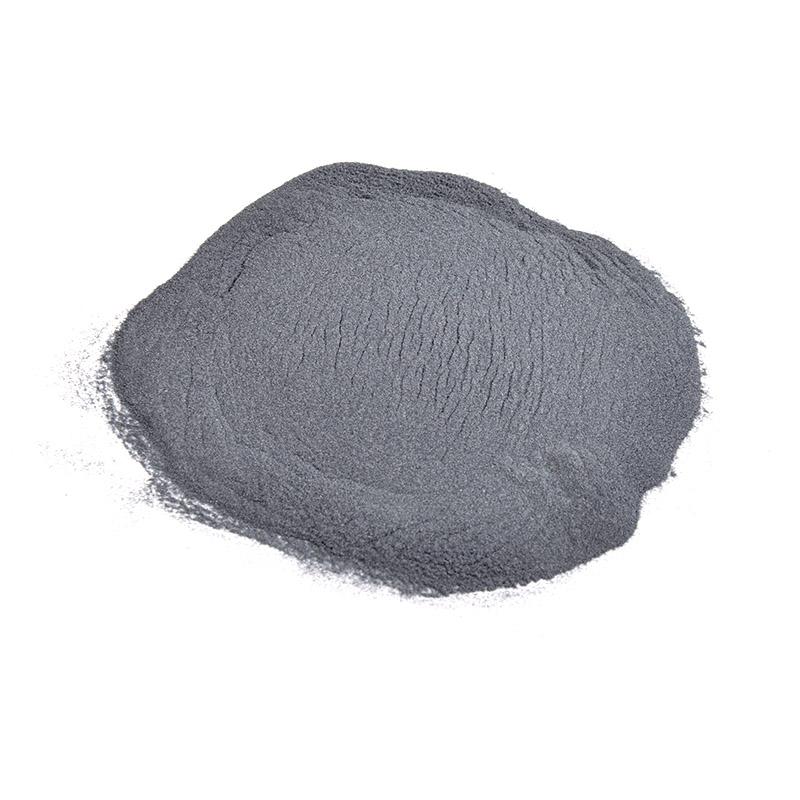

Black SiC carborundum powder 1
Img 1

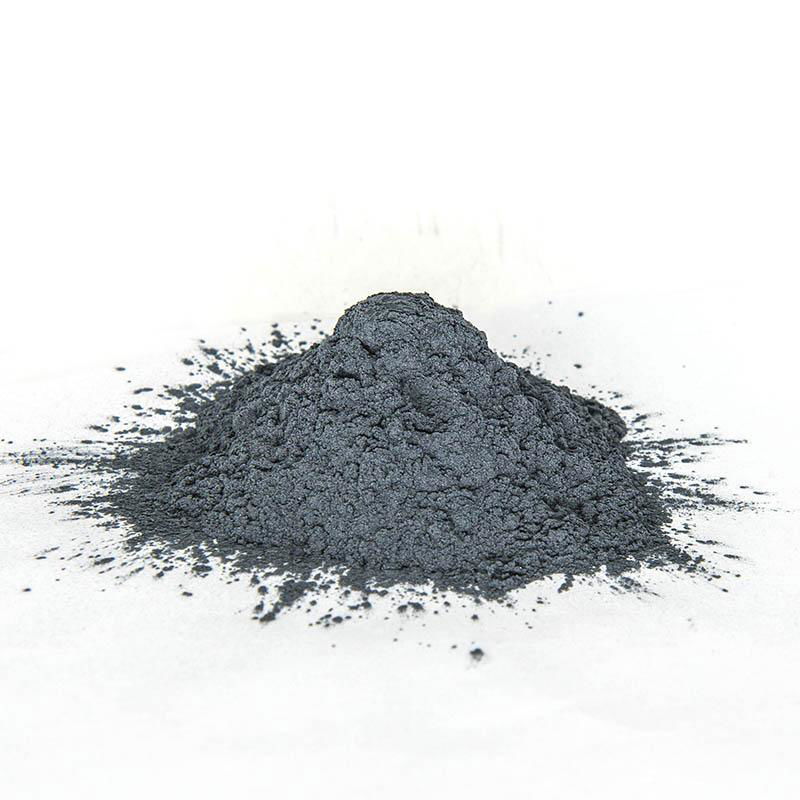

Black SiC carborundum powder 2
Img 2

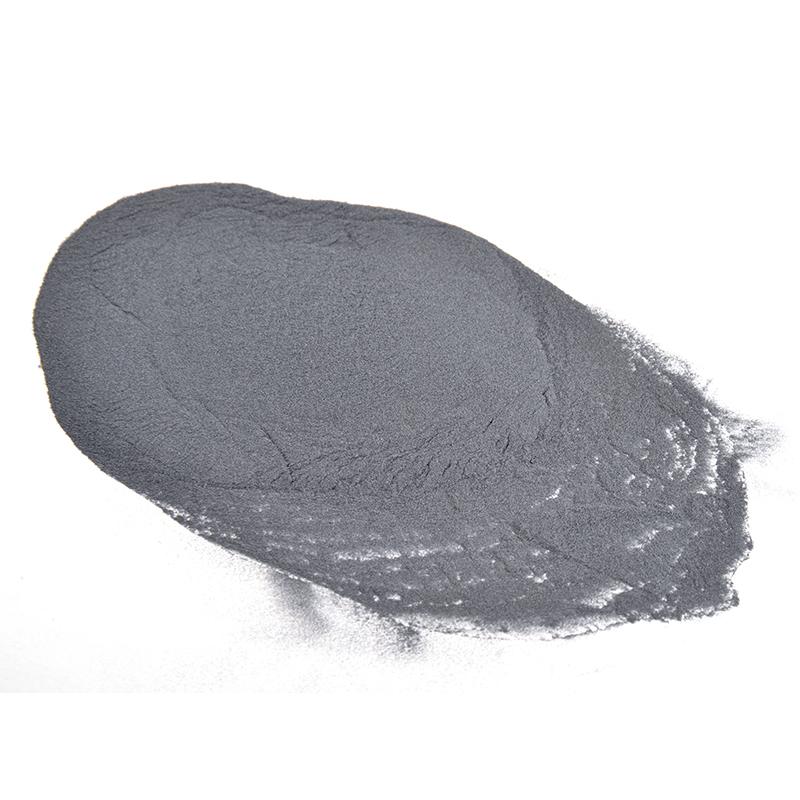

Black SiC carborundum powder 3
Img 3

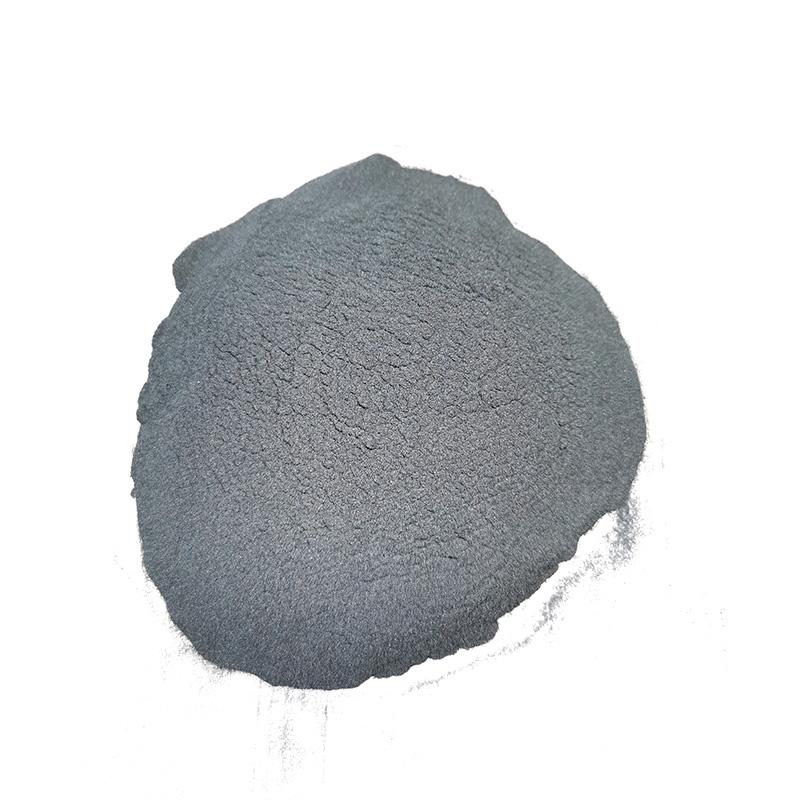

Black SiC carborundum powder 4
