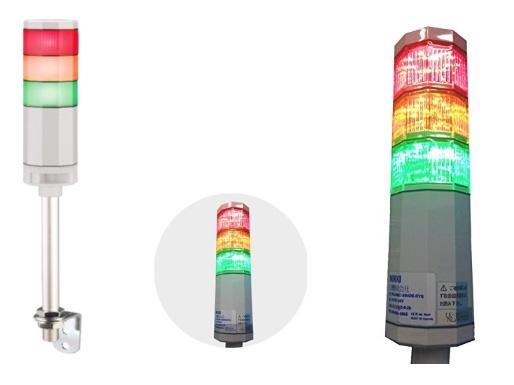

Mechanical LED lighting, NLA50 series lighting, Japan NIKKI warning light
Feature
Use red, yellow, green, blue and white multi-layered LED warning light device; it has the advantages of bright, light, low price, and low power consumption.
Using a constant current drive method, even if the input voltage changes, the brightness of the lamp can be maintained, and the life of the LED can be increased.
The independently developed protection circuit design has a protective effect against sudden surges and unstable currents or instantaneous power failures when the power is turned on.
Be applicable
Semiconductor machines, machine tools, automatic control machines, lane entrances and exits, parking lots.
specification
| Life expectancy | Ambient temperature 25℃ 60,000 hours
※Life expectancy is when the initial illuminance is reduced to 70% |
|---|---|
| Operating temperature-10℃～40℃ (referring to the condition of not freezing)
Protection level IP53 |
|
| Material quality | Body: Nylon |
| Standard wiringPlastic base 800 mm (UL1007×AWG22)
L-shaped base 750 mm (UL1007×AWG22) Metal base 850 mm (UL1007×AWG22) |
|
| Certification |     |
| List of standard models | |||
| model | power supply | colour | Power consumption |
| NLA50 | AC/DC24V | R (red) 1W
AC100～240V Y (yellow) 1W G (green) 0.4W B (green) 0.5W W (white) 0.4W |
|
| Economical | |||
| model | power supply | colour | Power consumption |
| NLA50 | DC24V | R (red) Y (yellow) G (green) | 2.4W |
| Economical | ※3 layers fixed | ||
Features of mechanical LED lighting
Exclusive decagonal lampshade design, and through the internal curved mirror surface, the lampshade emits light all over, making it easier to identify.
Miniaturized design saves space.
The position of the lighting indicator can be changed by the tilt angle of the main body.
There is also a diffusion style. The built-in reflective surface of the light cover can refract light through the light cover, and each layer can emit light evenly.
The body uses nylon, which has the advantages of heat resistance and oil resistance.
The LED modules can be changed freely, and the light layers of various colors can be replaced according to customer needs.
The resonance design of the buzzer increases the volume up to 85 decibels (measured at one meter), which can be used even in noisy factories.
Has obtained CE/FCC/PSE certification. Pass vibration test, insulation resistance test, and other tests.
It can be open-loop corresponding and directly controlled by PLC.
| Model selection method | ||||||||
| model | power supply | Number of layers | Base | Body color | Flashing buzzer color shell | |||
| NLA50 | DC=AC/DC 24V | 1 | B1=Plastic base (angle can be adjusted) | D=grey | No mark = no flicker | No mark = no sound | R =red | Opaque = transparent |
| 2 | B2=L-shaped base | Y =Yellow | ||||||
| AC=AC100～240V (please use single-phase AC power) | 3 | B3=Metal base (reversible) | S=flashing | Z=beep | G =green | S=Milky white | ||
| 4 | B4=Metal base | B =green | ||||||
| 5 | W =white | |||||||
| Model selection method (economical type) | |||||||
| model | power supply | Number of layers | Base | Body color | buzzer | colour | shell |
| NLA50 | DC=AC/DC 24V | 3=number of layers | B1=Resin pedestal | D=grey | No mark = no sound | A=red/yellow/green | Opaque = transparent |
| B2=L-shaped base | Z=beep | ||||||
| B3=Metal base (reversible) | |||||||
| B4=Metal base |
|
||||||
