Ultra-high-speed, high-precision solutions for general metering, semiconductor, microelectronics and SMT industries
  1. Faster-the detection speed is in seconds, not hours

Unparalleled speed to complete geometric measurement inspection, inspection time far exceeds traditional three-coordinates

Greatly improve the overall engineering resource efficiency of the enterprise and reduce labor costs

2. Friendly operation interface

Simple and intuitive operation process, with touch screen to make use more convenient

Even complex workpieces can be programmed quickly

Achieve AOI, SPI, AOM, CMM multi-function program integration

3. Measuring accuracy

Achieve measurement accuracy through MRS (multiple reflection elimination) technology

For geometric metrology, semiconductor, microelectronics and SMT industries, realize mass programming measurement and maintain extremely high repeat accuracy

The limit of SQ3000 TM speed and accuracy

Multiple reflection cancellation (MRS) sensor technology

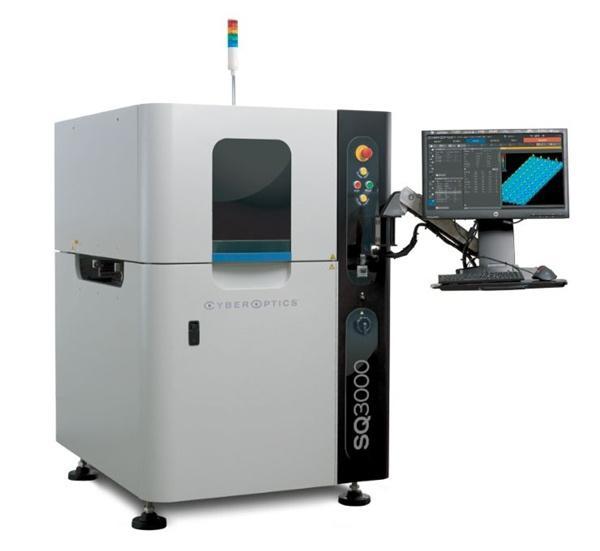

SQ3000TM uses the breakthrough 3D sensing technology of CyberOptics, the parent company of Laser Design (LDI). With 4 three-dimensional sensors arranged around the parallel light source, measurement accuracy can be obtained on the production line.

* Fusion of ultra-high precision and repeatability

CyberOptics' unique sensor architecture can simultaneously realize the information acquisition, transmission and 3D fusion of parts images. So as to obtain super high-quality three-dimensional data and complete high-speed inspection.

Intuitive and easy-to-operate software interface

SQ3000TM software is a simple, intuitive interface but powerful testing software. There is no need for long-term operation training, which greatly reduces the workload of operators, thereby saving customers time and costs. SQ3000 software includes touch screen control and three-dimensional image visualization module, which raises the quick operation ability to a new level.

Multiple reflection cancellation (MRS) technology

SQ3000TM 3D CMM uses revolutionary MRS technology to obtain unparalleled accuracy. MRS technology can accurately identify and eliminate invalid reflections generated by bright parts. Effectively eliminating the distortion caused by multiple reflections is a decisive condition for accurate height measurement. This ability makes MRS technology the best solution to meet high-precision testing needs

CyberOptics has further improved the resolution of the patented MRS sensor. The higher resolution MRS sensor greatly increases the application range of SQ3000 3D CMM and improves its performance in the inspection of mechanical parts. The speed, accuracy and degree of automation of SQ3000 3D CMM solve the bottleneck of QA equipment in the reliability and repeatability of testing.

AI2-faster, smarter programming

AI2 (Automatic Image Analysis) technology makes all processes simple-no need to adjust parameters or change algorithms. There is also no need to find out the defective products or pre-defined product differences in advance-these tasks will be done by the AI ​​for you

With the help of AI2 technology, you will be able to complete the detection of almost all features, and be able to identify the types of product defects to the highest degree. AI2 only needs one test to provide *recognition capability. It provides a solution for defect detection of multi-features and large-area workpieces.

In seconds, not hours-shorter inspection time and higher accuracy Geometric Metrology Inspection Kit (CMM)

The CyberCMMTM module is a software suite that realizes all-round metrology and testing. Compared with traditional three-coordinates, it can provide full range, high-precision, and 100% measurement-level measurement functions for extreme feature points. The kit has traditional caliper measurement, distance, height and reference setting functions. Fast and convenient operation settings greatly reduce the programming time of complex workpieces,

The speed is far beyond the traditional trigger type or contact type coordinate measuring machine.

High speed and high precision, higher stability and repeatability. Suitable for CNC machining products, stamping parts, injection molding parts, 3D printing and

Fast, highly scalable SPC statistical analysis solution

The CyberReportTM module provides SPC analysis capabilities from a stand-alone system to a factory level, with powerful historical data analysis functions and professional reporting tools. Through comprehensive data tracking, the production process can be checked and the yield can be greatly improved. The setting of CyberReportTM is simple and convenient to operate, and it can quickly provide data analysis tables through a compact and small database.

Performance parameter

MRS sensor

Ultra high resolution MRS sensor

Detection speed

40 cm2/sec (2D+3D)

20 cm2/sec (2D+ 3D)

XY resolution

10 μm

7 μm

Z resolution

1μm.

1 μm

*Load bearing

SQ3000: 3kg (5kg optional), SQ3000-X: 10kg

Minimum size of workpiece

10 μm

7 μm

Minimum height of workpiece

2 μm

2 μm

Workpiece * size

SQ3000: 510x 510 mm (20 x 20in.), SQ3000-X: 710x610mm(27.9x24in.)

Workpiece*height

24mm

24mm

XY R&R repeatability

<3μm1sigma

<2μm1sigma

Z R&R repeatability

<2μm1sigma

<2μm1sigma

XY accuracy

3 μm

2 μm

Z accuracy

2 um

2 μm

Working height

50 mm

50 mm

Thickness of transport plate

0.3 to 5 mm (10 mm optional)

Geometry detection function

Straight line/distance/X,Y/center line. Intersection point/Z reference translation. X,Y reference/X,Y*fitting offset,
X,Y offset/value extraction/location extraction/X,Y list output. Z value/relative height/least square method plane/radius, coplanarity/plane distance/*fitting plane/face difference/*value/position Degree/VC.*value/minimum
Average value/standard deviation value/addition calculation/subtraction calculation/multiplication calculation

Visual system & technical features

Image acquisition

Multiple 3D sensors in parallel

*Resolution

Less than 10 μm

7 μm

Image Processing

Self-developed image recognition (AI2) technology, face difference and pin 3D measurement technology

Programming time

<15 minutes (after the library file is created)

CAD reading

Any text file with X, Y coordinates, angle, part number and other specified information, which is generated by CAD or created manually

System specifications

Connection method

SMEMA, RS232 and Ethernet

Power supply range

100-120V or 220-240V, 50/60 hz, *10A.

Dimensions

110x 127x 139cm (width x length x height)

Self-respect

≈965 kg (2127 Ilbs.)

Options

Barcode reading. Offline programming workstation. SPC statistical analysis
