| Model: | BT100FC |
|---|---|
| Brand: | CHUANGRUI |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Pumps Vacuum Equipment |
| Label: | peristaltic pump , touch peristaltic , screen and button |
| Price: |
US $700
/ pc
|
| Min. Order: | 1 pc |
| Last Online:08 Jul, 2021 |
Overview
Quick Details
Warranty:1 year
Customized support:OEM, ODM, OBM
Brand Name:Chuangrui
Model Number:BT600FC
Place of Origin:Hebei, China
Application:Food and Beverage Industry, Pharmaceutical industry, Wastewater Transport and Flood Control, Water Treatment Solutions
Horsepower:Other
Power Source:Electric
Pressure:Low Pressure
Structure:filling peristaltic pump
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:AC220V or AC110V
Power:<50W
Certification:ce, TUV
Theory:Peristaltic pump
Drive:BT600FC
Pump head:YZ1515x
Rotating speed:0.1~600rpm, reversible
Display:LCD displays
Control method:Touch Screen+button
Power supply:AC220V or AC110V
MOQ:1 Set
Packaging & Delivery
Selling Units:
Single item
Single package size:
37X26X36 cm
Single gross weight:
8.000 kg
Package Type:
1.1 set of physiological saline filling peristaltic pump/carton 2.Carton with plastic foam, make sure the physiological saline filling peristaltic pump is safe during shipping.
Lead Time:
| Quantity(Sets) | 1 - 3 | >3 |
| Est. Time(days) | 7 | To be negotiated |
Product Description

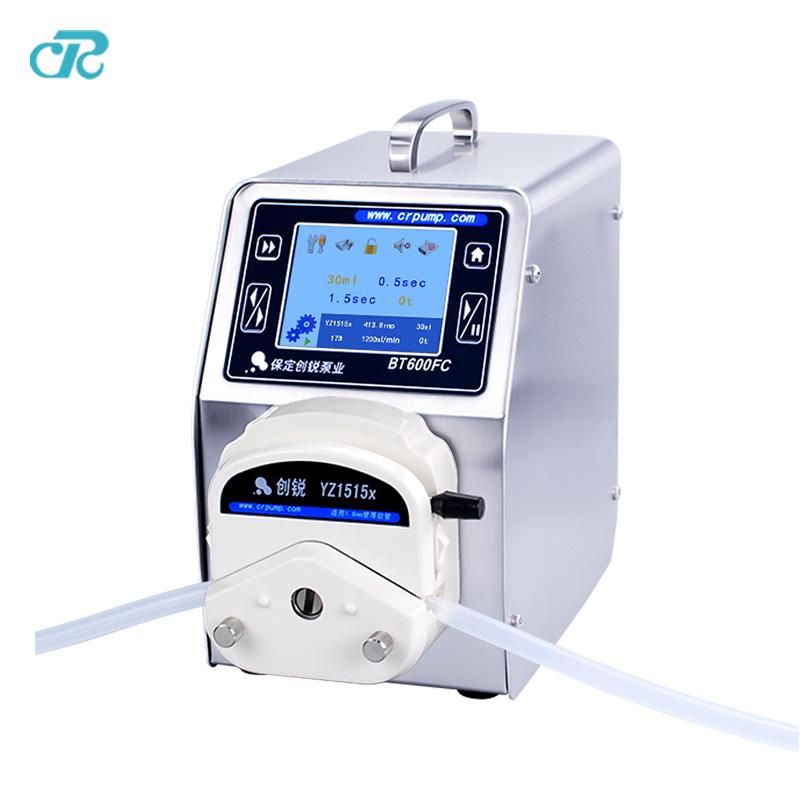

Model: BT600FC/YZ1515x
Speed range: 0.1-600 rpm Flow range : 0.007-2280 ml/min Max Number of Channel: 2 Power supply: AC 110V or AC 220V Ideal lab scale vials filling pump
With touch screen setting
With Calibration function to ensure the precise
Support foot pedal Control
Support hand dispenser
CE certified product based on request.
| Parameter Model : BT600FC/YZ1515x
Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program. |
|
|
Speed |
0.1-600rpm |
|
Speed resolution |
0.1rpm |
|
Flow rate |
0.007-2280ml/min |
|
Filling volume range |
0.1ml-9999L |
|
Filling time range |
0.1s~9999min |
|
Pause time range |
0.1s~9999min |
|
Copy number |
0-9999 t |
|
Power supply |
AC220V±10%(standard) or AC110V±10%(optional) |
|
External control |
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional ) |
|
Communication interface |
RS232 and RS485, support MODBUS protocol mode |
|
Foot pedal |
Yes |
| Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance. |
||||
|
Tube model |
ID(mm) |
OD(mm) |
Standard material |
Flow range (ml/min) |
|
18# |
7.9 |
11.1 |
Silicon tube |
0.38-2280 |
|
17# |
6.4 |
9.6 |
Silicon tube |
0.29-1740 |
|
25# |
4.8 |
8 |
Silicon tube |
0.17-1020 |
|
16# |
3.2 |
6.4 |
Silicon tube |
0.082-492 |
|
19# |
2.4 |
5.6 |
Silicon tube |
0.051-306 |
|
14# |
1.6 |
4.8 |
Silicon tube |
0.027-162 |
|
13# |
0.8 |
4 |
Silicon tube |
0.007-42 |
