| Model: | AZ8905 |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Temp. & RH , Anemometer , Wind Speed meter |
| Price: |
US $265
/ Piece
|
| Min. Order: | 1 Piece |
| Last Online:15 Oct, 2024 |
Features

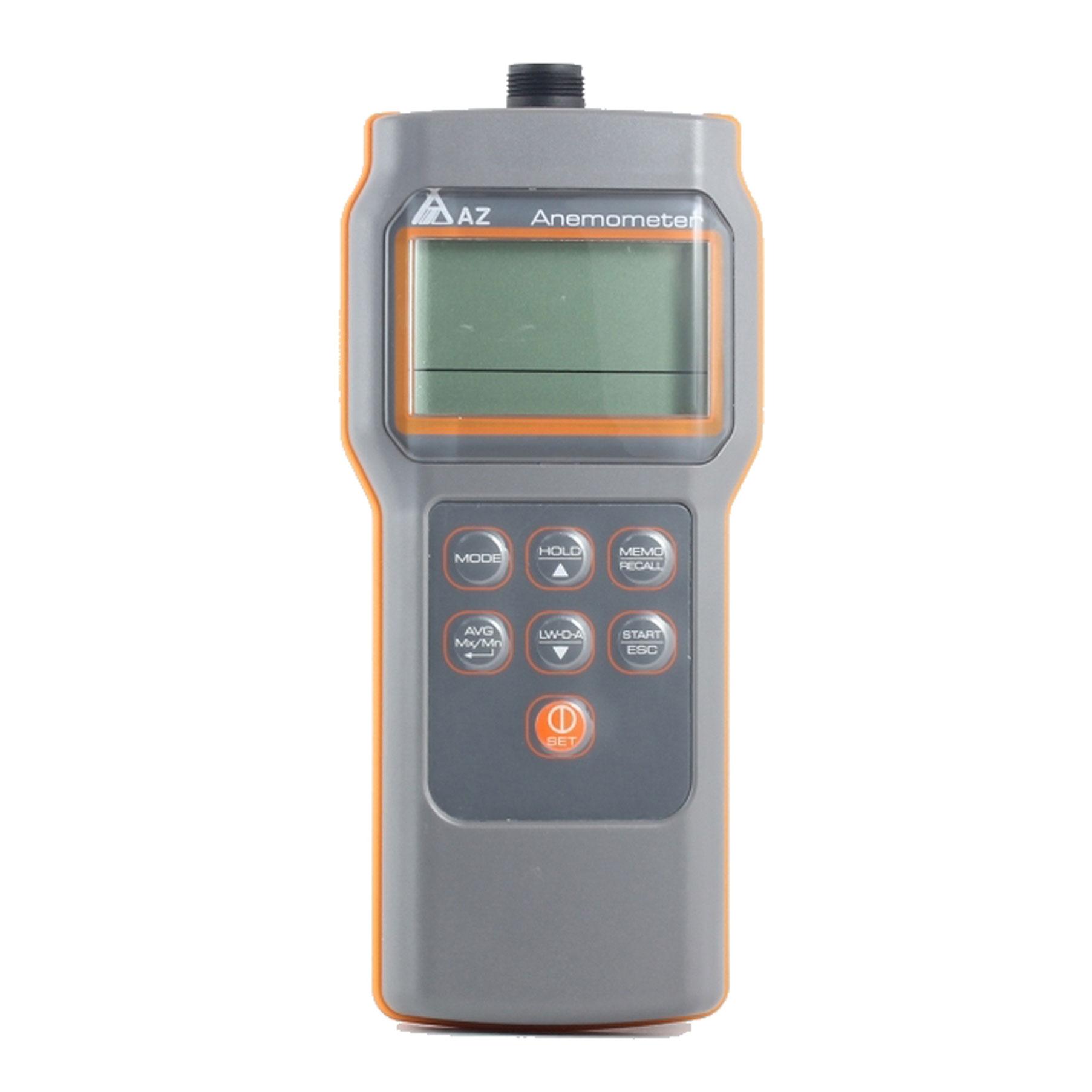

AZ 8905 Mini Vane Wind Speed Air Flow Meter features:
* Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature
* 18 mm mini vane probe with built-in temp. & humidity sensor
* 18 mm vane head with 1M long telescopic & scale marked tube
* Plug & lock mini vane probe connector
* Wind speed metric and imperial units selectable
* 99 single point memories
* Up to 12000 points auto data logging points
* Date & Time stamp (12-hour or 24-hour)
* Max. / Min. / Avg. value, Hold function
* Auto power off in 20 mins inactivity
* Low battery indicator
* Backlight for dark area operation
* PC interface for data download
* Handheld size, easy to carry
* Fast response & Accurate reading
* Hold function freezes current readings
* Powered by 6 AAA batteries or 9VDC adaptor
* Excellent tool as the wind meter
Application
Application of 8905 AZ Air flow Measuring Devices:
The portable8905 AZ Wind Meter Anemometercan measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity, dew point and wet bulb temperature,
which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related
application.
The temperature and humidity sensors of8905 AZ Thermal Anemometerare built in the external 18 mm mini, which could measure the low speed/velocity
wind with high accuracy.
The 8905 Hygrometer Anemometerhas the 1055 mm extended van probe, which can insert to the high duct easily. The compact mini impeller is ideally
designed for duct airflow. Duct temperature has no influence on airflow wind measurement.
The 8905 AZ Air Velocity MeterThis anemometer is a micro processor based design. A must device for HVAC engineers use. No need to whirl the meter
or refer to the chart, easy to get wet bulb & dew point quickly!
Specification
Specification of 8905 Air Flow Anemometer:
|
Model |
8905 |
|
Wind Speed Range |
0.5~20 m/s |
|
Wind Speed Accuracy |
±(3% of reading+0.2 m/s) |
|
Air Temperature Range |
-20~60℃ |
|
Air Temperature Resolution |
0.1℃, 0.1℉ |
|
Air Temperature Accuracy |
±0.6℃ |
|
Air RH% Range |
0.1%~99.9%RH |
|
Air RH% Resolution |
0.1%RH |
|
Air RH% Accuracy |
±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
|
Temperature Response Time |
60 seconds (typical) |
|
Air RH% Response Time |
60 seconds (typical) |
|
LCD Update |
Every second |
|
Wet Bulb Temp. Display |
-20~59.9℃ |
|
Dew Point Temp. Display |
-20~59.9℃ |
|
Air Volume Display |
0~99999 m3/minute |
|
Air Volume Resolution |
0.1 (0~9999.9) or 1 (10000~99999) |
|
LCD Size |
54(L) * 32.5(W) mm |
|
Operating Temperature |
0~50℃ |
|
Operating RH% |
Humidity ＜80% |
|
Storage Temperature |
-10~50℃ |
|
Storage RH% |
Humidity ＜90% |
|
Meter Size |
169(L) * 78.3(W)* 34.4(H) mm |
|
Weight |
~200g |
|
Battery |
AAA*6 PCS or 9V DC Adaptor |
|
Optional Accessory |
Replacement Vane Probe |
|

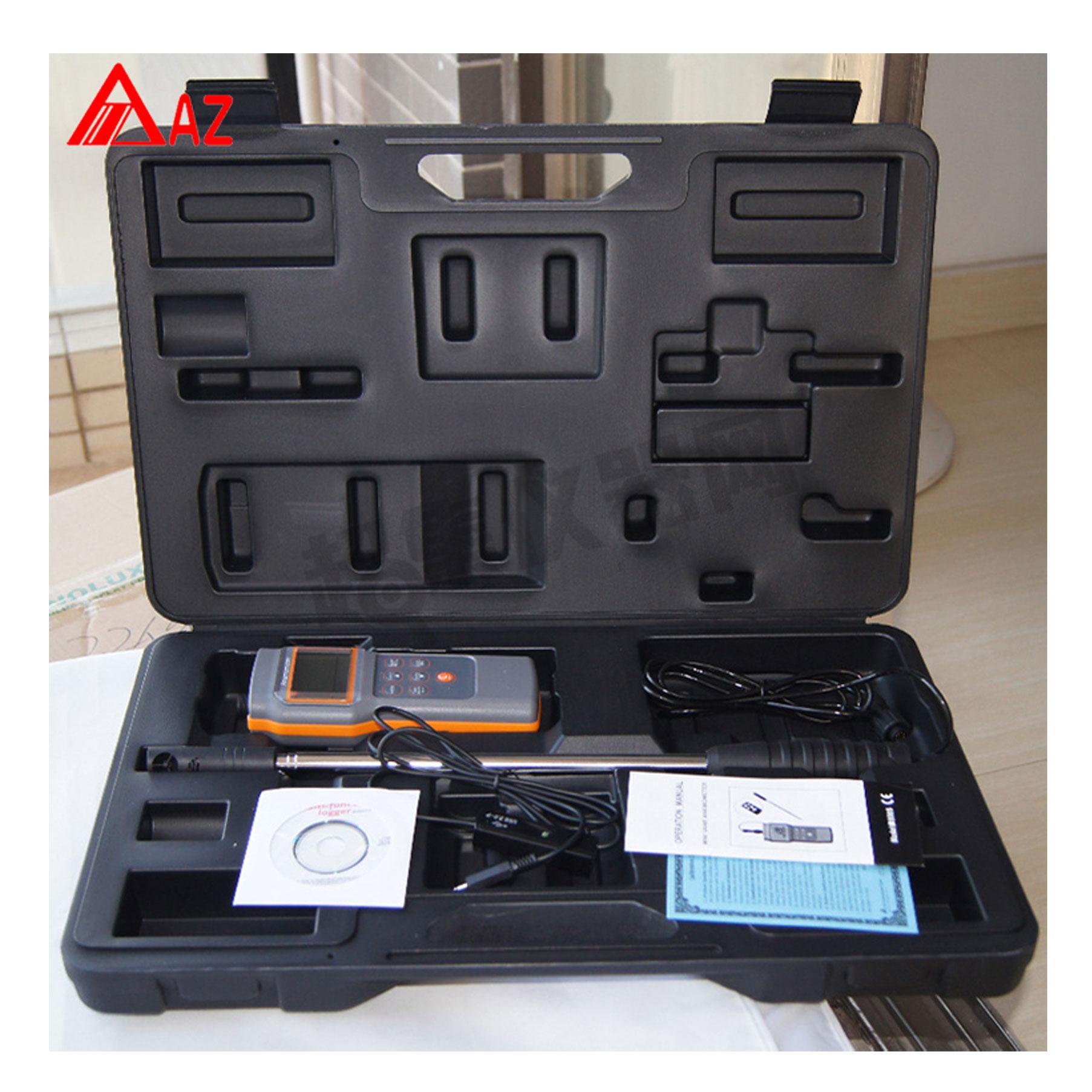

Standard Package |
Meter, Wind Probe, Batteries, Manual,
|
