EB650 Spring Driven Hose Reel for Industry

Model:EB650SR12L
Brand:Ebenalp
Origin:Made In China
Category:Industrial Supplies / Farm Machines Tools
Label:Ebenalp Hose Reel , Hose Reel , Cable Reel
Price: US $530 / pc
Min. Order:20 pc
Inquire Now

Product Description

EB650 Spring Drive Hose Reel for Industry



Description

EB650 Spring Driven Self-return Hose Reel: Spring Diven Hose Reel is the principle of mechanical energy storage through the reel spring installed in the barrel body, to achieve automatic rewinding, without other control components, is currently the most widely used, the most economical way of mechanical drive rewinding. The working length of the hose or cable can be locked by the ratchet pawl on the reel, which makes the operation very safe and convenient. Reel design with side support and double support structure, out of the tube infinitely adjustable direction.



Coil material optional: carbon steel + galvanized + surface spraying, carbon steel spraying + 304 stainless steel runner, SUS304 stainless steel, 316L stainless steel; other materials to accept customization; color: blue, red, military green (other colors can be selected)



Specification

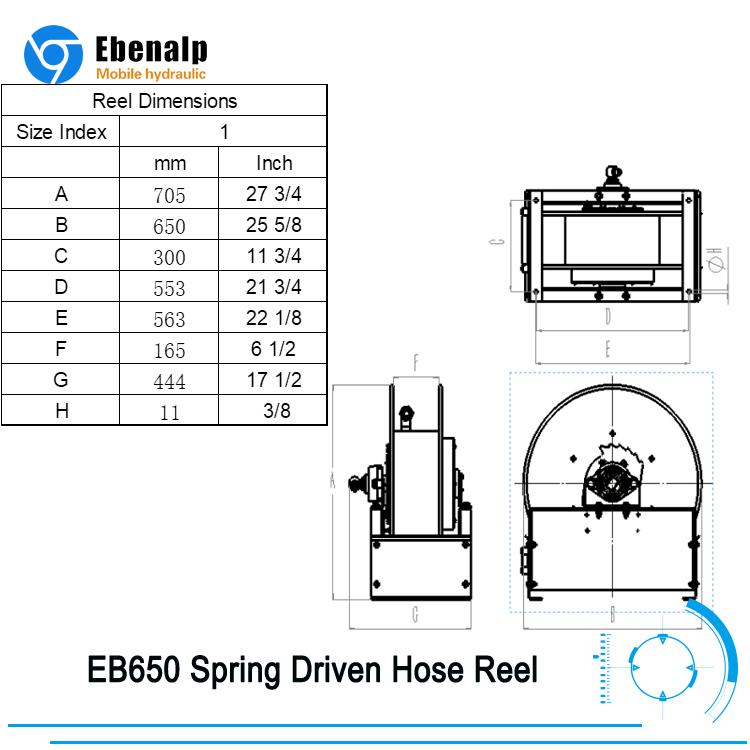

Model Reel Weight Max Pressure HOSE  I.D. HOSE  O.D. Hose Outlet Reel Inlet Max Hose Length Model Weight Max Pressure Size Index
kg lbs bar psi mm Inch mm Inch mm BSP m ft kg lbs bar psi
EB650SR12L35 145 320  300 4351  19  1/2 29 1.142  M30X2 G3/4 35 115  EB650SR12L 145 320  300 4351  1
EB650SR16L20 145 320  300 4351  25 1     36 1.417  M36X2 G1 20 66  EB650SR16L 145 320  300 4351  1



Application



Spring self-return reel is very widely used. Factory workshops, automotive 4S stores, sports events later to ensure that the equipment, vehicle fire, food equipment cleaning, sanitation street cleaning, construction machinery, with the crane, aviation ground, oil storage, military special vehicles lifting rod grounding equipment, etc. are widely used.



Factory Information:


Our patented Ebenalp Winder adopts advanced concept for design and production and is durable and good-looking.. It has various product categories, including spring-powdered, motor-powered and hand-operated type and can be used at a broad area, including firefighting, emergency rescue, municipal environmental sanitation and road cleaning, on-site management in factory and plant, airport and railway oil transportation, engineering machinery and other occasions where hose management is required.

Research and development team of Ebenalp is experienced in hydraulic system design practice and dedicated to helping customers solve their problem with the most thoughtful and highest quality service. We provide all kinds of pipeline solutions related to winder. We are the best supplier and partner in hydraulic joint sector.





If you need pls contact with Tanya Tan freely.

Ebenalp Mobile Hydraulic Equipment Manufacturing Ningbo Co.,LTD.

Tel:+86 0574-65007596
Fax:+86 0574-65801180
Cell: 0086-15116240218(whatsapp/wechat)
Email: tanya@ebenalp.com
Website:http://en.ebenalp.com/




Product Image

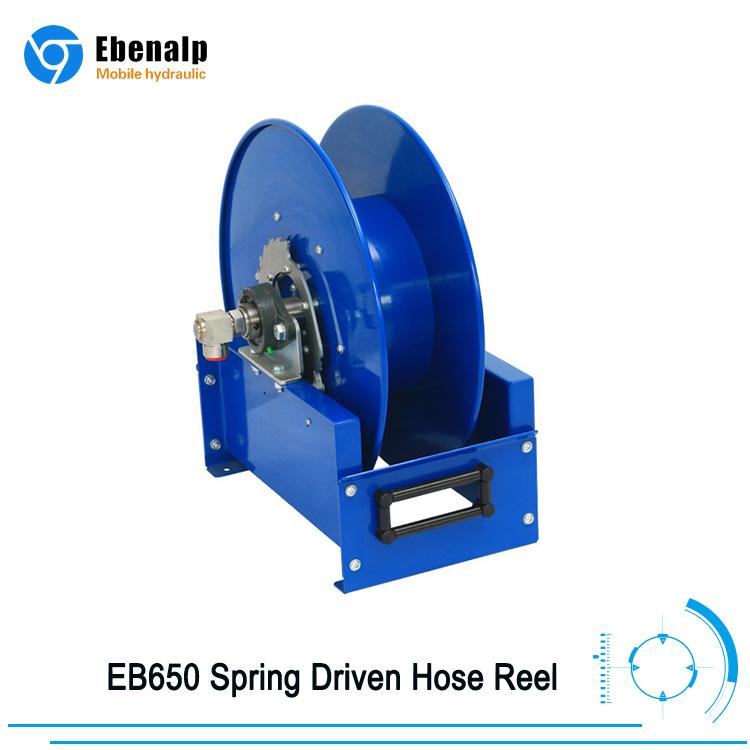

EB650 Spring Driven Hose Reel for Industry 1
Img 1

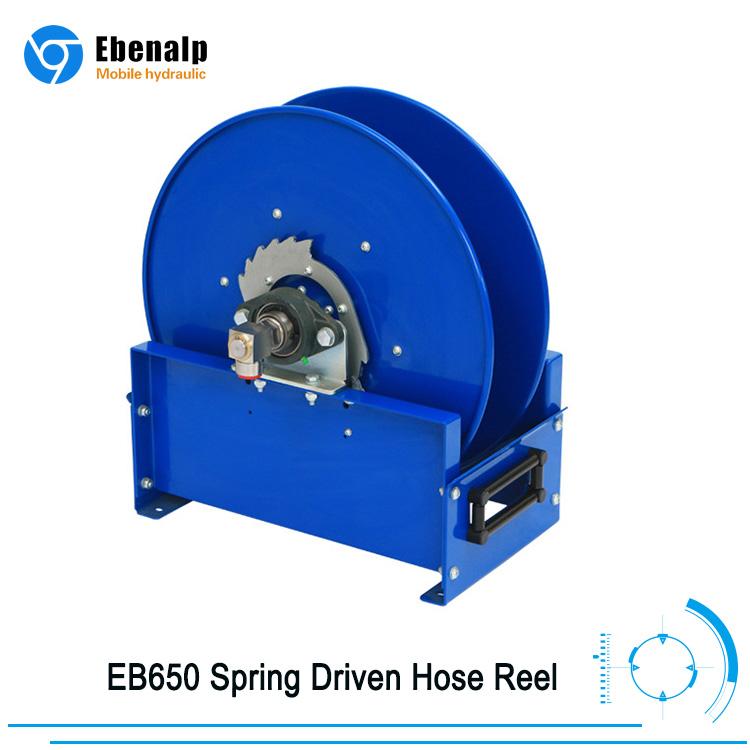

EB650 Spring Driven Hose Reel for Industry 2
Img 2

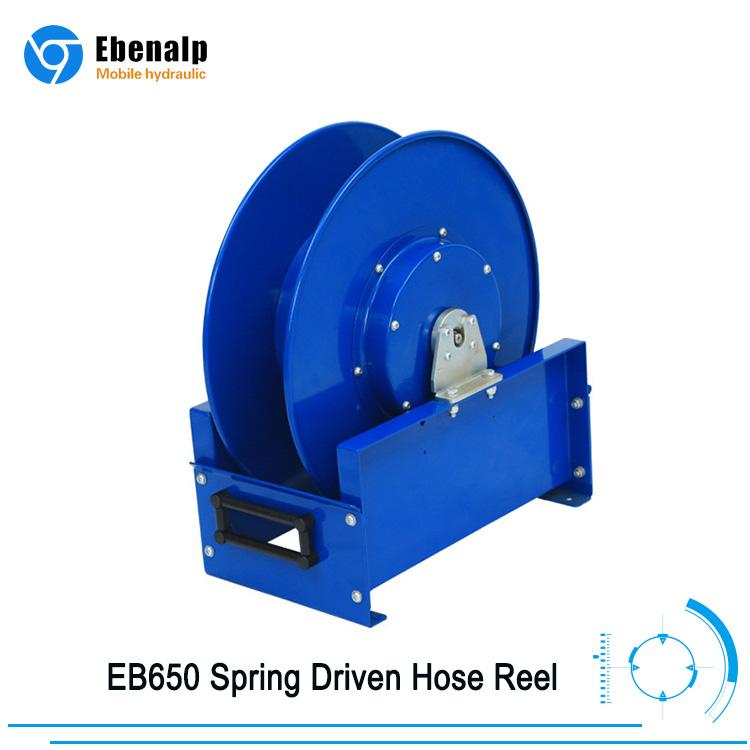

EB650 Spring Driven Hose Reel for Industry 3
Img 3
EB650 Spring Driven Hose Reel for Industry 4
Img 4
EB650 Spring Driven Hose Reel for Industry 5
Img 5
