| Model: | DS18B20 |
|---|---|
| Brand: | JYX or Customized |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Sense Organ |
| Label: | DS18B20 thermistor , temperature sensor , Digital sensor |
| Price: |
US $1.24
/ pc
|
| Min. Order: | 100 pc |
| Last Online:10 Aug, 2021 |

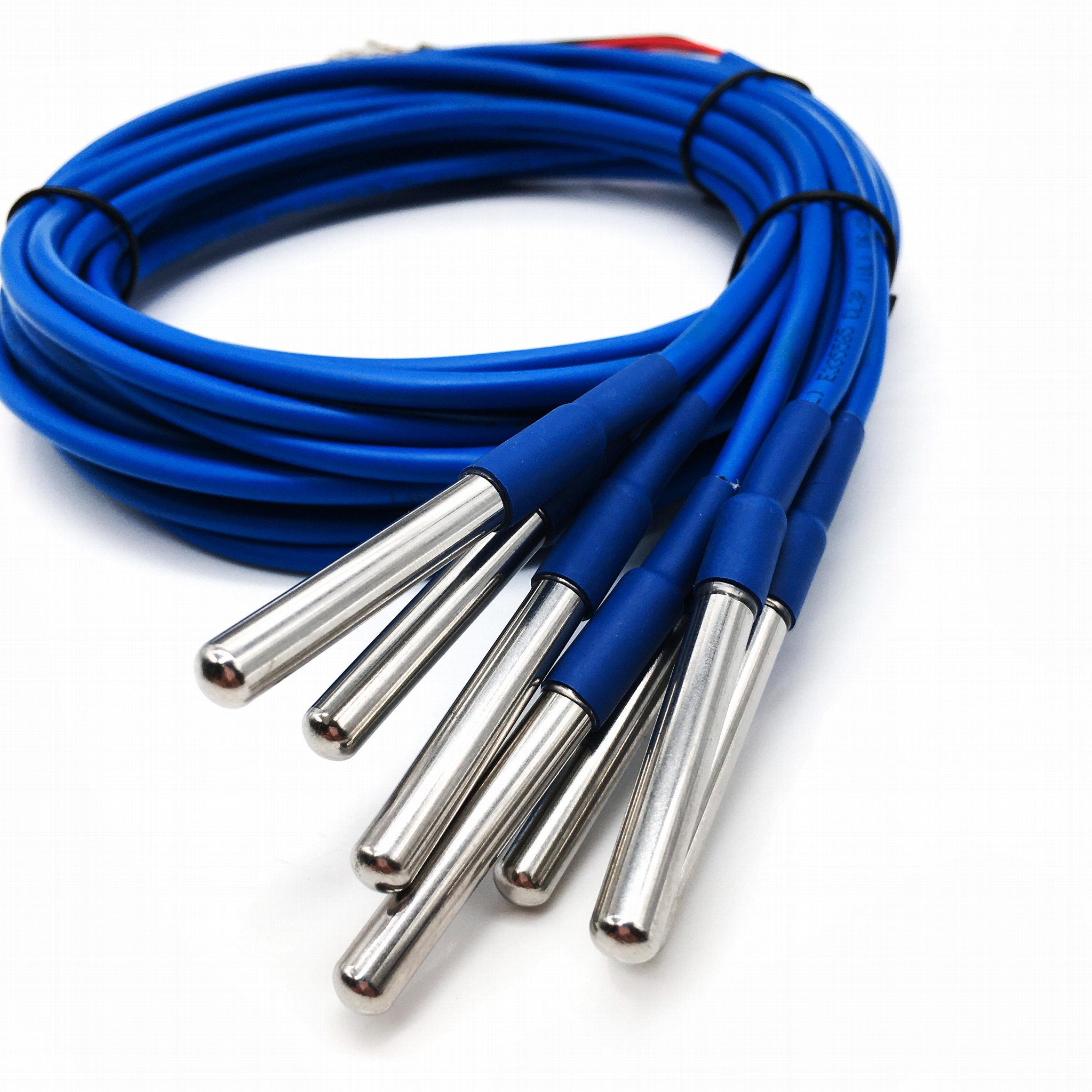

Digital Temperature Sensor DS18B20 Waterproof Probe With SUS Flange Thermal Cable Can be Customization
DS18B20 Thermistor Sensor
-Stable And Reliable Quality
-High quality material
-Durable
-Custom preocessing
-Suitable for many occasions, such as air conditioner, refrigerator
Quick Details:
Model No.: JYX-D-007
Usage: Temperature Measuring device
Output: Digital
Resistor: DS18B20
Temperature Range: -40~125℃
Waterproof: IP68
Description: DS18B20 Thermistor Temperature Sensor
Service: Support Customization, ODM, OEM service
Parameters Required For Samples:
The temperature sensor customization can be divided into four parts: the temperature sensor core, the probe cover, the cable type and the end connection.
1. We can Customize according to the customer's requests, the commonly used type are as follows:
| Name of Type | A | B | C | D | E |
| Temp. Sensor Chip | NTC thermistor | PT resistor | Thermocouple | DS18B20 | LPTC silicone resistance |
|
Probe cover |
ST-304, 316L | Aluminium | Copper | Ceramic | ABS |
| Cable type | steel wire mesh | Silicone | Mica | Teflon | PVC |
| End connector | 2.5/3.5mm audio jack | XH connector | Terminal | Micro/Type C | Bare Wire Dip |
2. The Specific Parameter are as follows:
|
Type |
Chip Parameter | Accuracy | Model | Temp. |
| NTC, B value | 10K, 3435K; 50K, 3950K; 47K, 4050K; 100K, 3950K; ETC.... | ±1%，±2%，±3%，±5% | MF52, MF58 | -30~300℃ |
| PT resistance | PT100, PT1000 | A grade, B grade, 2B grade | - | -50~500℃ |
| Thermocouple | K type, J type, S type, Etc. | 1 grade, 2 grade | - | -50~600℃ |
| DS18B20 | DS18B20 | ±0.5℃ | - | -50~125℃ |
| LPTC silicone resistance | KTY83-110, KTY84-130 | 1%， 3% | - | -20~200℃ |
| Cable | - | - | AWG18/20/22/24/26/28 | 105℃， 120℃， 200℃，300℃，380℃，480℃，etc.. |
3. Purpose and Working environment: moisture-proof, waterproof, corrosion-resistant, temperature-resistant and pressure-rsistant requirements.
| Payment Terms: | TT/LC/western union/money gram |
|---|---|
