3000 N.m Metal wire metal rods torque tester
Product Description
This machine is used for metal, non-metallic, composite materials and components torsion performance test.
| Model |
NDW-200 |
NDW-500 |
NDW-1000 |
NDW-3000 |
NDW-5000 |
| NDS-200 |
NDS-500 |
NDS-1000 |
NDS-3000 |
NDS-5000 |
| Max. torque (N.m) |
200 |
500 |
1000 |
3000 |
5000 |
| Measuring range of torque |
2%-100%FS |
| Accuracy class |
1 class |
| Relative error of indicating value of torque |
±1% |
| Resolution of torque |
1/300000 of max. torque |
| Measuring range of torsion angle |
0º-9999º |
| Relative error of indicating value of torsion angle |
±1% |
| Resolution of torsion meter torsion angle |
0.01º |
| Torsion speed |
6-720°/min |
6-500°/min |
| Relative error of torsion speed |
Within ±1.0% of setting value |
| Max. distance between two collets(mm) |
500 |
| Test rotation |
Single/Double |
| Machine spindle center height (mm) |
100 |
170 |
≥120 |
| Sample diameter |
According to the customer request |
| Motor power |
0.4kw |
0.75kw |
2kw |
4kw |
| Voltage |
Single Phase AC 220 V |
3-Phase AC 380 V |

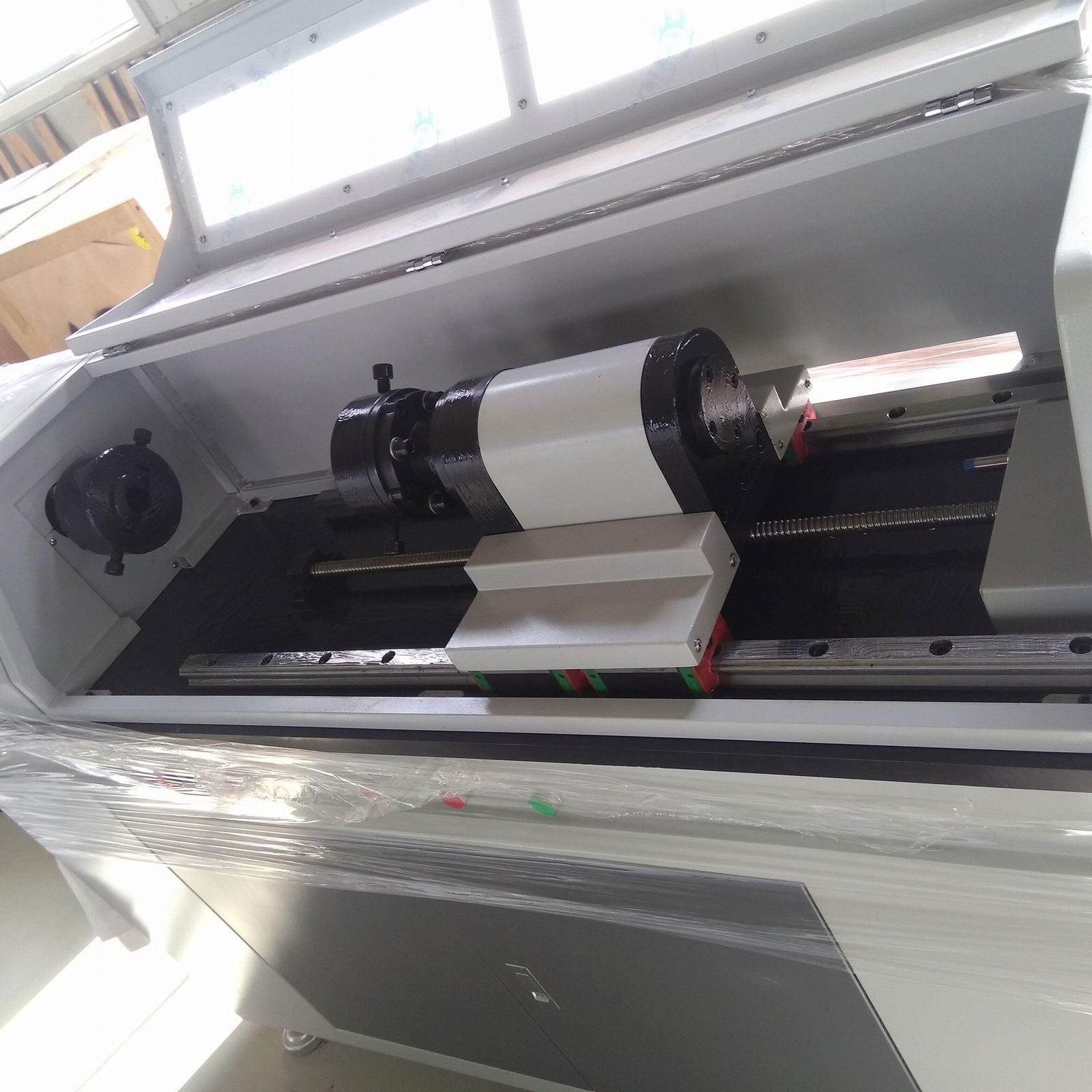

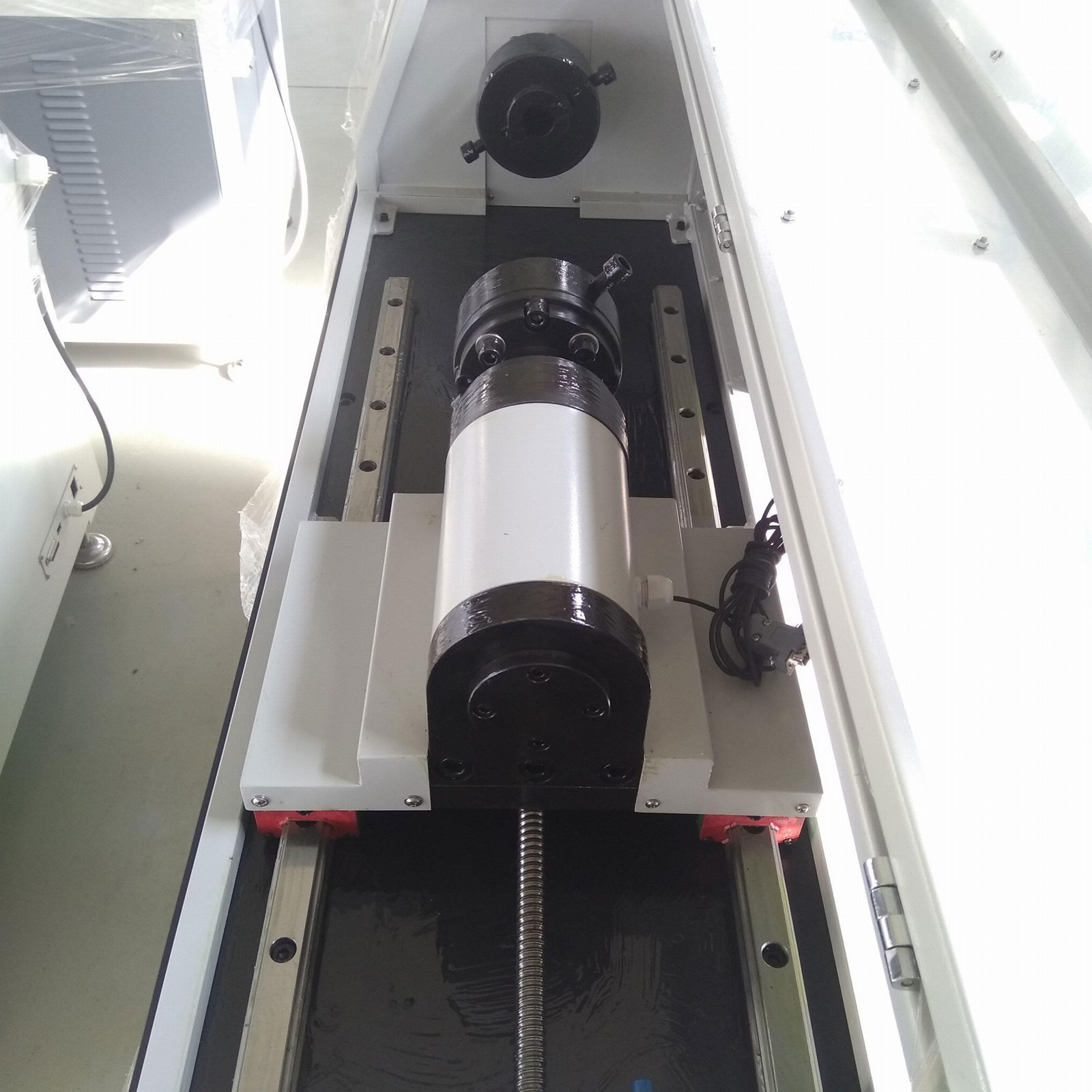

Product Image
