uv ink combination dryer for Full auto screen printing line

TAMPRINTER TURBOSTAR CBS

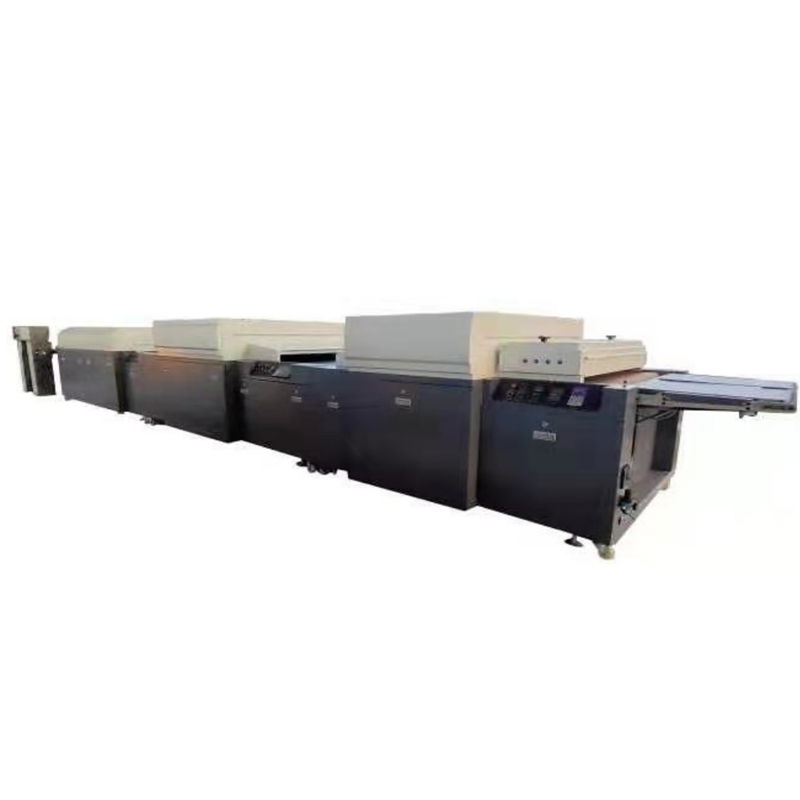

The combination dryer series CBS, is a complete new modular design based on high volume jet-air technology together with energy saving UV systems. The Teflon coated conveyor system with vacuum under the belt will securely and scratch free transport the material throughout the dryer.

When used in combination with cylinder machines, the dryer inlet would start with a "fold down" belt segment that will allow the operator to access the cylinder at the machine exit side.

Optional a UV bridge can be placed over the dryer inlet segment. This initial UV source is used mainly to "freeze" sharp edge / small detail UV ink.

The heating sections are 2 m long segments. High-volume circulation fans create a focused high speed jet-air stream to the material surface. Precise temperature setting with variation Less than or equal to2 CELSIUS. The maximum temperature is limited at 90 CELSIUS. The heating sections can be completed with additional IR radiators. Such feature will decrease the ramp up time needed to bring the substrate to the set temperature.

A separate UV section holding 2 UV lamps, 170 W/cm. The UV lamps can be mercury, ferro or gallium doped. The UV lamps are controlled by electronic power units. These systems allow for stepless power settings per individual lamp between 30 and 100%.  Due to a "soft start system" the life time of the UV lamps is prolonged with more than 30% compared to conventional power control units. Also when used in combination with modern screen printing machines, the "smart UV function" can be activated. This function will automatically reduce the UV power when the printing press is stopped. IR quartz filters with in-between jet-air cooling effectively decrease the substrate temperature when passing under the lamps.

The highly efficient cooling section can either take in fresh air from outside or can be combined with a "cold water / heat exchanger" system running cold air in a closed loop system.

The CBS dryer series are the most efficient jet-air conveyor dryers on the market today. They effectively dry solvent as well as water based inks and cure UV inks with minimum heat transfer.





Technical Specifications

specification unit 800 1100
conveyor width mm 900 1.200
max. material width mm 800 1.100
conveyor speed m/min 10 – 50 10 – 50
length of drop down segment mm 650 650
length of dryer inlet segment mm 1.000 1.000
length of heating / cooling sections mm 2.000 2.000
length of the UV section mm 1.200 1.200
length of dryer outlet segment mm 600 600
integrated UV capacity (2 lamps) W/cm 40-170 40-170
min. temperature °C ambient + 15 ambient + 15
max. temperature °C 90 90
total width mm 1.850 2.150
total height mm 1.300 1.300

spot uv machine for automatic Reciprocating screen print  VIDEO

https://www.youtube.com/watch?v=GLkc-U_0qhs

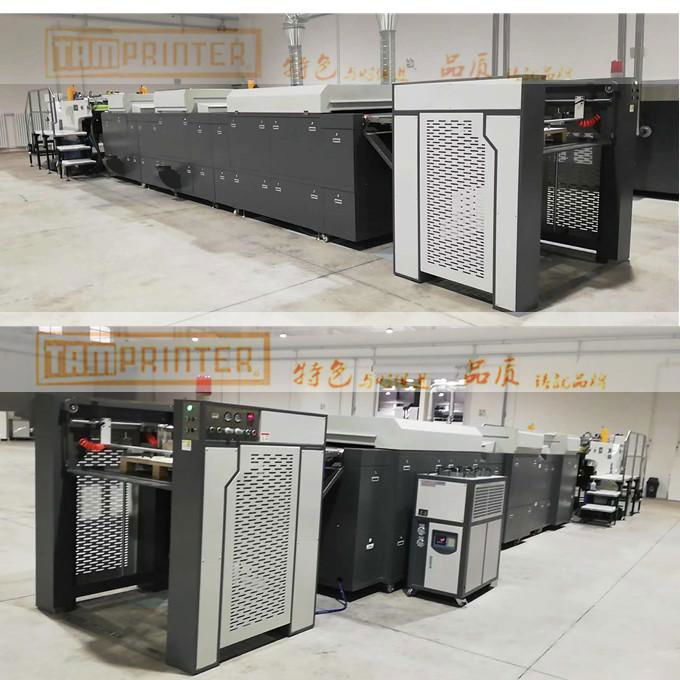

Full auto printing machinery with ice flower effect Uv tunnel dryer and auto stacker AFTER INSTALL VIDEO

https://www.instagram.com/p/COEVvhUABrH/?utm_source=ig_web_copy_link

https://youtu.be/2BZ1VZ_Aas4

Full auto printing machinery with ice flower effect Uv tunnel dryer and auto stacker WORK VIDEO

https://www.instagram.com/tv/CPjQgQ7ALnu/?utm_source=ig_web_copy_link

https://youtu.be/7X7ah0OnkDg

spot uv machine for automatic Reciprocating screen print PICTURE

https://www.instagram.com/p/CREIrnsrz4r/?utm_source=ig_web_copy_link

The separated section: cool
Air purging takes place, as in all
Sections, over nozzle hoods.
The optimal efficiency of the
Drying is self-sufficient
Water / air cooling system
achieved. The active one
cooled air circuit lowers the
Sheet temperature stackable.



The optional section:
One in the warm air operating mode
Combination dryer, used for
physical drying of solvent-based paints, there is a gradual decrease in temperature in the transition to the cooling zone
and tension is achieved on the sheet surface. The transit section
also serves the thermal
Separation of heating and active cooling zones.
For the alternative UV operation is
the transit section with individually
switchable UV lamps out of transit
equips.

The sections:
A high flow of circulating air, exactly in the
Temperature controlled, transmits the
Energy for solvent evaporation. Exhaust air and fresh air
are kept in the by-pass.

The combined section: UV cooling
Especially for applications in the
graphic refinement can do the
UV lamps in the hoods of the
Cooling section can be embedded.
The resulting compact
Design saves space and is for
the printing task highly effective.
Again, the combination is with
Active cooling an option for
further increase in stacking security.
In this version, the
Transit section.

Set in this usage mode
Nozzle cooling fields immediately behind
the heaters reduce the temperature build-up.



If the combination version
of the dryer is used for UV painting tasks, the
Sheet transport through the now
switched off heating zone
used to obtain an optimal paint flow before the UV lamp units are reached.
IR emitters can be installed on request
to reduce the paint viscosity.
Uniform and shiny
Surfaces are the most visible
