| Model: | KYORITSU 5406A |
|---|---|
| Brand: | KYORITSU |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | RCD Testers Custom , microprocessor , KYORITSU 5406A |
| Price: |
US $360
/ pc
|
| Min. Order: | 1 pc |
| Last Online:20 Jan, 2025 |

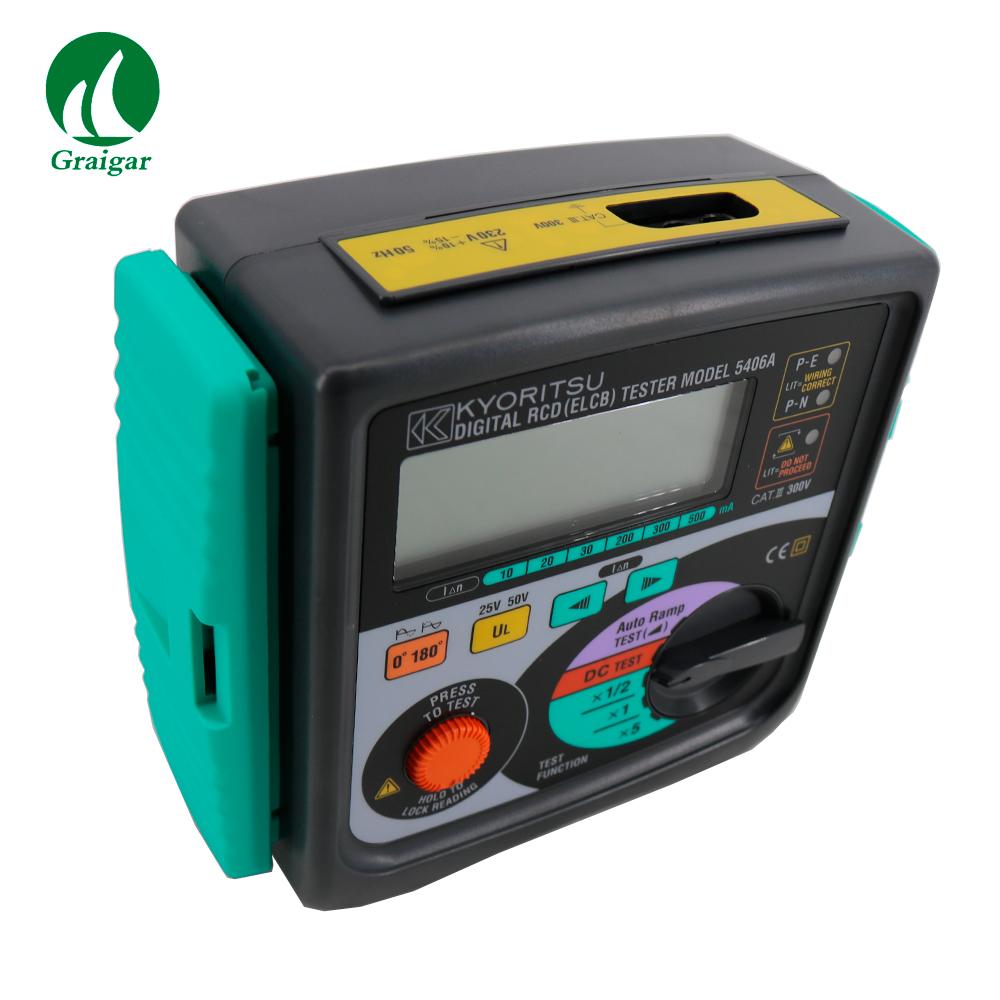

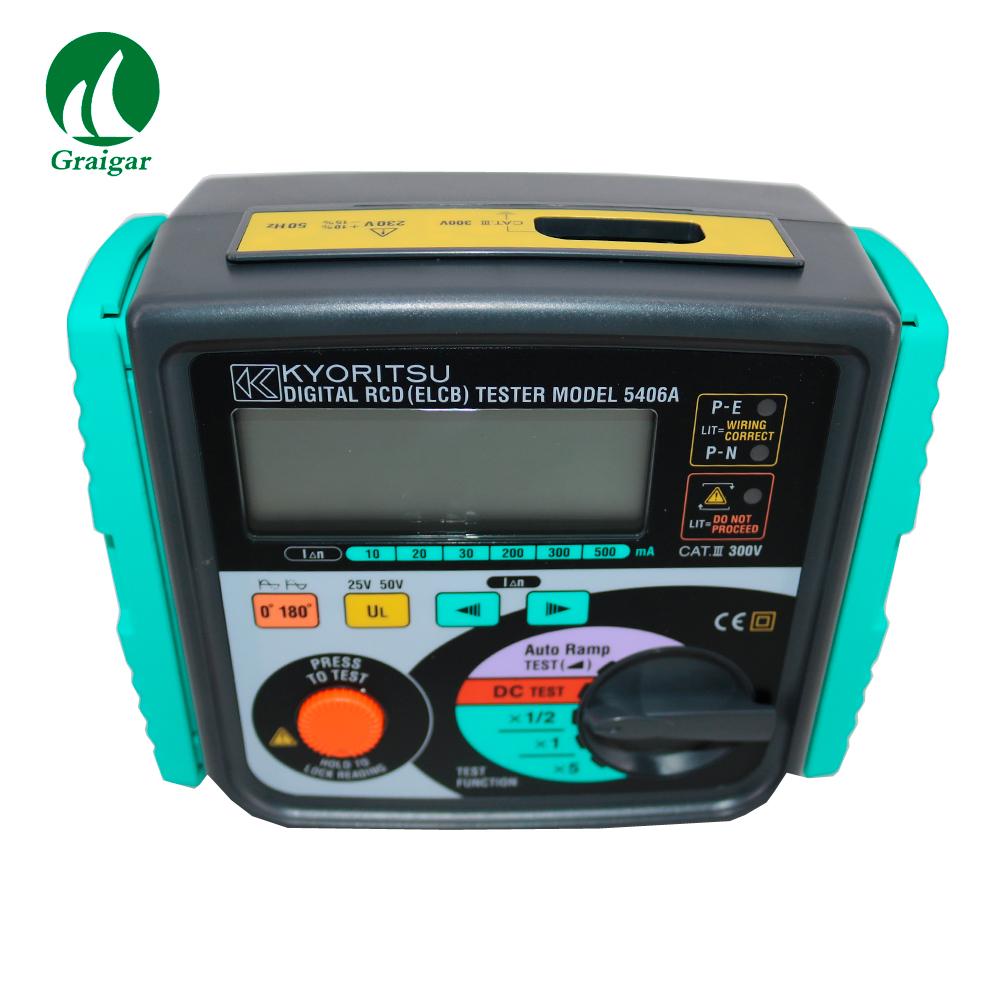

New KYORITSU 5406A Digital RCD (ELCB) Testers High Accuracy
• Custom microprocessor controlled for highest accuracy and reliability.
• 3 LEDs for checking correct wiring status.
• 0 and 180 degree phase angle switch permits quick tests and consistent readings.
• Digital read-out of tripping time.
• Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
• Large custom digital display readout.
• Visual indication of reversed phase and neutral wiring at socket.
• Designed to IP54 Rating.
• Complies with IEC 61557
• Test of a large kind of RCD's: Standard, Selective, AC and A (DC sensitive breakers)
| Rated Tripping Current | 10/20/30/200/300/500mA |
|---|---|
| Fault Condition Settings | × 1/2, × 1, × 5, × DC,
AUTO RAMP |
| Trip Current Duration | 1000ms, 200ms (×5) |
| Lowest Resolution | 1ms |
| Trip Time Accuracy | ±0.6%rdg±4dgt |
| Operating Voltage | 230V+10%-15%
(195V - 253V) 50Hz |
| Safety Standard | IEC 61557-1,-6
IEC 61010-1 CAT III 300V IEC 61010-2-031 Pollution Degree 2 |
| Withstand Voltage | 3700V AC for 1 minute |
| IP Rating | IEC 60529-IP54 |
| Dimensions | 167(L) × 186(W) × 89(D)mm |
| Weight | 800g approx. |

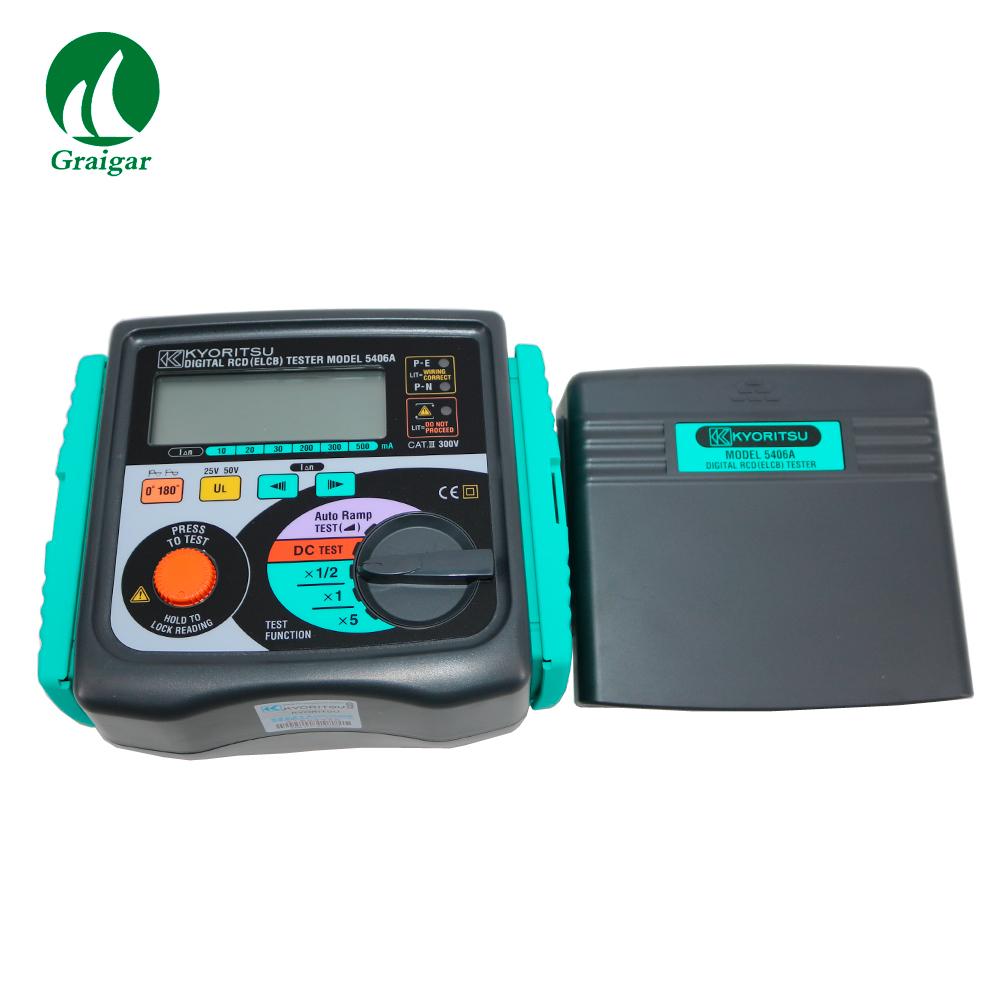

| Accessories | Molded plug test leads
Pouch for test leads Shoulder Strap Instruction Manual |
| Optional | 7121B (Simplified measurement probe) |
| Price Terms: | EXW shenzhen |
|---|---|
| Payment Terms: | Paypal/Credit Card/TT/Western Union |
| Packing: | export carton |
| Lead Time: | 2 days |
