Multi-Channel Temperature Meter AT4208 ARM micro processor
Product Description
8-Channel Handheld Multi-Channel Temperature Meter AT4208 adopts high-performance ARM micro processor
Introduction
AT4208 handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT4208 has the function of checking broken thermocouple, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. USB communication. Switch in both English and Chinese.
The standard computer software can realize the data analysis.
Specification
| |
| Graduation |
Thermocouple : J/K/T/E/S/N/B |
| Accuracy |
0.2%+1C |
| Range |
-2001C~1300C(variation depend on graduation) |
| Resolution |
0.1C |
| Channels |
8 channels |
| Speed |
Fast: 100ms/channel Medium: 500ms/channel Low: 1s/channel |
| Correction |
Error correction for each channel |
| Comparator |
High & low beep function |
| Interface |
Mini-USB |
| |
High & low beep function |
| Cold Junction |
Accuracy: 0.5C |
| |
2.8 inches True-color 16M TFT-LCD LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese; adjustable back light; automatic power off |
| |
Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC |
| |
8.4V, Li, 1400mA rechargeable battery |
| |
T thermocouple 8 teams(2m/team) ATL909: DC power adaptor ATL805: Lithium battery ATL105Mini-USB communication cable ATS42 data acquisition software |
|
|
Feature
|
| |
TFT-LCD True-color LCD display |
| |
touch screen |
| |
Fast,Medium,Low scanning speed |
| |
Cold Junction Compensation |
| |
Mini-USB interface |
| |
The function of broken thermocouple checking |
| |
ATS42 data acquisition software |
| |
8.4V, Li battery powered |
|
|
Application
|
| |
Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on. |
|
| Price Terms: | EXW shenzhen |
| Payment Terms: | Paypal/Credit Card/TT/Western Union |
| Packing: | export carton |
| Lead Time: | 2 days |
| |

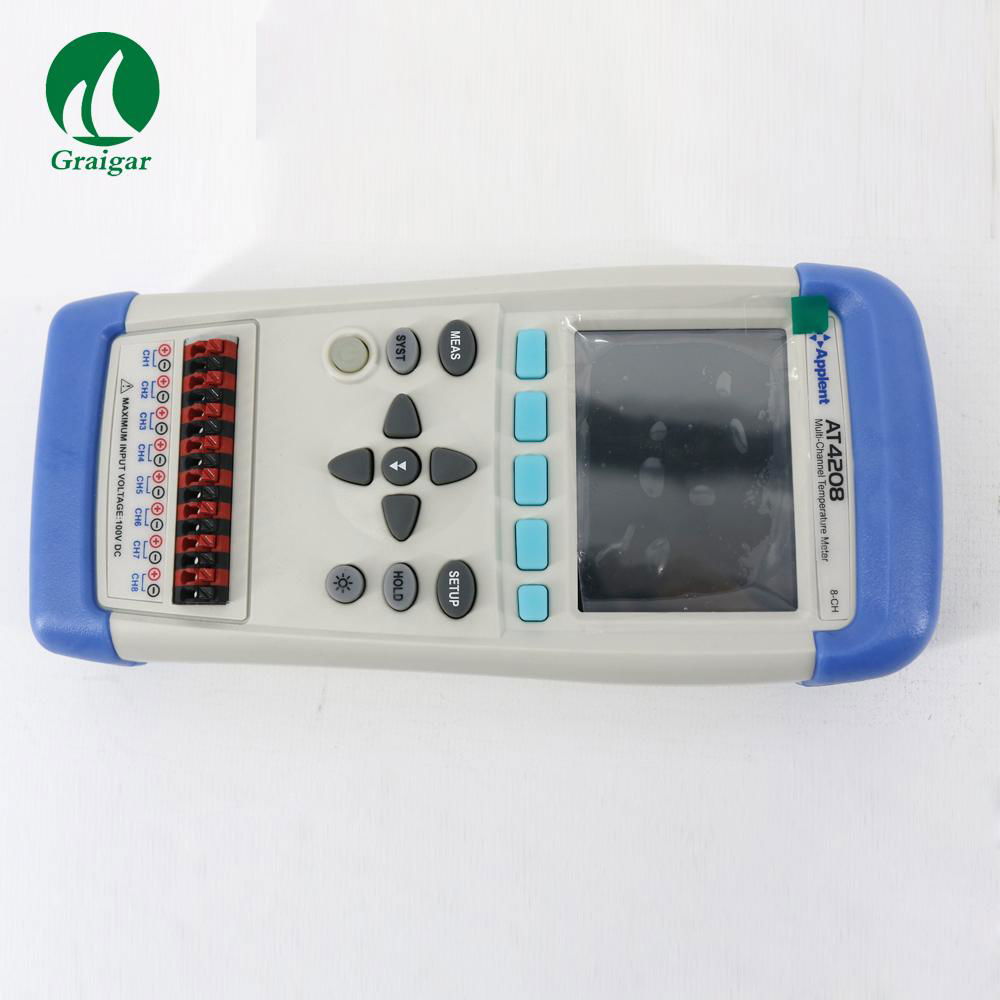

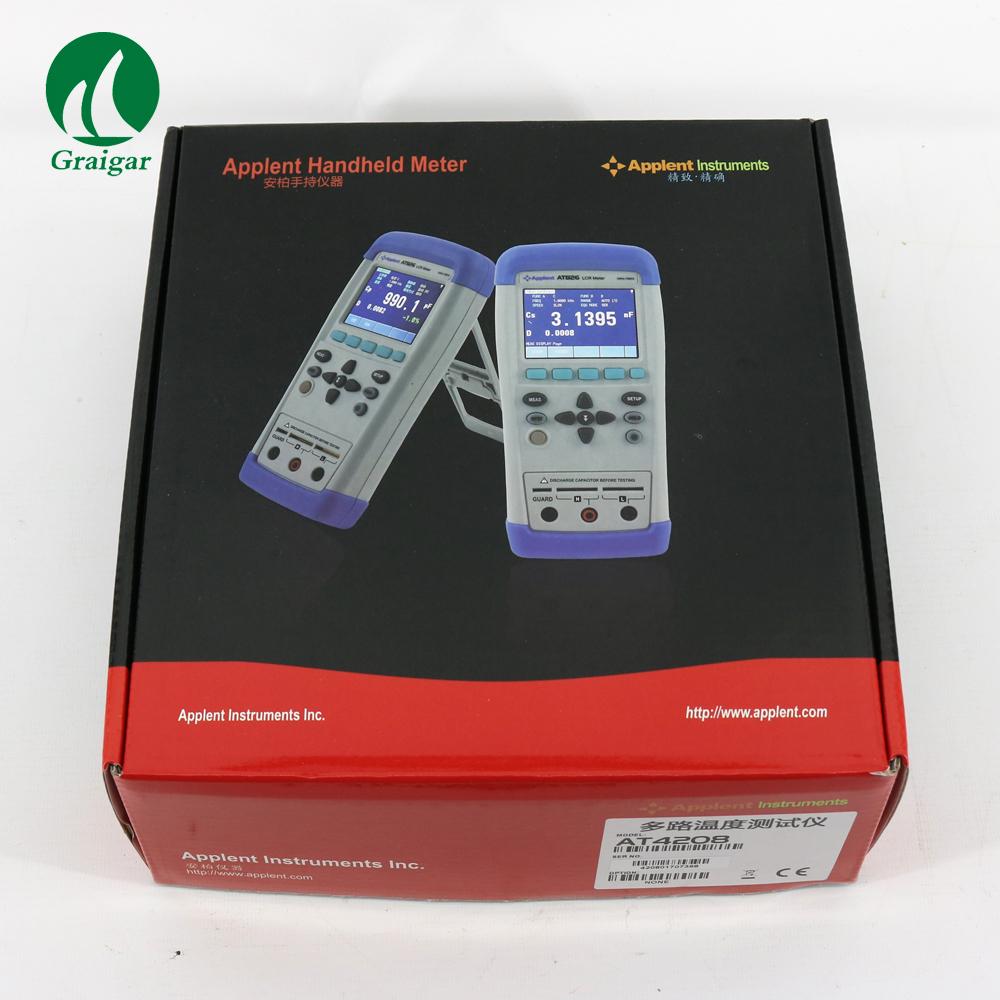

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
Img 6
Img 7
Img 8
Img 9
Img 10
