| Model: | MR-R900H |
|---|---|
| Brand: | MEIRI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | Chamfering machine , edge chamfer , round bar chamfering |
| Price: |
US $442
/ pc
|
| Min. Order: | 10 pc |
| Last Online:22 Feb, 2022 |

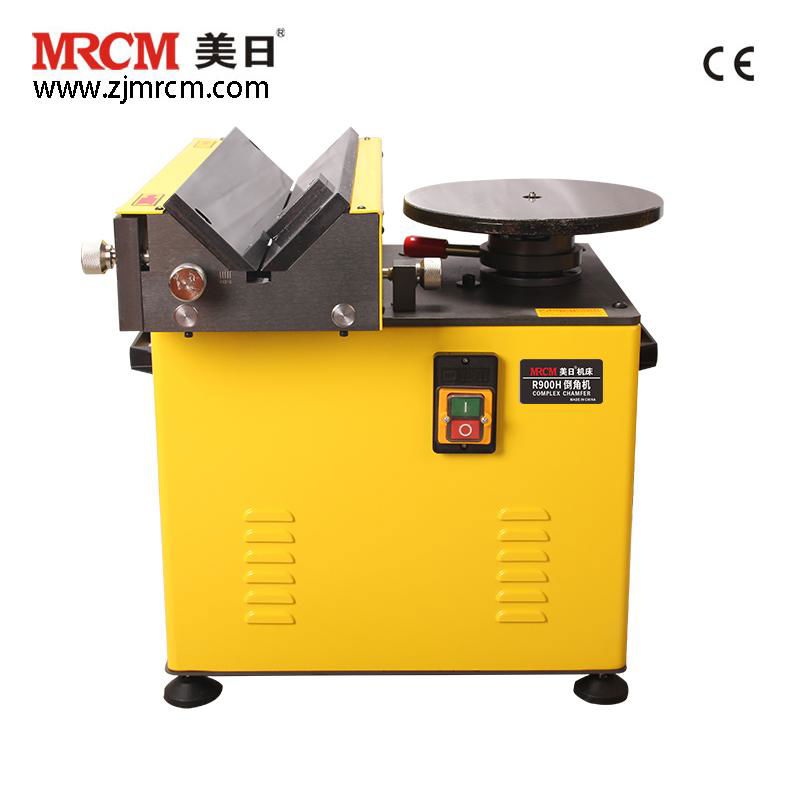

R900H high-speed rail compound chamfering machine whether processed products is a straight line or curve (such as cylindrical, inner hole, the waist shape hole) and irregular cavity edge chamfer, alternative CNC processing center,ordinary chamfering machine tool set will not be able to process the parts. Straight Angle, arc chamfering and chamfering irregular curve canbe completed in one machine， has the function of mult-usage.Widely used in mould making,hardware machinery,machine toolmanufacturing, hydraulic parts, valve manufacturing, textle mechanical chamfering and the burr removal of gear, such as processing wayChamfering processing size 0 to 3 mm is adjustable. Guide chamfering machine adopts the mode of "guide " the workpiece after grindingmachine processing of the panels are "zero" scratch and copper,aluminum metal transfer to guarantee the accuracy of the size of the highspeed cutting blade, smooth, high efficiency (linear velocity is common processing ways several times ), in batch processing parts enterprisesto use. High surface finish of work piece.
Chamfering Range: 0-3mm (Cu, Al) 0-2.5mm( Curved)
Chamfering Angle: 45°， R2，R3
Power： 220V/380V 50Hz
Motor: 750W
Speed: 7500 RPM(Straight); 10000 RPM (Curved)
