Part Number

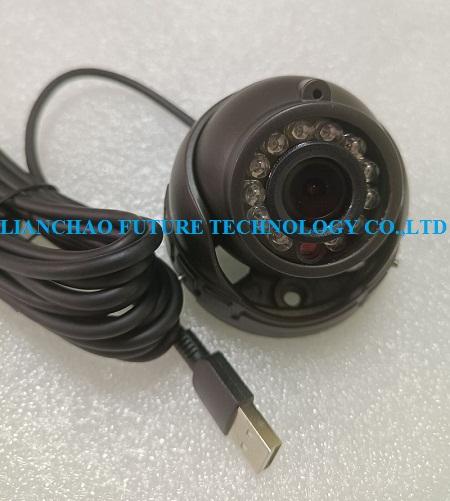

LCF-23IRC-UD

2

Sensor

(1/4 )

3

Highest significant pixel

1280X720,640X480

4

Sensitivity

3300mV/Lux-sec

5

Pixel Size

6µm x6µm

6

Image area

3888µmx2430µm

7

Output

MJPEG/YUV2(YUYV)

8

Lens

2.8mm1080P Lens

9

Distance

3M-8M

10

Central definition

1000LW/PH (Center)

11

 (s/n  RATION)

45dB

12

 (Dynamic Range)

65dB

13

Shutter type

Electronic rolling shutter / Frame exposure

14

Interface type

USB2.0 High Speed

15

Automatic Exposure Control AEC

Supported

16

Automatic White Balance

Supported

17

Automatic Gain Control AGC

Supported

18

Lens Specification

2.8mmlens

IR CUT: 650±10nm

19

Power supply connector for IR LED Board (850nm len need)

Support  2P-2.0mm connector(850nm lens need)

20

Power supply and Interface

USB BUS POWER  4P-2.0mm connector

21

Power

DC5V

22

Current

90-150mA

23

Storage temperature

-30°Cto 70°C

24

Working Temperature

0°Cto 60°C

25

USB Cable

5M(1M/2M/3M/5M optional)

26

Operating humidity

15%-85%
