| Model: | - |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | Plastic Machinery , Machinery , Injection Molding |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:18 May, 2022 |

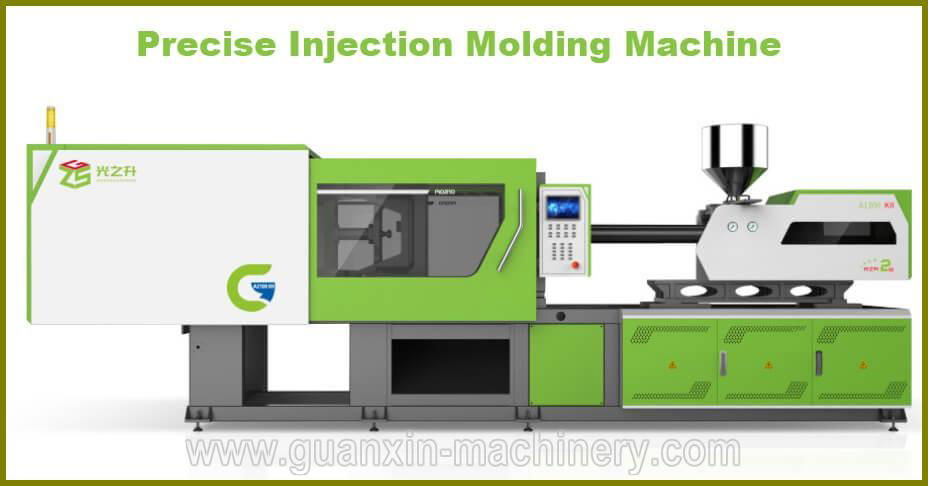

Guanxin Plastic Machinery have lots of experience in the PVC / PPR pipe fittings and other products manufacturing process. We designed the PVC/PPR Pipe Fitting Injection Molding Machine with lots of optimized functions, manufacturing process management, production management and quality control systems. We provide you a turnkey solution for full process of raw materials treatment, quantitative additive color mixing machine, rapid and stable injection molding, PVC PPR pipe fitting mold, etc. Total cost is down with high productivity, and lowest production defect rate of only 0.5%.
Polyvinyl chloride (PVC) is a versatile thermoplastic material that is used in the production of lots of products. Our PVC series injection molding machine is optimized designed for PVC,UPVC,CPVC,PVC Powder & granulate material. Bi-alloy Screw & Barrel. With stabilized temperature increasing rate from charging. High efficient plasticizing rate and stable injection molding.
Our PVC/PPR Injection Molding Machine is widely use for different pipe fittings manufacturing. Includes PVC / UPVC / CPVC pipe fittings, PPR pipe fittings, PPR metal over molding pipe fittings, PP or PPH belling pipe fittings, PP drainage pipe fittings and other PVC PPR products.
SPECIFICATIONUnitGX2100-PVCGX2600-PVCGX3000-PVCGX3500-PVCGX4200-PVCGX5000-PVC
| Screw diameter | mm | 60 | 67 | 75 | 83 | 90 | 95 |
| Screw L/D ratio | (L/D) | 24 | 24 | 24 | 24 | 24 | 24 |
| Shot volume | cm3 | 664 | 969 | 1413 | 1866 | 2544 | 3046 |
| Shot weight-@PET 1.3 | Gram | 777 | 1134 | 1623 | 2183 | 2977 | 3350 |
| Injection Pressure | Mpa | 134 | 136 | 140 | 141 | 145 | 185 |
| Screw stroke | mm | 235 | 275 | 320 | 349 | 400 | |
| Opening stroke | mm | 490 | 560 | 610 | 660 | 730 | 830 |
| Space between bars(H x V) | mm | 530 x 530 | 580 x 580 | 630 x 630 | 680 x 680 | 730 x 730 | 830 x 830 |
| Movable platen size(HxV) | mm | 780 x 780 | 850 x 850 | 920 x 920 | 990 x 990 | 1070 x 1070 | 1200 x 1200 |
| Max mold height | mm | 550 | 580 | 630 | 680 | 730 | 830 |
| Min mold height | mm | 200 | 220 | 230 | 250 | 280 | 320 |
| Ejector stroke | mm | 150 | 150 | 150 | 160 | 180 | 220 |
| Ejector force | KN | 62 | 62 | 62 | 62 | 110 | 152 |
| Number of ejector pins | pcs | 4 + 1 | 4 + 1 | 4 + 1 | 4 + 1 | 4 + 1 | 4 + 1 |
| Hydraulic system pressure | Mpa | 16 | 16 | 16 | 16 | 16 | 16 |
| Pump motor power | KW | 23 | 29 | 29 | 39 | 44 | 19 + 19 |
| Heater power | KW | 13.9 | 15 | 17 | 19.5 | 23 | 42 |
| Oil tank capacity | L | 230 | 270 | 340 | 360 | 420 | 500 |
| Machine weight | T | 6.3 | 8 | 9.1 | 11.2 | 13.9 | 19 |
| Dimensions(L*W*H) | M | 6.2 x 1.5 x 2.2 | 6.7 x 1.6 x 2.2 | 7.1 x 1.6 x 2.2 | 7.6 x 1.7 x 2.4 | 8.2 x 1.9 x 2.5 | 9.2 x 2.1 x 2.6 |
| * We reserve the right to make changes as a result of further technical advantages. | |||||||
