Huatao Automatic Stacker

Model:008
Brand:Huatao
Origin:Made In China
Category:Packaging , Printing & Paper / Packaging Materials / Other Packaging Materials
Label:Automatic Stacker , Angle Stacker , DS-Basket Down Stack
Price: US $700 / box
Min. Order:1 box
Inquire Now

Member Information

Detail

Product Description

Huatao Group - Corrugator Belt & Spare Parts

www(dot)htwirebelt.com

sandy(at)huataogroup.com

Tel: 0086 133 8311 0583

WhatsApp: 0086 133 8311 0583

Automatic Stacker available breadth: 1400-2200mm

Specification:

Frequency conversion motor auto down stacker



Applicable to be production line whose max speed is 180m/min



Max sheet length: 3500mm, max stacking height: 1500mm



Connected with production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself



Stacking of multi orders



Conveyer belt was separated to be 4 sections, driven by ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which make paper board stack in good order



Transducer control the frequency conversion motor to drive the roller runningspeed up and down stably, board come out easilyhard to be overturn



Transducer control the brake motor to drive the elevatorwith counterbalancespeed up and down stably, speed counterchanges reasonably, make stacking more free and get rid of the paper board crease, improved the life of machine



Rolls forms close, and lift with elevator, to reduce the waste



Gross power: 30kw





















WIDTH(MM)

DIMENSION (L X W X H)(MM)

WEIGHT(T)

GROSS POWER(KW)

1400

17000×2400×3200

9

24

1600

17000×2600×3200

10

24

1800

17000×2800×3200

11

24

2000

17000×3000×3200

12

24

2200

17000×3200×3200

13

24


Product Image

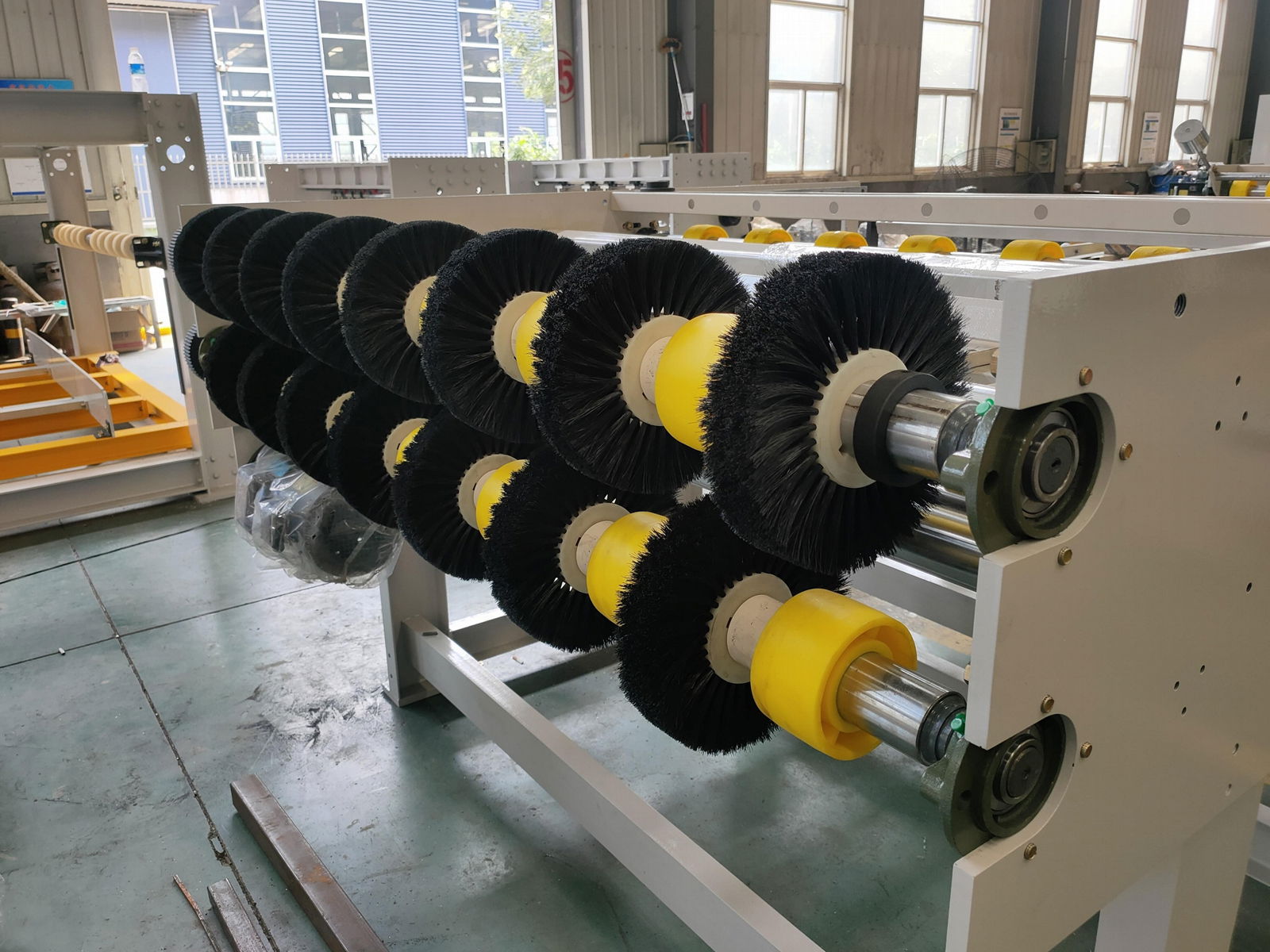

Huatao Automatic Stacker 1
Img 1
Huatao Automatic Stacker 2
Img 2
Huatao Automatic Stacker 3
Img 3
Huatao Automatic Stacker 4
Img 4
Huatao Automatic Stacker 5
Img 5
