China PLC Technology Industrial Automation Controller with Ten Years

Model:PLC-400
Brand:GCAN
Origin:Made In China
Category:Electronics & Electricity / Electric Control System
Label:programmable , Ethernet , remotely controllabl
Price: US $179.9 / piece
Min. Order:1 piece
Inquire Now

Member Information

Detail

Product Description

Main Control Module

Brand:GCAN
Model:GCAN-PLC-400/510/511
Feature:
1.Programming software: OpenPCS;
2.Support Ethernet, RS232/485, CAN Bus interface;
3.Support CANopen protocol master/slave station;
4.Support Modbus RTU/TCP protocol master/slave station;
5.Support 5 language of IEC61131-3 standard;
6.Support digital & analog and special expansion IO module;
7.Max 32 expandable IO modules with extra power modules;
8.Configuration mode: automatic configuration;
9.Provide customizable services (programming/logo/software……)、

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules(GC-1008/2008/…). The control module has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.



Model Characteristic Communication bus
CPU frequency Program storage Data storage
GCAN-PLC-400 168M 16M 512K 1*CAN+1*Ethernet+1*RS232(or RS485)
GCAN-PLC-510 400M 32M 16M 1*CAN+1*Ethernet+1*RS232(or RS485)
GCNA-PLC-511 400M 32M 16M 2*CAN+1*Ethernet+1*RS232+1*RS485

3 kinds if interface

CAN, Ethernet, RS232/485, Follow ISO 11898, support CANopen/ Modbus RTU/ Modsbus TCP, can be used as master or slave station

5 programming language

Support SFC (Sequential function chart), LD (Ladder diagram), FBD (Function block), ST(Strutured text), IL (Instruction list)

After-sales service

7 x24 hours every week after sales technical support with our professional engineers to solve problems

IO freely expand

Plenty of IO modules optional including digital & analog IO modules and some other special modules. One main control module with max 32 IO modules (32*8=256 channels)

Free programming software

Support OpenPCS software, follow IEC 61131-3, the software is free with GCAN-PLC

Without specialized downloader

GCAN-PLC can use common micro usb to complete deb ing and downloading

GCAN-PLC can be programmed in five programming languages that comply with the IEC61131-3 standard, which makes the PLC program portable and reusable. IEC61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to select the appropriate programming language for each specific task, and allows different software modules to use different programming languages in the same control program prepared by.

“GCAN Internet” industrial Internet platform is a new industrial Internet platform that integrates software services, attachment services and other services. Our company can design a set of digital monitoring and control that meets the user’s own needs through the platform. System, users can also use the platform to remotely access field devices to achieve high-end functions such as status monitoring, remote control, fault diagnosis, and unified management of field devices

GCAN-PLC can be programmed with German OpenPCS software. OpenPCS is a powerful PLC software programming tool.  Users can select different language editing subroutines in the same project. Function modules, etc.

GCAN will provide users with commonly used function examples such as basic input and output, basic RS232/RS485/Ethernet/CAN communication, CANopen protocol communication, Modbu protocol communication, etc., which can be used by users. Quickly develop a PLC application that suits you, saving development time and reducing development costs.




Product Image

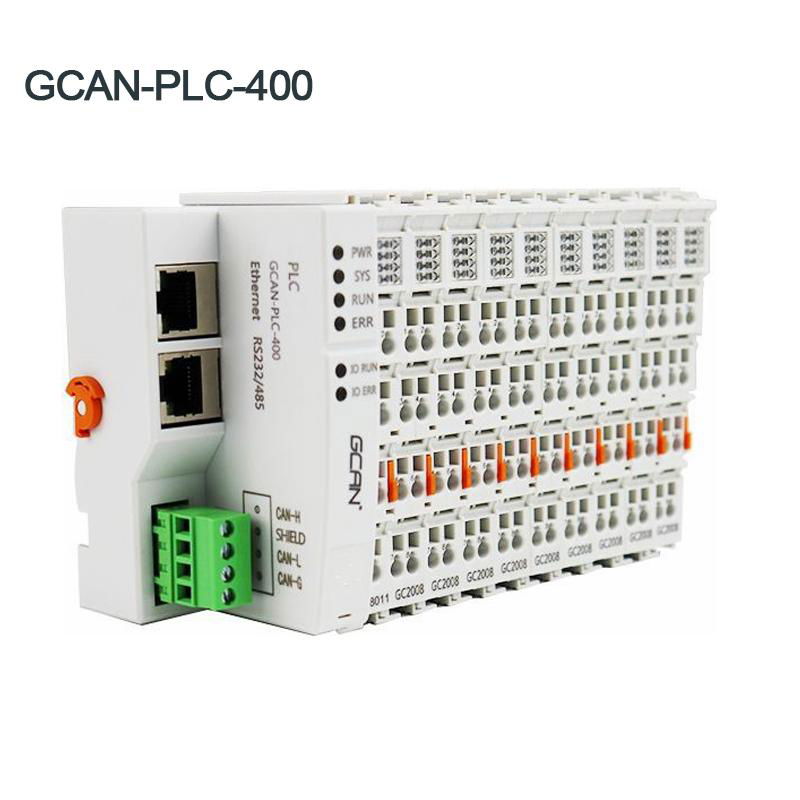

China PLC Technology Industrial Automation Controller with Ten Years  1
Img 1

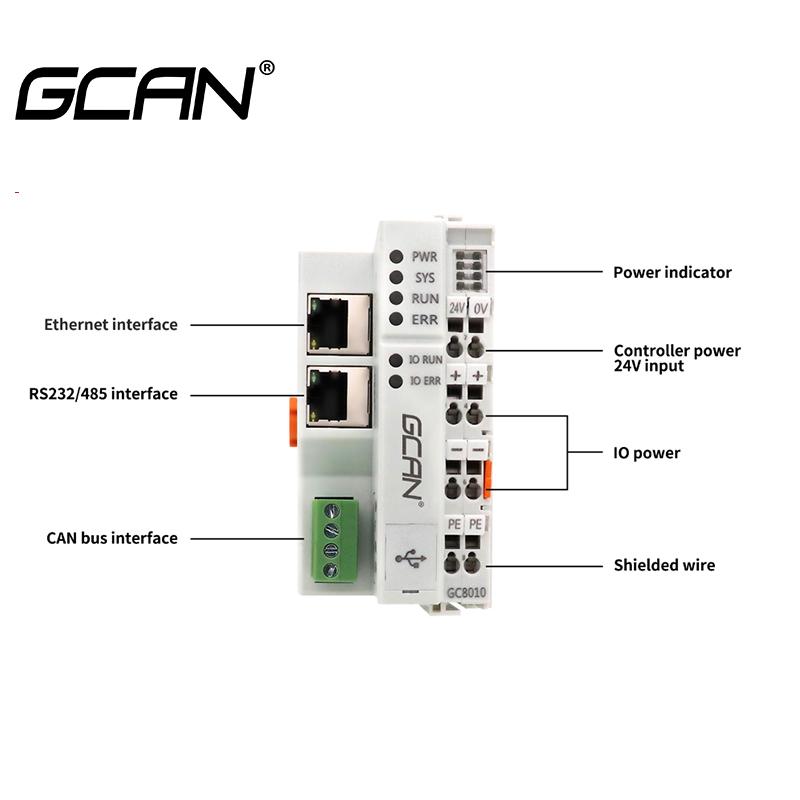

China PLC Technology Industrial Automation Controller with Ten Years  2
Img 2
China PLC Technology Industrial Automation Controller with Ten Years  3
Img 3
China PLC Technology Industrial Automation Controller with Ten Years  4
Img 4
China PLC Technology Industrial Automation Controller with Ten Years  5
Img 5
