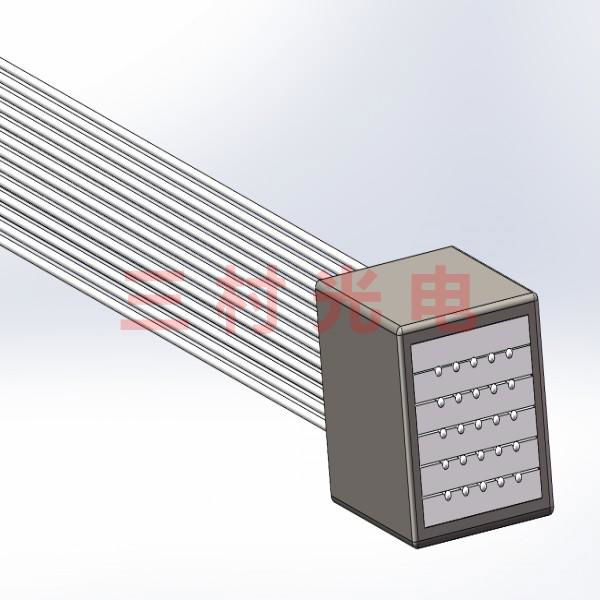

With the advent of 5G, the demand for high-speed, high-density fiber transmission is becoming more and more urgent. It will become inevitable to expand one-dimensional fiber array into 2D fiber array (2D Fiber Array, fiber surface array, 2D fiber array).
The 2D fiber array is coupled with the laser, and the multi-channel laser can be arranged inten-sively and miniaturized through the 2D fiber array to realize laser face array transmission.The fiber optic array is coupled to the detector to achieve the requirement of replacing expensive area array detectors or splicing into large area array detectors with small array detectors.
This 2D fiber array allows thousands of laser channels to position precisely in the X direction and Y direction simultaneously without any crosstalk. Array coupling, switching from 1D to 2D, and signal transmitting and receiving can be easily achieved.
Application: Optical coupling, data transmission, detecting scanning
Description
| Arrangement styles | Line、Square、 circle
Accept customization |
Min Channel pitch | 70um
Accept customization |
| Min Diameter of fiber | 50um | Fiber Type | Single、Multi、PM
And Doulble Clad Fiber |
| Pitch error | ±1um | Core position error | ±1um |
| Accumulative error | 0 | Transmittance | ≥90% |
| Wavelength | 200-1800nm | Numerical Aperture | 0.12、0.22
|

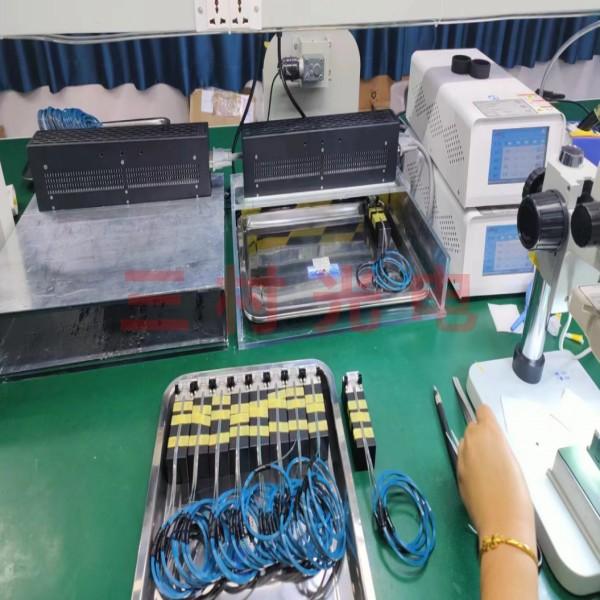

With more than 18 years experiences of designing and developing optical fiber solutions,and first-class fabricating workmanship from Japan,3V TECHNOLOGY is a professional world-service manufacturer,who can support customized requirements.
We specialize in:

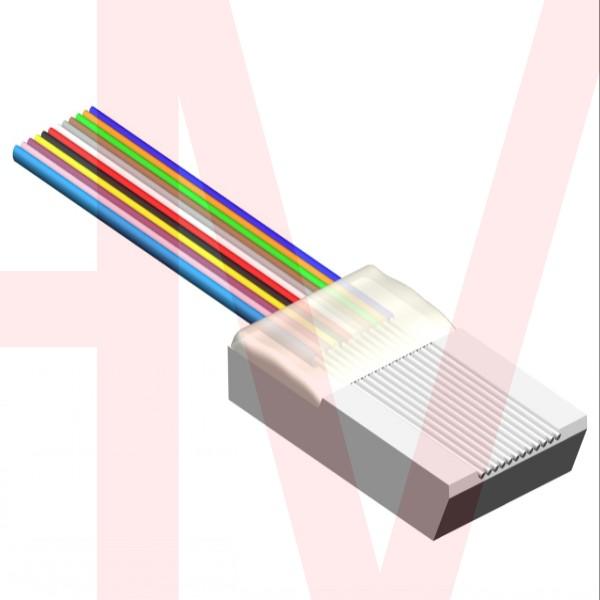

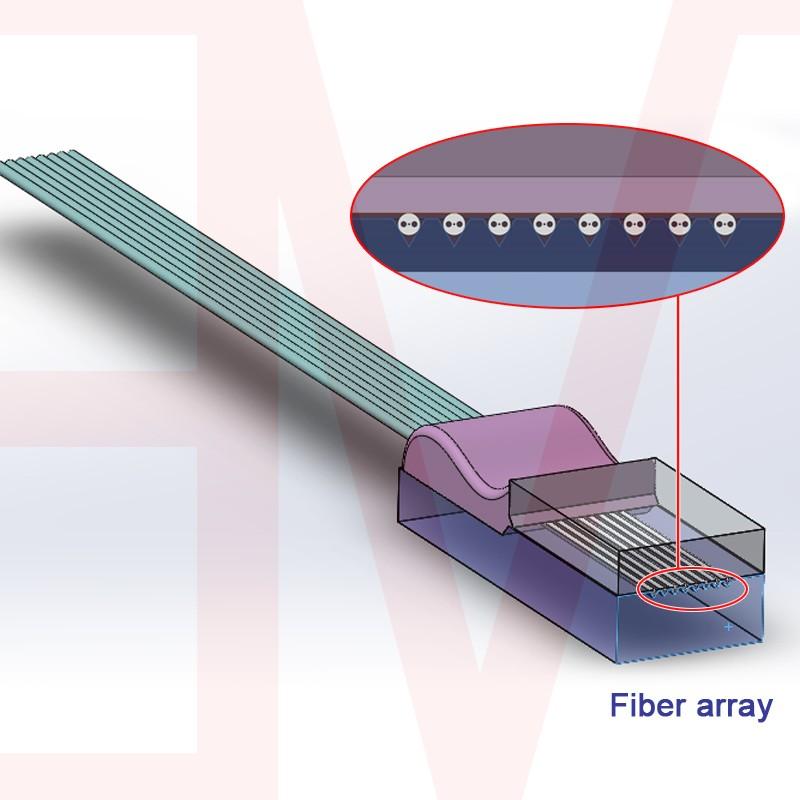

Standard single-mode SM fiber array
Custom Multi-mode MM fiber array
Polarization Maintaining PM fiber array

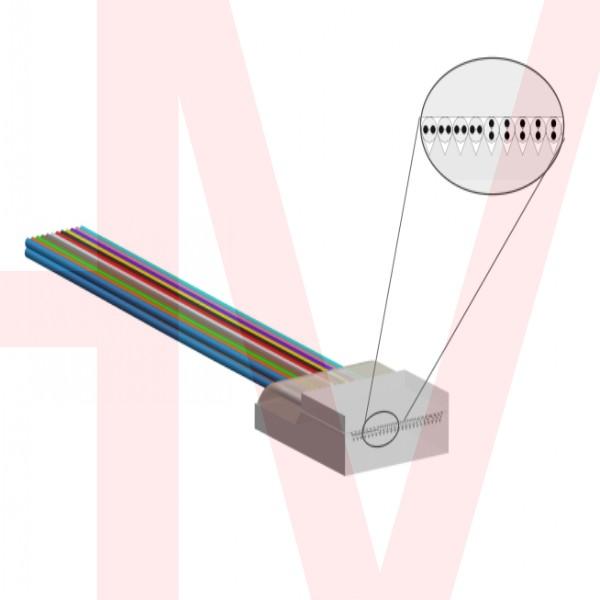

Custom SM+MM mixed fiber array

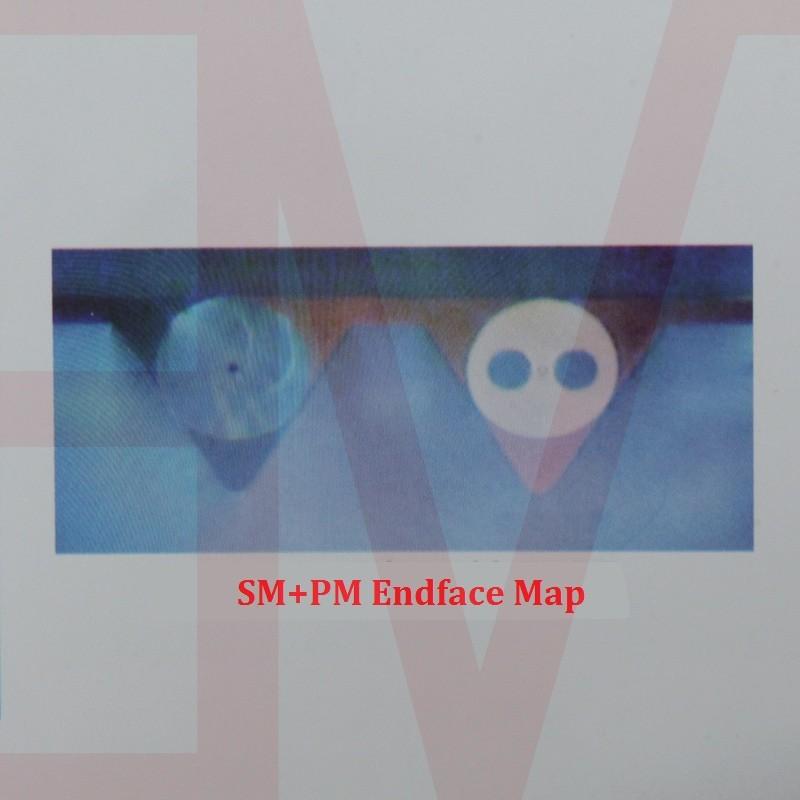

Custom PM+SM mixed fiber array

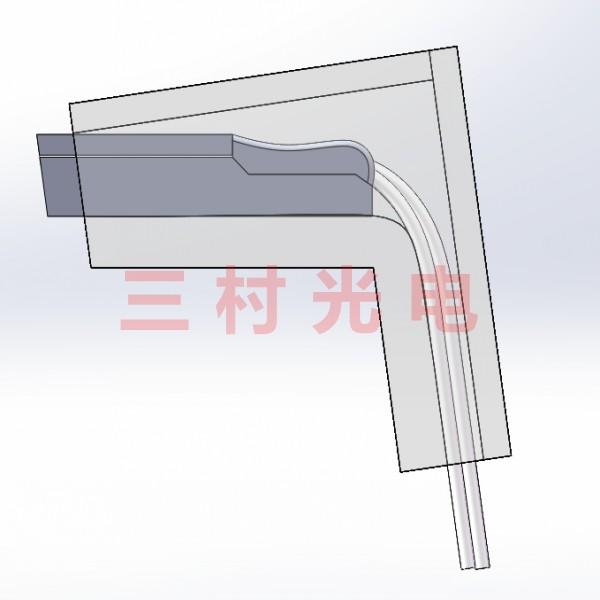

42.5°angle polished fiber array
45°angle polished fiber array
Custom lidless fiber array
Custom Miniature fiber array
MFD conversion fiber array
lensed fiber array
fiber-protruding fiber array,
hermetically sealed fiber array
2-dimensional（2D） fiber array
Custom Lensed Array
and even other customized fiber array with special pitch,special fiber,special channel.
Features:
1.Excellent fiber core position accuracy
2.Telcordia/Rohs compliant ,tested to 5000 hours

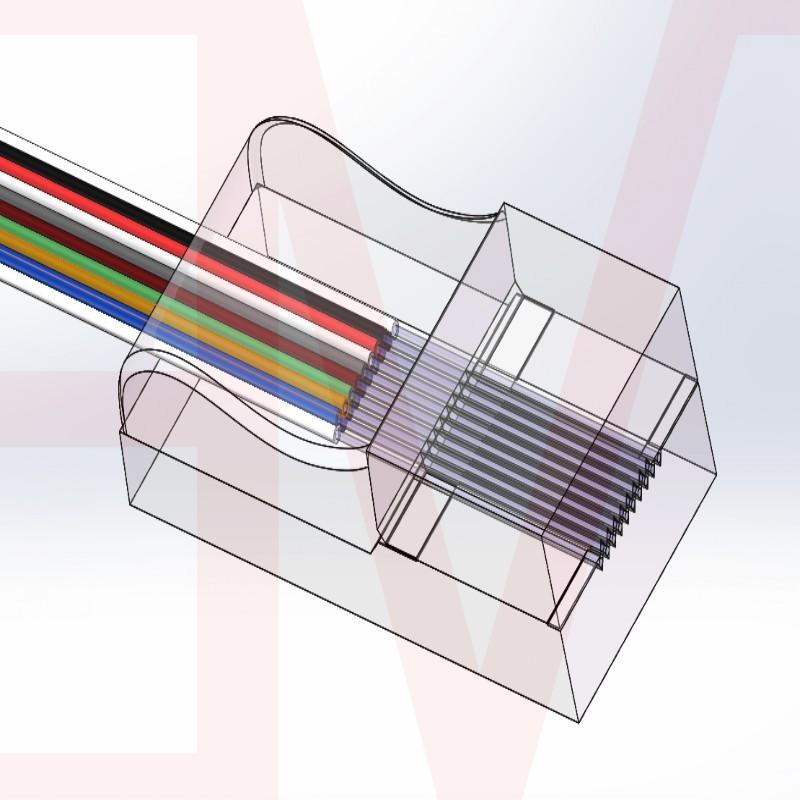

3.Glass V-groove substrate and lid for effective UV curing .

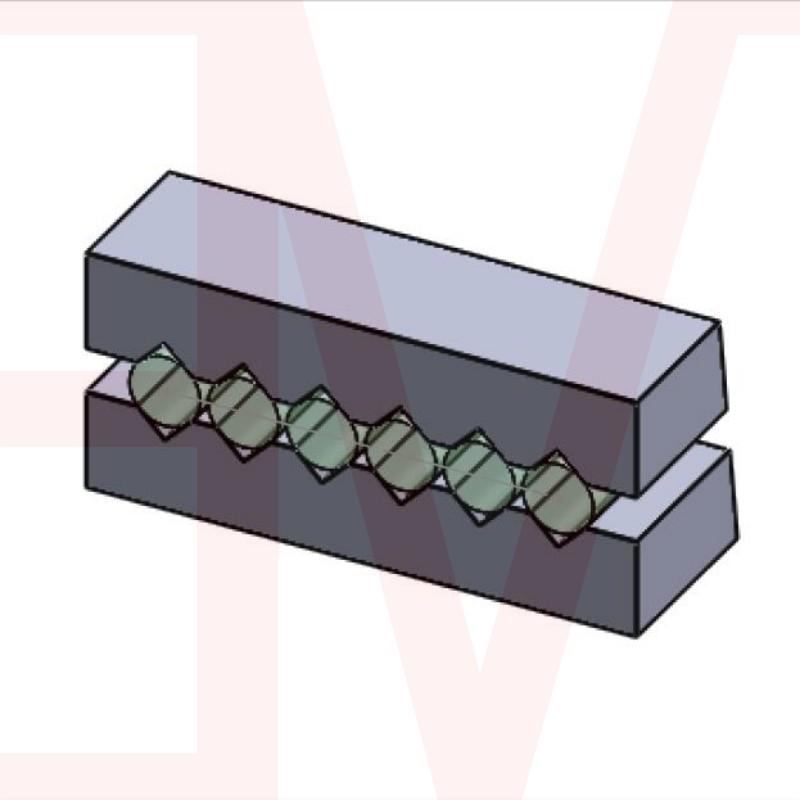

4.Custom design flexibility ,V-groove created in-house

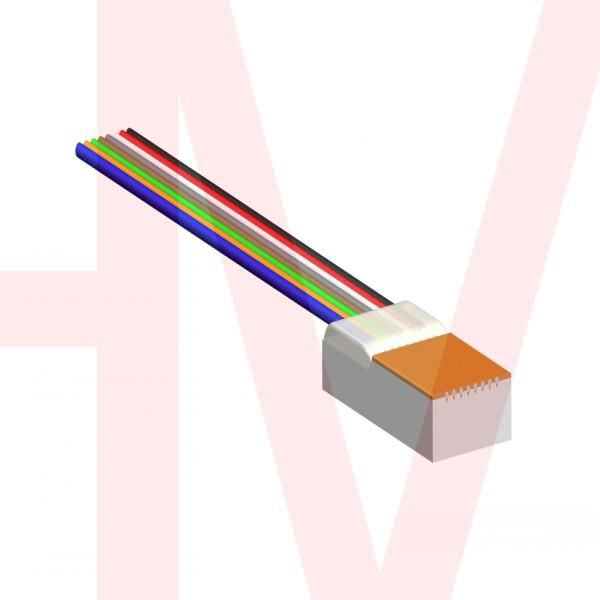

5.Hermetically sealed package with metalized fiber available
6.AR/Hi-reflection coating available.
Custom Parameters：
Material(v-groove): Quatz,Borosilicate,Silicon or customize
Channel Numbers: 1CH,2CH,4CH,6CH,8CH,12CH,16CH,24CH,32CH,48CH,64CH,or customize
Core Spacing: 127um,250nm or customize(tolerence±0.5um)
Endface Angel Polished: 0, 8, -8(±0.2)
Fiber Type:PM/SM/MM or customize
Fiber Length: 0.2m,0.5m,1m,2m,or customize

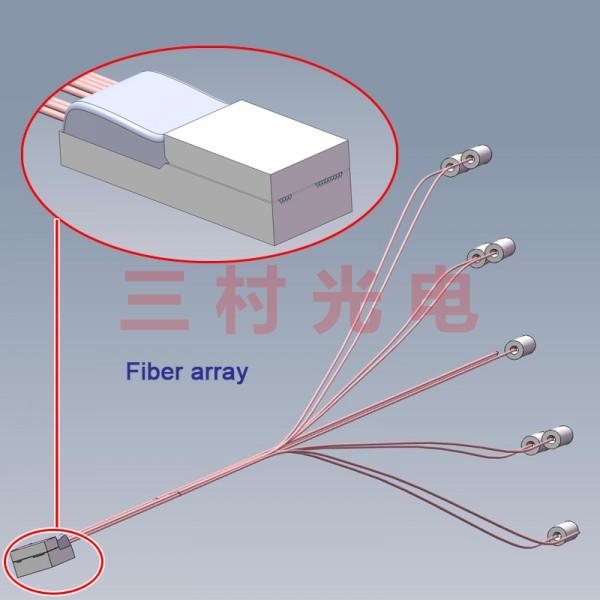

Optional Connectors:LC,FC(UPC or APC),MT,SMA,D80 or customize
We can support to produce for customized order based on provided sample/drawing
