Model: | Q11F |
---|---|
Brand: | ZP |
Origin: | Made In China |
Category: | Industrial Supplies / Machine Hardware / Valves |
Label: | NPT ball valve , screw ball valve , mini ball valve |
Price: |
-
|
Min. Order: | 1 pc |
Last Online:04 Nov, 2024 |

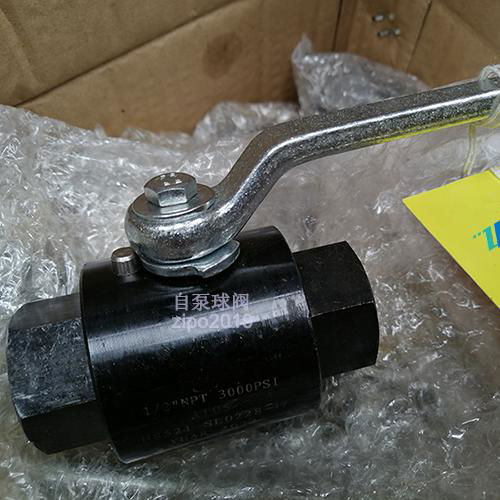

NPT thread cast or forge steel Floating ball valve
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!
Product features:
1. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe section
2. Simple structure, small volume and light weight.
3. It is tight and reliable. At present, the sealing surface material of ball valve is widely used in plastic, with good sealing performance, and also widely used in vacuum system.
4. It is easy to operate and fast to open and close. It only needs to rotate 90 ° from full open to full close, which is convenient for remote control.
5. The maintenance is convenient, the ball valve structure is simple, the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.
6. When the valve is fully open or closed, the sealing surface of the ball and the valve seat shall be isolated from the medium. When the medium passes through, the corrosion of the valve sealing surface will not be caused.
7. It has a wide range of applications, ranging from small diameter to several millimeters and large diameter to several meters, from high vacuum to high pressure.
Production specification:
Design and manufacturing standard: ASME B16.34, API608

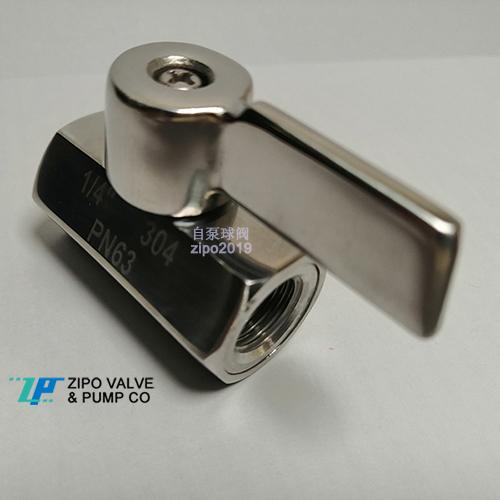

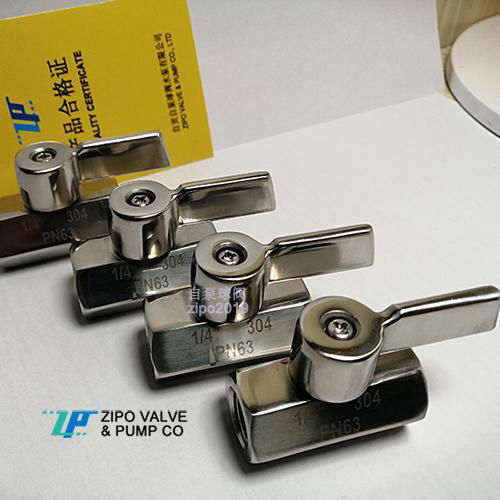

stainless steel threaded end mini ball valve for water purifier
Mini Ball Features:
threaded connection design, dewaxing precision casting valve body, sanitary design, Blow out-proof stem, compact structure, reliable sealing, simple structure, convenient maintenance, economical, easy to operate and maintain.
Mini Ball Valve is mainly used to cut off or connect the medium in the pipeline, when fully open or fully closed, the sealing surface of the ball and valve seat is isolated from the medium.
Nominal pressure PN16 (Class150lb) - PN100 (Class900lb)
Size range: NPS1 / 8 ~ NPS2
Applicable temperature range: - 29 ℃ ~ 120 ℃,
Applicable medium: water, oil, gas and some corrosive liquids
Valve body structure: one piece
Thread type: G · NPT, Pt, RP, RC, DIN 259 / 2999
Main material: 304316304l, 316L
Common models: Q11f-16P, Q11f-40P, Q11f-64P, Q11f-100P
Manufacturer: ZIPO VALVE & PUMP CO., LTD
