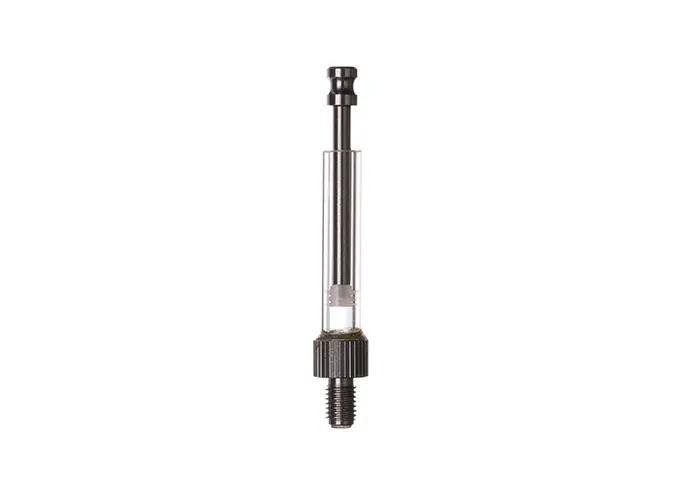

The 2HXX series precision china glass syringe is independently developed by Keyto and its main function is to achieve aspiration and dispensing with precise dosing. The syringe has a very high repeatability precision(CV) and accuracy of aspiration and dispensing. Its service life is up to 400,000 cycles of full strokes for Teflon (PTFE) pistons and up to 800,000 cycles of full strokes for UHMWPE pistons without compromising repeatability precision(CV) and accuracy.
Specifications of Glass Syringes
|
30 mm |
|||||||
|
Displacement |
100μL |
250μL |
500μL |
1ml |
2.5ml |
5ml |
|
|
Syringe end size/mm |
11 |
11 |
11 |
11 |
14.5 |
19 |
|
|
Syringe orifice size/mm |
0.6 |
0.8 |
0.8 |
1.9 |
1.9 |
1.9 |
|
|
Syringe thrust / N |
Teflon(PTFE) |
14 |
14 |
16 |
16 |
27 |
27 |
|
(Max) |
UHMWPE |
23 |
23 |
27 |
27 |
32 |
36 |
|
Accuracy |
1% |
||||||
|
Plunger connection |
XC |
||||||
|
Life cycle |
Teflon(PTFE)：400,000 cycles full stroke |
||||||
|
UHMWPE：800,000 cycles full stroke |
|||||||
|
Notes. |
|||||||
|
1. Aspiration and dispensing CV/accuracy are measured using deionized water at 10% of the total displacement. |
|||||||
|
2. The test environment is 21-25°C static wind environment. |
|||||||
|
3. The above syringe life cycle is measured under ideal conditions, the actual life cycles depend on the operating conditions. |
|||||||
|
60 mm |
||||||||
|
Displacement |
100μL |
250μL |
500μL |
1ml |
2.5ml |
5ml |
10ml |
|
|
Syringe end size/mm |
10.2 |
10.2 |
10.2 |
10.2 |
12.7 |
15.3 |
19 |
|
|
Syringe orifice size/mm |
0.8 |
1 |
2 |
2 |
2 |
2 |
2 |
|
|
Syringe thrust / N |
Teflon(PTFE) |
14 |
14 |
14 |
16 |
18 |
27 |
27 |
|
(Max) |
UHMWPE |
23 |
23 |
23 |
27 |
32 |
32 |
36 |
|
Accuracy |
1% |
|||||||
|
Plunger connection |
XL |
|||||||
|
Life cycle |
Teflon(PTFE)：400,000 cycles full stroke |
|||||||
|
UHMWPE：800,000 cycles full stroke |
||||||||
|
Notes. |
||||||||
|
1. Aspiration and dispensing accuracy are measured using deionized water at 10% of the total displacement. |
||||||||
|
2. The test environment is 21-25°C static wind environment. |
||||||||
|
3. The above syringe life cycle is measured under ideal conditions, the actual life cycles depend on the actual operating conditions. |
||||||||
|
4. 60mm stroke Teflon (PTFE) glass syringes are not available in 100μL zero dead volume. |
||||||||
|
5. 60mm stroke UHMWPE glass syringes are not available in 100μL or 250μL zero dead volume. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
Note: Please kindly reach out to our sales team for design and specification final clarification and confirmation. |
|
|
|
|
|
|
|
|
Reasons to Buy Keyto Glass Syringes
01
Available in a wide range of syringe volumes
Available in a wide range of syringe volumes: 100μL~10mL.
02
Extremely high and consistent metering precision and accuracy
Extremely high and consistent metering precision and accuracy over the life cycle.
03
Maintenance-free
Advanced borosilicate glass machining technology, rigorous inspection procedures, and unique sealing solutions to ensure maintenance-free over the life cycle of the glass syringes.
04
Good chemical resistance and high wear resistance
Good chemical resistance and high wear resistance of the materials of the components in contact with the reagents. Ensures that no replacement components are required during the life cycle.
05
Use of medical grade lubricant
Use of medical grade lubricant GESF96.
06
Maximum working pressure
Maximum working pressure: 0.3 MPa.
As a china glass syringe distributor, we can offer kinds of glass syringes for sale, and the glass syringe price is low, if you have needs to buy glass syringe, please contact us.
More kinds of miniature solenoid valves for medical devices, please visit our website.
