Railway Digital Rolling Track Gauge for Track Geometry Measurement

Model:GJC-JJG0
Brand:Lianjie
Origin:Made In China
Category:Transportation / Vehicles / Trains Railroads
Label:Railway Digital Roll , Rolling Track Gauge , Rolling Gauge
Price: US $4800 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Portable Rolling Track Gauge

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation(cant), check rail gauge and back to back distance measurement.It can be used for track inspection and fine adjustment of rail gauge.This product has the advantages of fast measuring speed, stable pushing rod, easy to carry,and night-time and tunnel work,legible even in direct sunlight are supported.It is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying.

Features

The benefits of our rolling gauge : 1. Measure the track gauge, cant without bend over your back. 2. Light weight : around 6.5kg , one person operation. 3. BT connection, data uploading and analysis system. 4. High working efficiency. Save your man power. ( 1 man with 1 rolling gauge = 4 man with 4 normal digital track gauge)

Specification

Model (1435mm)

GJC-JJG0

Track gauge

1410-1470mm

Superelevation measuring range

-185~+185mm

Display mode

OLED display and hand-held terminal display

Supply Voltage

DC3.4V~5.2V (rechargeable battery)

Superelevation division value

0.05mm

Working temperature

-30℃~+55℃

Insulation performance

>1MΩ

Track gauge division value

0.01mm

Superelevation division value

0.05mm

Track gauge max indication error

≤±0.25mm

Superelevation max indication error

≤±0.3mm

Length

<1700mm

Net Weight

≤6.5kg

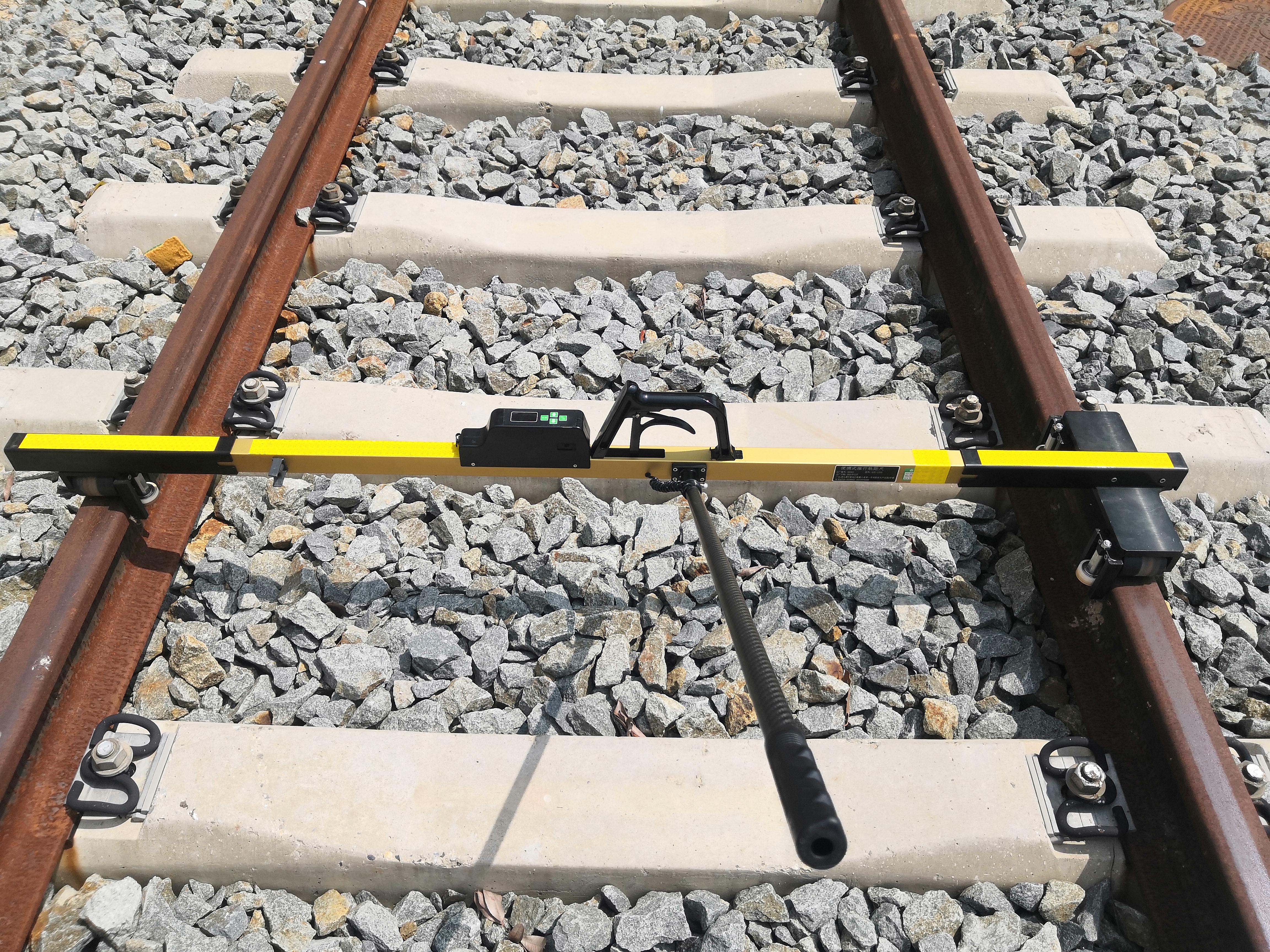

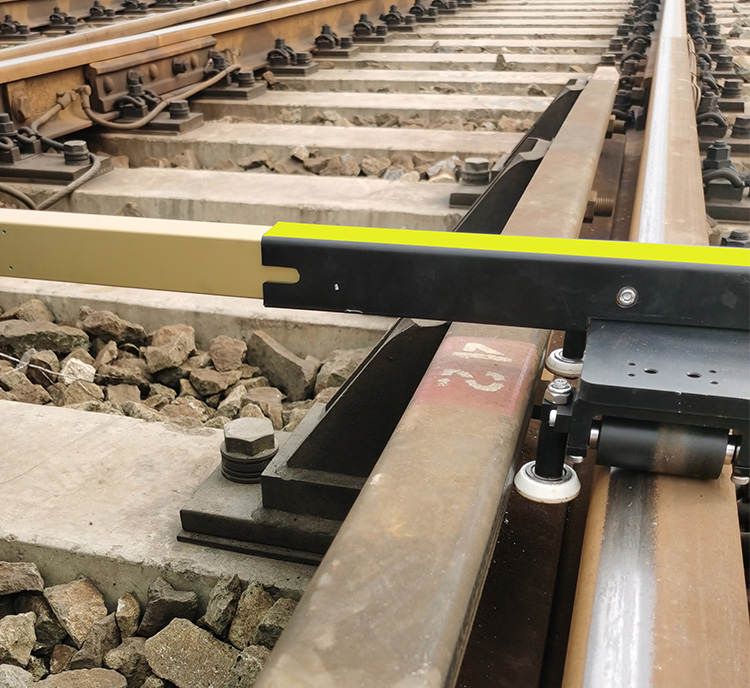

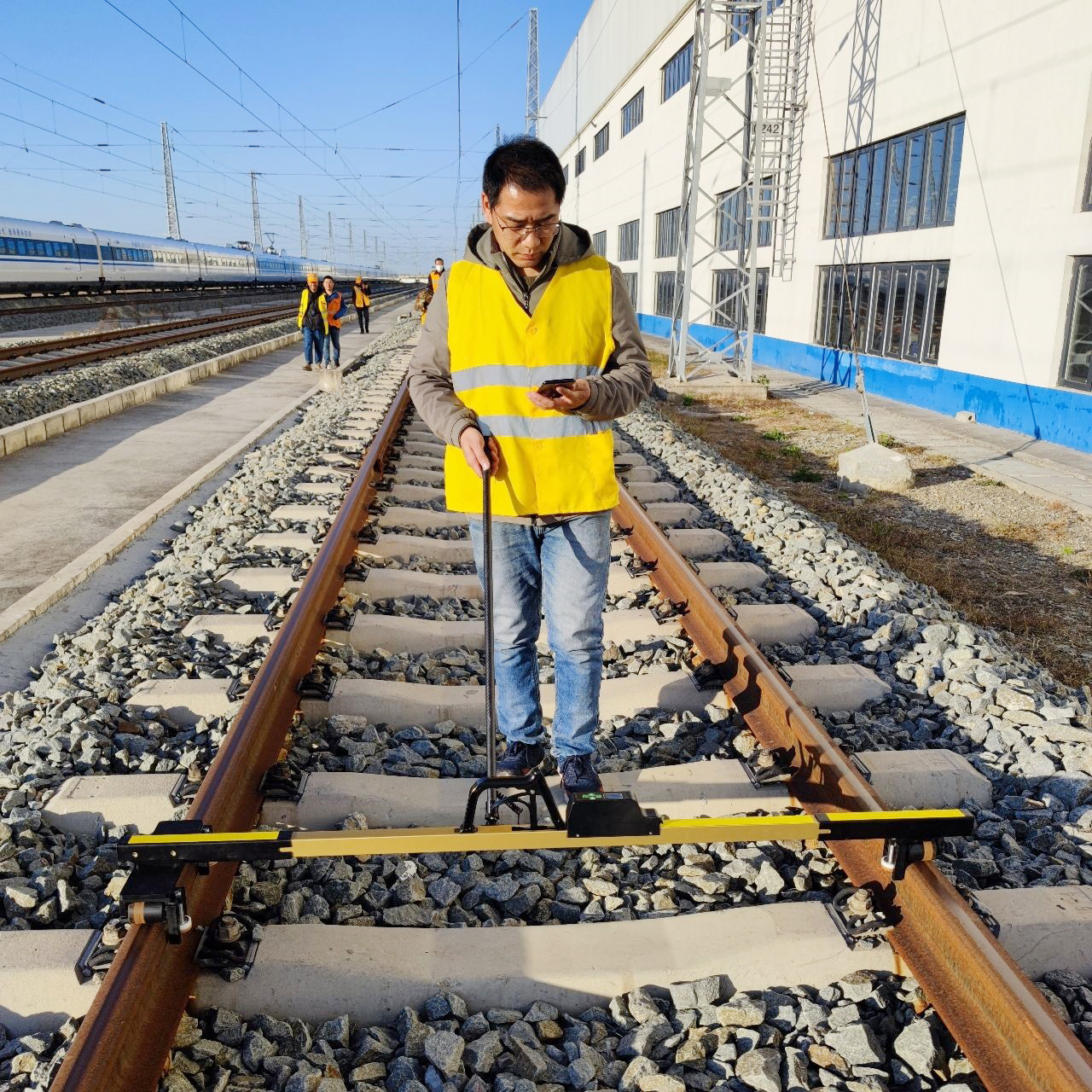

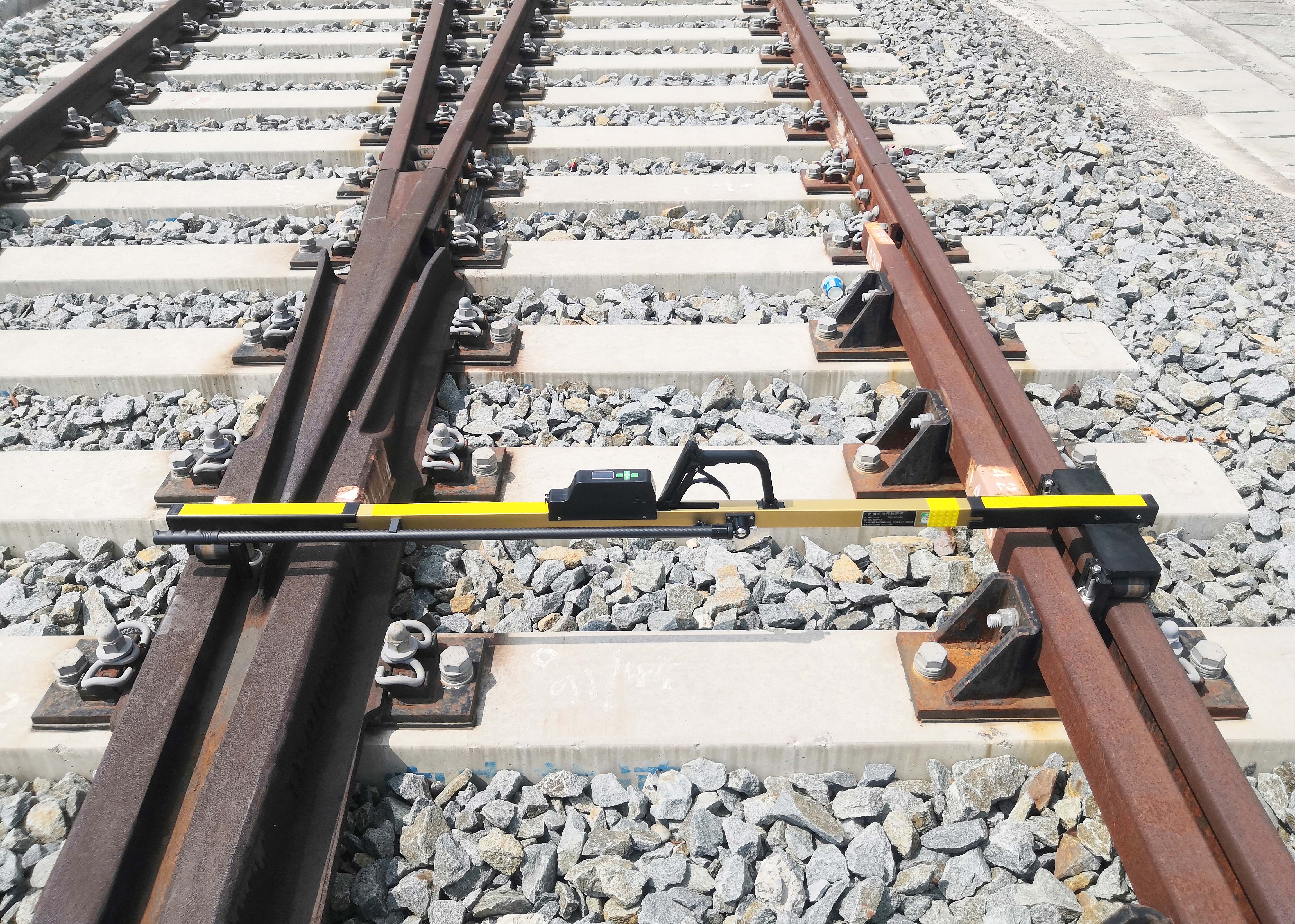

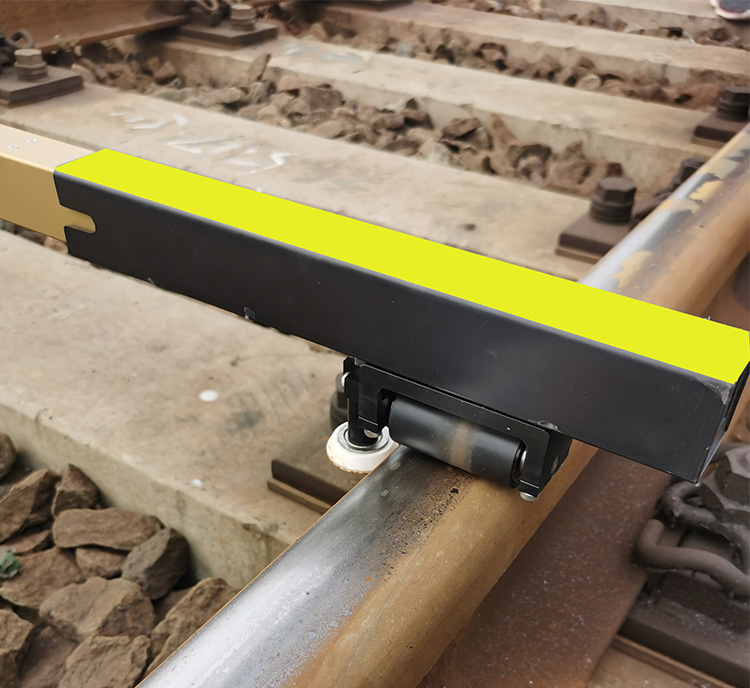

Details Images

Packing & Delivery

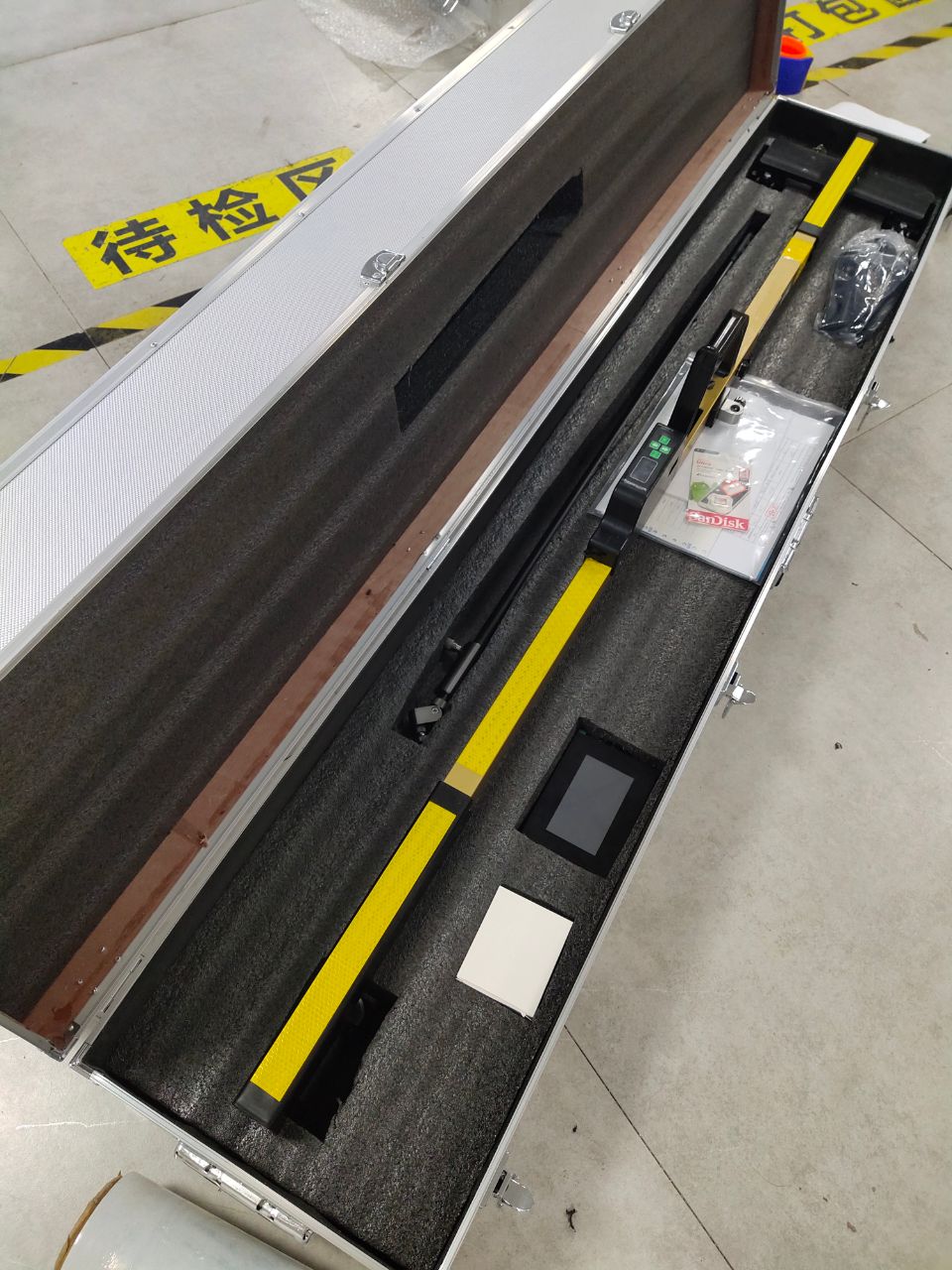

Aluminum box + pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG

Our Sales and Service Network

Certifications

Company Profile

 Wuhan Linkage track Co., Ltd. established in 2022, we are a rapidly growing company involved in the design and manufacture of an extensive range of equipment for the railway industry. We started our business from producing railway measurement device in 2003 and wide our product range to small rail machines like rail cutting machine ,rail grinding etc . Our company has expanded its operation to include three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou China. Now, Linkage family of brands provides a diverse and comprehensive product line for different markets and demands. Our products are sold in more than 50 countries and regions worldwide. Market acceptance is backed by ISO9001, European CE certification . As a Chinese mainland based company, we like to take our advantage of low cost and strive to offer you quality products with most competitive pricing with integrity.

View File​​


Payment Terms:Credit card, paypal, bank transfer

Product Image

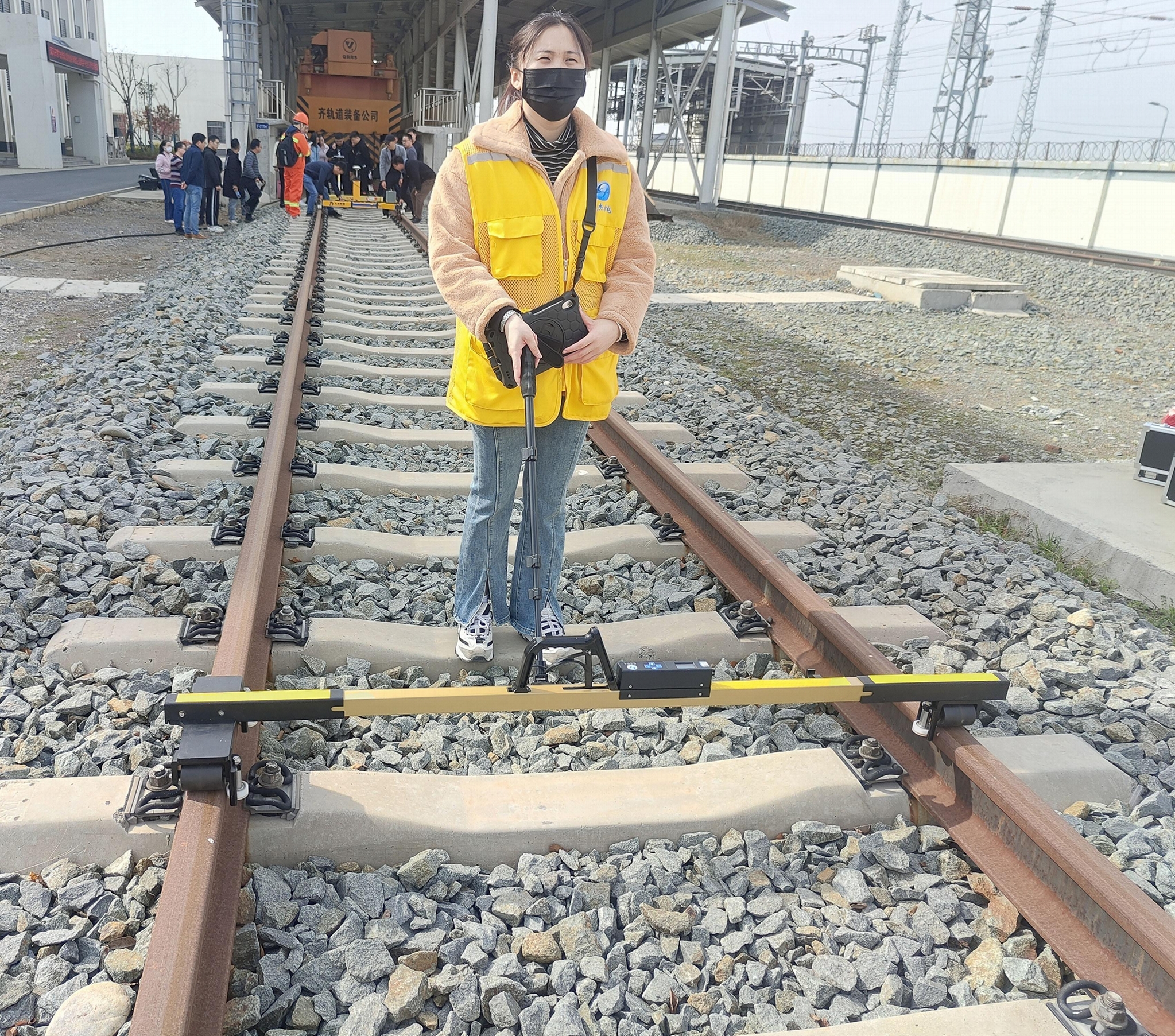

Railway Digital Rolling Track Gauge for Track Geometry Measurement 1
Img 1

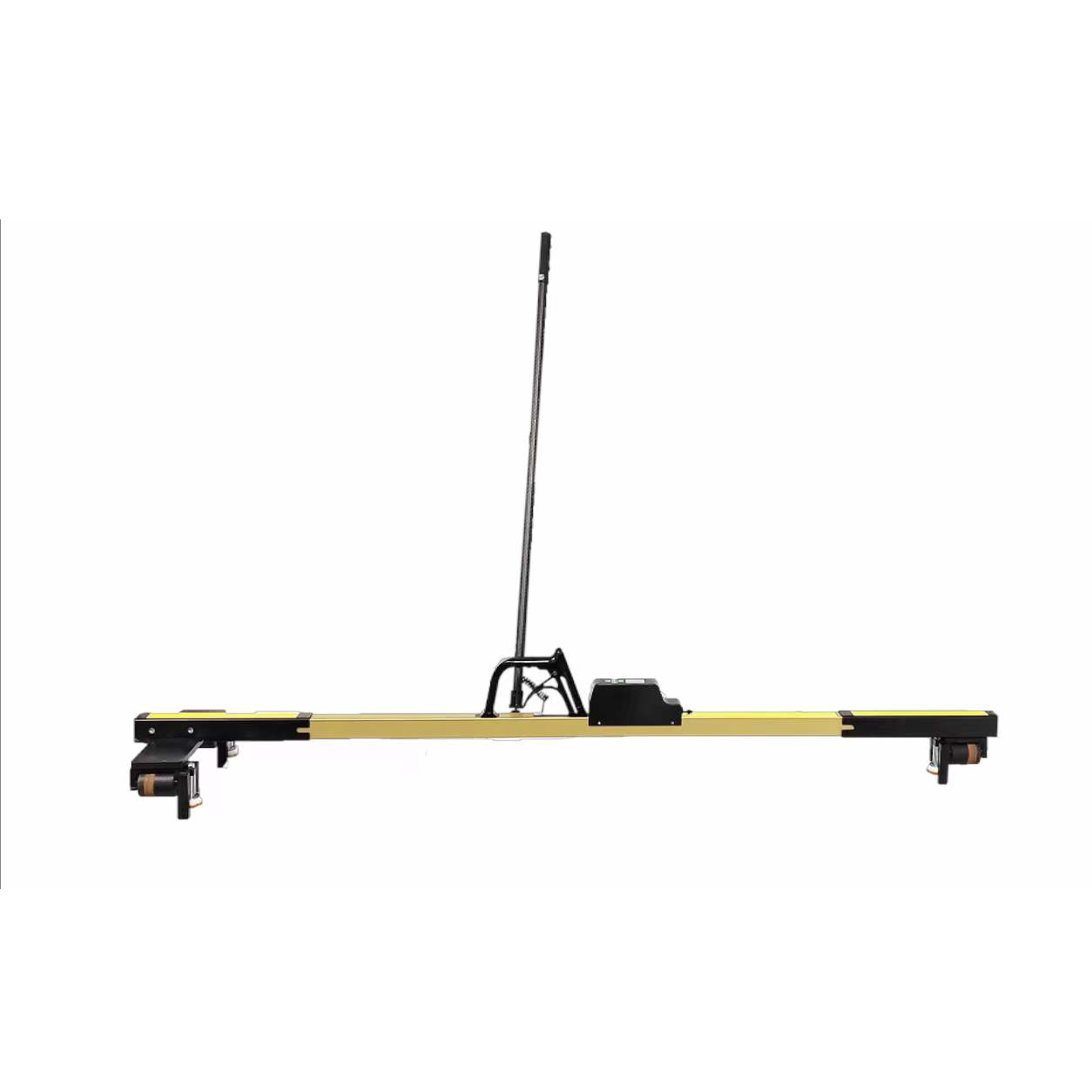

Railway Digital Rolling Track Gauge for Track Geometry Measurement 2
