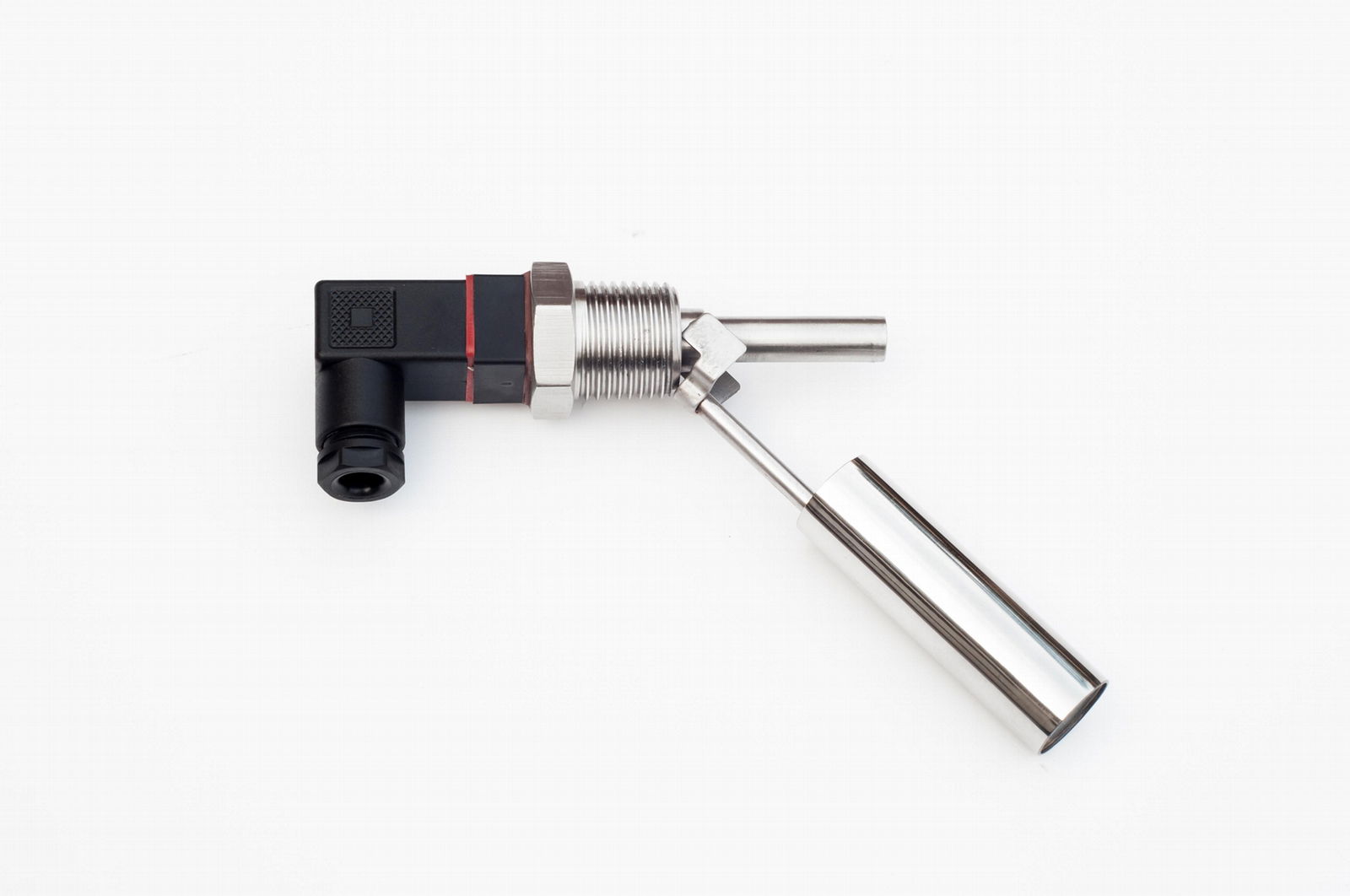

S.S level switch 1/2NPT sice mount UL certificated

Model:SEG-SS-1
Brand:Segmensensor
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Sense Organ
Label:UL level switch , liquid level switch , 1/2NPT mount level s
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

·Normally open or normally closed
·External quick-fit
·customer-defined connections Housing & body material
·Engineering plastics, food grade FDA certification available
·Cost-effective, high stability, 107 working long life
·Certifications for reliable quality
·Operating temperature:-40+85℃

Parameter:

Type 1 2 3
Maximum switching power 10W 50W 5W
Max. switching voltage (DC) 200V 350V 175V
Maximum Switching Voltage (AC) 140V 300V 125V
Maximum Switching Current (DC) 0.5A 0.7A 0.4A
Maximum Switching Current (AC) 0.5A 0.5A 0.28mA
Minimum Breakdown Voltage 250V DC 500V DC 200V DC
Maximum Load Current 1.0A 2.5A 0.5A
Maximum contact impedance 200mΩ 500mΩ 200mΩ
Minimum Insulation Resistance 10^8mΩ 10^8mΩ 10^8mΩ
Operating Temperature Range -40℃~+85℃ -40℃~+85℃ -40℃~+85℃



*Can be customized temperature to 200℃。



Working principal

The reed switch principle is commonly used in level sensors to detect the level of a liquid or solid material. Reed switches consist of two flexible metal reeds that are hermetically sealed within a glass capsule containing an inert gas1.

Application

Factory and Company





Segmensensor Co., Ltd. is an innovative enterprise focusing on industrial grade photoelectric sensors and level sensors, mainly R&D photoelectric position measurement and level measurement sensors, providing one-stop solutions for 3C electronics, new energy, semiconductor process, medical electronics and service robot industries. Our sensor to fulfillment the discrete industrial customers in high temperature, electromagnetic interference, confined space, light  reflection, and other use scenarios for the position, distance, displacement, liquid level sensor’s application. our engineers have more than 15 years of rich experience, our factory through quality management system ISO:9001: 2005, occupational health and safety management certification, the implementation of RoHS environmental protection  directive, the series of products have passed CE, UL, RoHs Mark international certification, product quality performance Safe and reliable. enables global users to become the industry leader in smart industry and the Internet of everything in the industrial age,.



CERATIFICTIONS





















Packing & Shipping





Q&A

  • Q:What payment method your company accepts?

A:We accept T/T(Bank Transfer),L/C,Western Union and Paypal.f any other payment method is more convenient to you,please tell us by including a note while making payment.

  • Q:Can you do drop shipping?

A:Yes,we can help you ship the goods to any address you want.We will not put any catalogue or any document with our company info in it if you requested.

  • Q: How long for the production time?

A: Normally in stock, or 2 weeks depends on order quantity.

  • Q: You said we can use our own logo? What's the MOQ if we wanna do this?

A:Yes,100pcs MOQ

  • Q: How to contact you guys?

A: You can contact us online or send us email:

   technical supportkallie.jones@segmensensor.com

  product manager: info@segmensensor.com
