Ls Basket Mill Machine for Paint&Pigment Grinding

Model:RL-LS
Brand:RUILE
Origin:Made In China
Category:Industrial Supplies / Chemical Machinery
Label:Ls Basket Mill , Paint Basket Mill , Pigment Basket Mill
Price: US $16800 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Foshan Ruile Machinery Co., Ltd.

Free MemberGuang Dong - China
Last Online:22 Apr, 2023

Product Description

Product Description

 Basket mill is an ideal equipment to produce inks,coatings,pigment dispersion,with its owned milling technology. Basket Mill is wet milling machine. It is suitable for industries having high fineness requirement such as paint, printing ink, pigment, color paste, cosmetic, pesticide, pharmacy etc. The machine has altered traditional production processing by integrating dispersing and milling two processes into one, which reduces production process. No pump nor valve is required. One machine and one container can implement dispersing and milling together, which increases efficiency greatly and reduce materials waste.


Application

  • Basket Mill is wet milling machine. It is suitable for industries having high fineness requirement such as paint, ink,  pigment, color paste, coating material,cosmetic, pesticide, pharmacy  etc.



Our Advantages

--Adopts hydraulic lifting;
--Highest product qualities with exact productability;
--Simple and user-friendly machine design;
--Infinitely variable speed control by frequency converters with vector control;
--Quick detachable basket for repairing and clean out;
--Grinding process with high energy density.



Product Parameters



Type LS-3 LS-10 LS-20 LS-40
Paste capacity (L) 2~3 100~150 200~500 400~1000
Main motor power (kw) 0.75 11 22 30~37
Main shaft speed (r/min) 0-3000 0-800 0-600 0-500
Range of up and down (mm) 260 800 900 1050
Oil pump power (kw) - 0.75 1.1 1.5
Weight (kg) 80 1500 2500 2800
Overall dimension (mm) 350×250×700 1860×710×1730 2145×860×1955 2600×920×2100



Vertical Type Wet Grinding  mill And Basket sand mill for ink making
Explosion-proof motor: pure copper wire is quiet and efficient, with a service life of more than 10 years

Frequency conversion speed regulation: high control accuracy, fast response, effectively protect overload and overheating

Hydraulic engineering cylinder: stable rise and fall, no mechanical loss, prevent oil leakage

Grinding basket design: prevent clogging beads, easy to clean


Payment Terms:TT / LC
Packing:Wooden Case
Lead Time:20-30days

Product Image

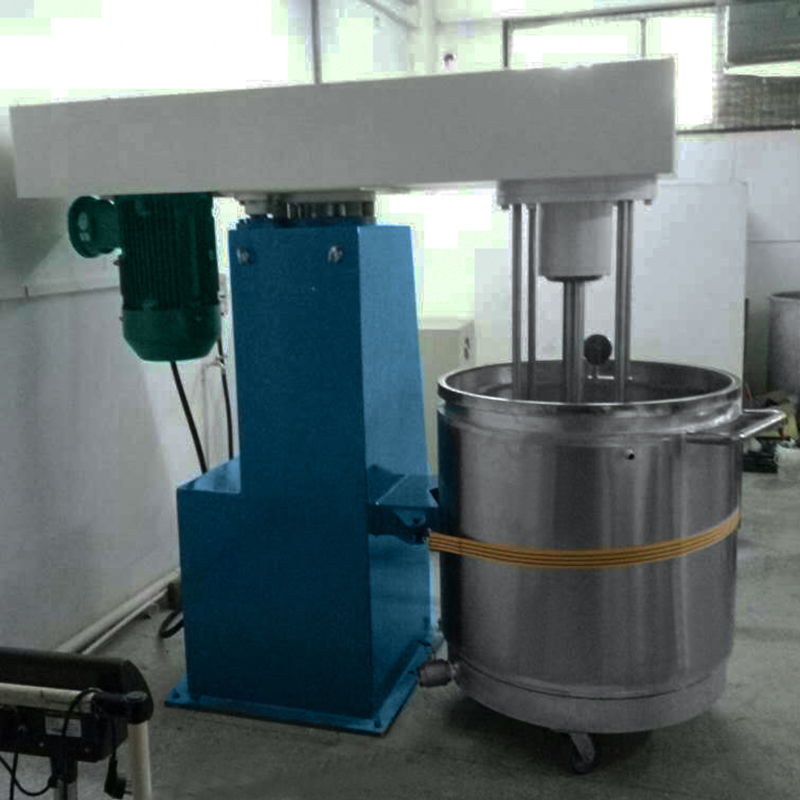

Ls Basket Mill Machine for Paint&Pigment Grinding 1
Img 1

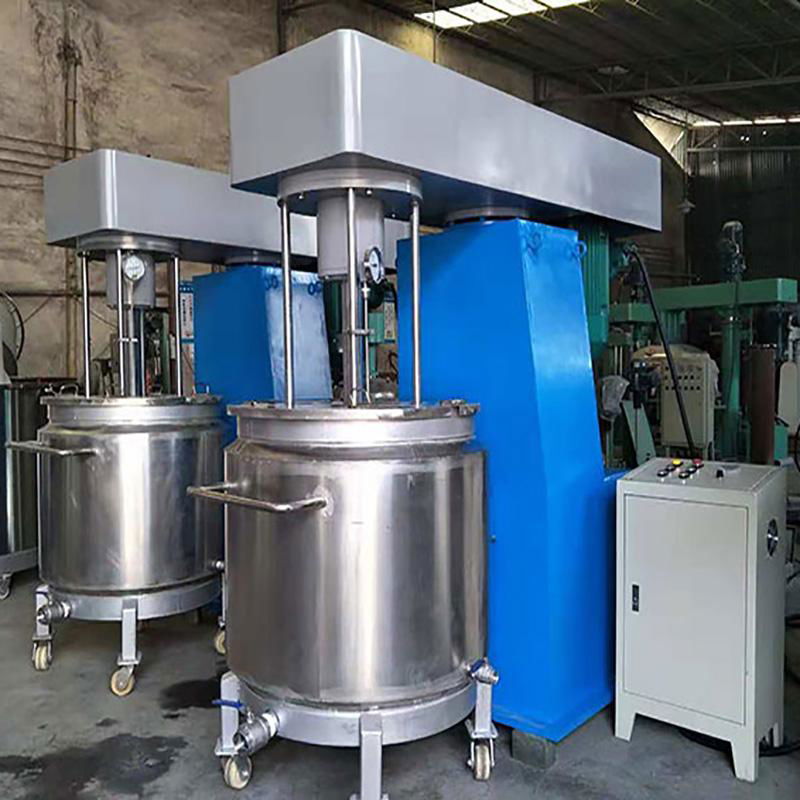

Ls Basket Mill Machine for Paint&Pigment Grinding 2
Img 2
Ls Basket Mill Machine for Paint&Pigment Grinding 3
Img 3
Ls Basket Mill Machine for Paint&Pigment Grinding 4
Img 4
Ls Basket Mill Machine for Paint&Pigment Grinding 5
Img 5
