YW5699B 10.5" Android tablet camera for microscope
Product Description
Features
- 10.5" Touch Screen Android Pad + 4K Digital Camera, All-in-One
- 8.0M 1/1.8" CMOS Digital Camera Resolution 3840*2158@30FPS
- Android 11 Tablet Built-in Memory RAM 2G + ROM 16G For Photo & Video Record
- USB3.0+HDMI+LAN Output, Touch Screen + USB Mouse & Keyboard Control
- Open & See Microscope Image Directly, Built-in Software For Measure & Analysis
| |
|
10.5" Touch Screen Android Pad Digital Camera, 8.0M
|
| |
Category
|
HD All-in-One Android 11 System Tablet Digital Camera
|
|
Sensor
|
1/1.8” CMOS Sensor
|
|
Effective Pixel
|
8M, 4K
|
|
Screen
|
10.5” High-Definition Touch Screen
|
|
Operation System
|
Android 11
|
|
WIFI
|
2.4GHz/5GHz Dual-band WIFI, Support WIFI6
|
|
Bluetooth
|
Bluetooth 5.0
|
|
Output
|
USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port
|
|
Pixel size
|
2.0um*2.0um
|
|
Power
|
DC-12V/2A
|
|
Function
|
Basic Function
|
Android Interaction, Installed S-Eye2.0 Measure Software
|
|
Image Adjustment
|
Brightness, Contrast, Saturation, Color Temperature
|
|
Camera Function
|
Mirror, Flip, Freeze, Black and White
|
|
UI Interface
|
Support User-friendly Mouse & Keyboard, And Touch Screen Operation
|
|
|
8.0M Image Capture
|
|
Video
|
1080P Video
|
|
Storage
|
Still Photo And Video Recording, Picture Preview
|
|
Marking
|
Point Coordinates, Crosshairs, Coordinate System, Text Annotations
|
|
Length Measurement
|
Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance
|
|
Geometric Measurement
|
Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle
|
|
Geometric Area Measurement
|
Polygon, Rectangle
|
|
Measurement System
|
Built-in S-Eye Software
|
|
Package
|
Box Size
|
237*169*10.5mm
|
|
Weight
|
0.6kg
|
|
Accessory
|
DC-12V/2A Power Adapter
|
|

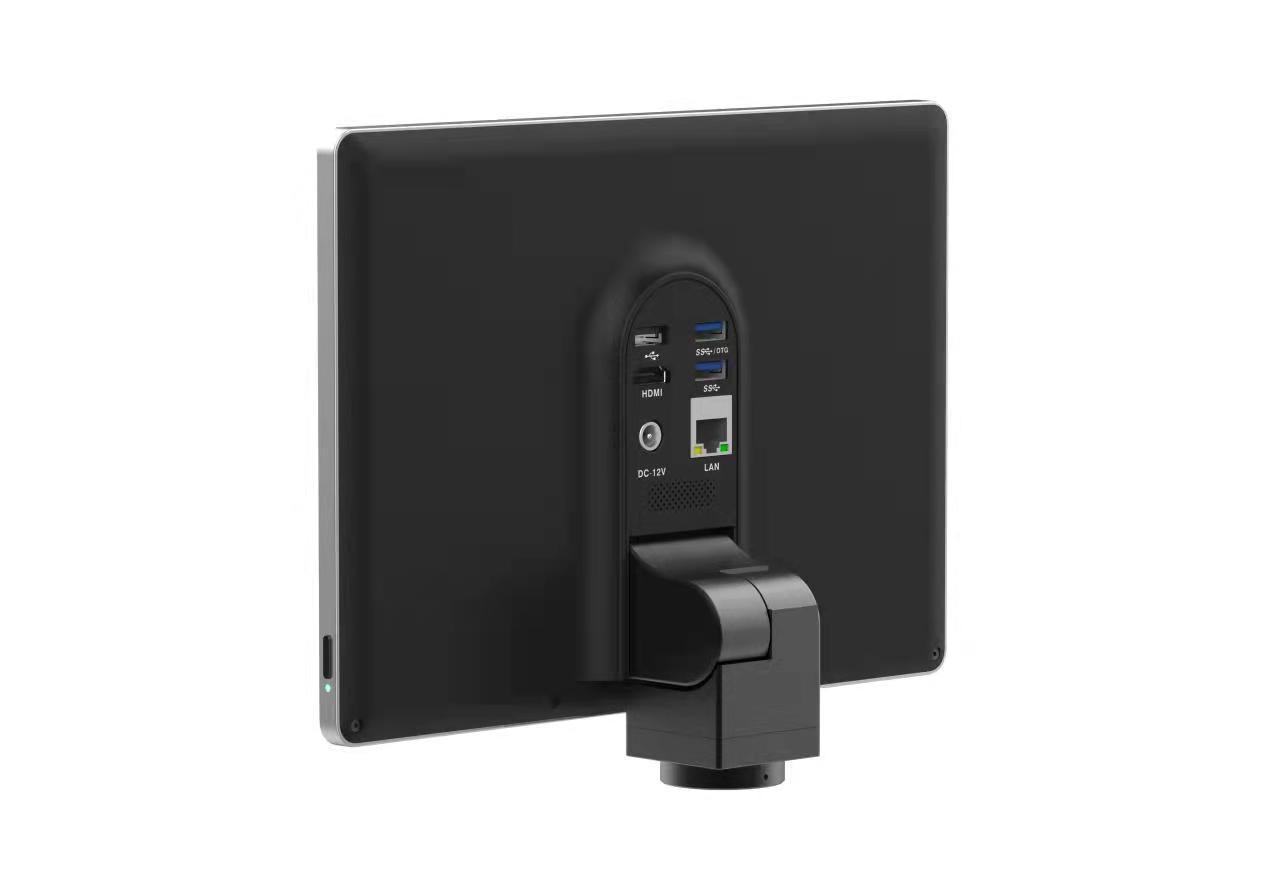

Product Image
