Product Description

Stainless steel industry Bag Filter Housing

Inlet/Outlet

DN25~DN300

Working Pressure

1MPa~6.4MPa

Working temp

-30℃~200℃

Filter rating

10~300mesh

Flange

HG20592、HG20615、ASME B16.5 or customized

Housing material

Carbon steel, SS304, SS316, SS316L or customized

Bag shell

1＃, 2＃，3#，4#

Seal

Nitrile rubber, fluorine rubber, PTFE, etc.

Whether you need to filter municipal water, industrial wastewater, various types of viscous liquids, or specific water filtration for certain industries, YUAN ffers bag filters with advanced filtration technology in multiple sizes and flow rates.

Bag filters are suitable for working scenarios that require high dirt-holding capacity and flow rate.

The bag filter is cost-effective and has a higher dirt-holding capacity. Its housing is made of carbon steel or stainless steel. The filter uses a newly designed lid that can be easily removed, reducing the time required to clean and replace the filter bag.

YUBO customizes bag filters in various sizes, from a single bag to multi-bag, in multiple sizes and construction materials; YUAN an also meet the project specifications of different industries, including filtration systems and filtration solution design.

Single bag filter and multi-bag filter, how to choose?

Single-bag filters are ideal for small applications requiring low flow rates and solids collection. Compared to multi-bag filters, single-bag filters are very economical and simpler.

Conversely, multi-bag filters are required for higher flow rates and solids loading applications. Since this filter consists of multiple bags, it can accommodate a larger dirt capacity.

Single bag filter and multi-bag filter, how to choose

YUBO offers various bag filters for your particular application

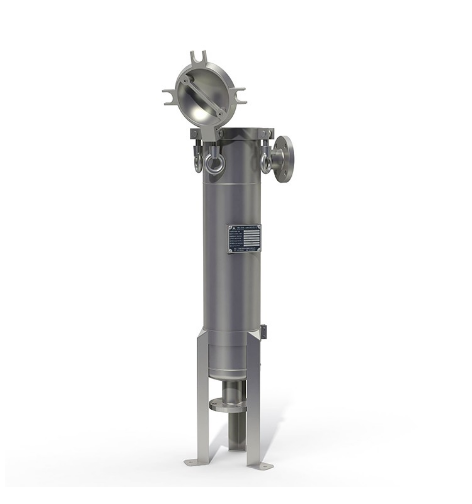

1. Single-bag filter

Specification
Filter bag		No.1, No.2, No.3, No.4				Inlet/Outlet		1-1/2”
Filter rate		0.5～500μm				Drain		1/4”
Working pressure		0.1～2.5Mpa				Working temp.		4～200℃
Surface		Painting, sandblasting, polishing				Inlet/Outlet joint		Thread or flange
Design standard		ASME、 GB150、HG/T21637 or as per customer’s request
1.Filter rate：0.1,0.2,0.3,0.5,1,5,10,15,25, 50,100,200,300, 400,500,600 Microns 2.Filter bag No.2 3.Applicable media: water, chemicals, gases and other materials, including flammable and explosive 4.Housing material: carton steel,SS304,SS316L Duplex 2205,250, or as per customer’s request
Model			Flow rate	Cartridge height	Height	Diameter	Bag diameter		Inlet/Outlet
	Bag		m3/h	(mm)	(mm)	(mm)	(mm)
YDL1	1		20	500	720	Φ204	Φ170		1"-4"
YDL2	2		40	700	1070	Φ204	Φ170		1"-4"
YDL3	3		6	350	430	Φ114	Φ97		3/4"-2"
YDL4	4		12	500	580	Φ114	Φ97		3/4"-2"

2. Multi-bag filter

Specification
Model	Bag qty	Filter area (m2)	Max flow rate (m3/h)	Pressure(Mpa)	Inlet/Outlet
YDD-2	2	0.9	50	1.0	2-1/2"
YDD-3	3	1.35	75	1.0	3"
YDD-4	4	1.8	100	1.0	4"
YDD-5	5	2.25	125	1.0	5"
YDD-6	6	2.7	150	1.0	6"
YDD-8	8	3.6	200	1.0	6"
YDD-9	9	4.05	225	1.0	8"
YDD-10	10	4.5	250	1.0	8"
YDD-12	12	5.4	300	1.0	10"
YDD-16	16	7.2	400	1.0	12"
YDD-18	18	8.1	450	1.0	12"
YDD-24	24	9.0	600	1.0	12"
Filter rate：0.1,0.2,0.3,0.5,1,5,10,15,25, 50,100,200,300, 400,500,600 Microns Filter bag No.2 Applicable media: water, chemicals, gases,and other materials, including flammable and explosive Housing material: carton steel, SS304,SS316L Duplex 2205,250, or as per customer’s request

3. Duplex bag Filter

4. Skid bag filter system

Application of bag filters

- Petrochemical Industry

- Oil and gas industry

- Public water, wastewater, cooling water

- Injection water, ballast water, pipeline flushing

- Food industry

- Agricultural sector and greenhouse construction

- Wastewater treatment

- Waste treatment industry

- Chemical industry

- Iron and steel industry

- Automotive industry

- Other industries

Contact and Advice

For advice and custom bag filters or filtration solutions please contact us directly for a quote. Tel: 86-311-85955658, Email: admin@yuanlvfilter.com

Our team of filter experts is available 24/7.

We have specialized in industrial filtration for more than 10 years.
