A ball valve with an SAE (Society of Automotive Engineers) split flange adapter.

High pressure range up to 210 bar and 420 bar

Available in sizes DN13-DN25(1/2” to 1”).

Flange connections to ISO 6162-1 and 6162-2.

The ball and stem material is carbon steel or stainless steel.

The main valve body is made of steel and the ball seat is made of POM.

O-rings are available in NBR or FPM.

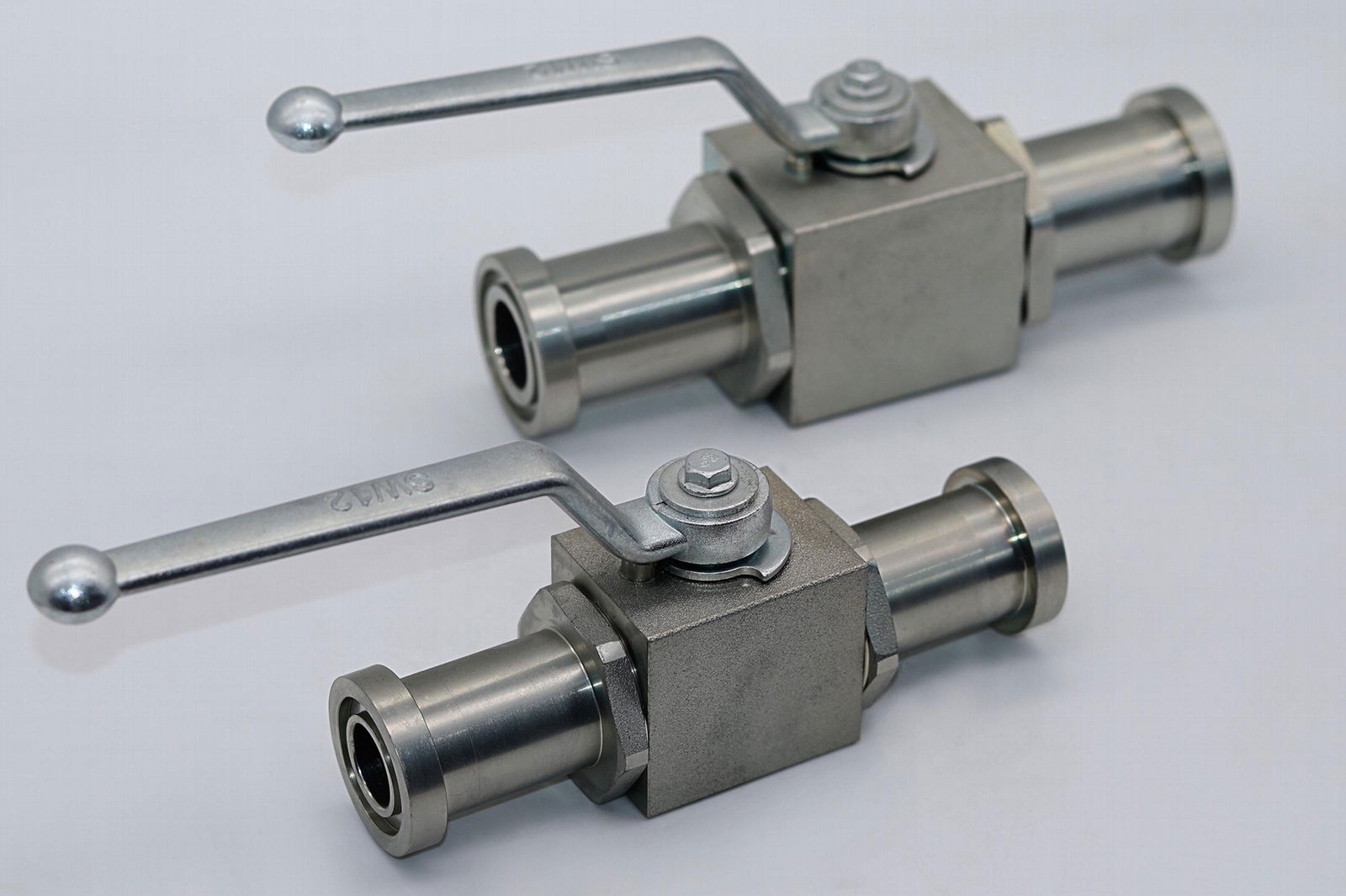

Ball valve with SAE split flange adapter steel

BKH / BKHP-SAEFS

BKH-SAE-FS-210-13-1 1 2 3-*

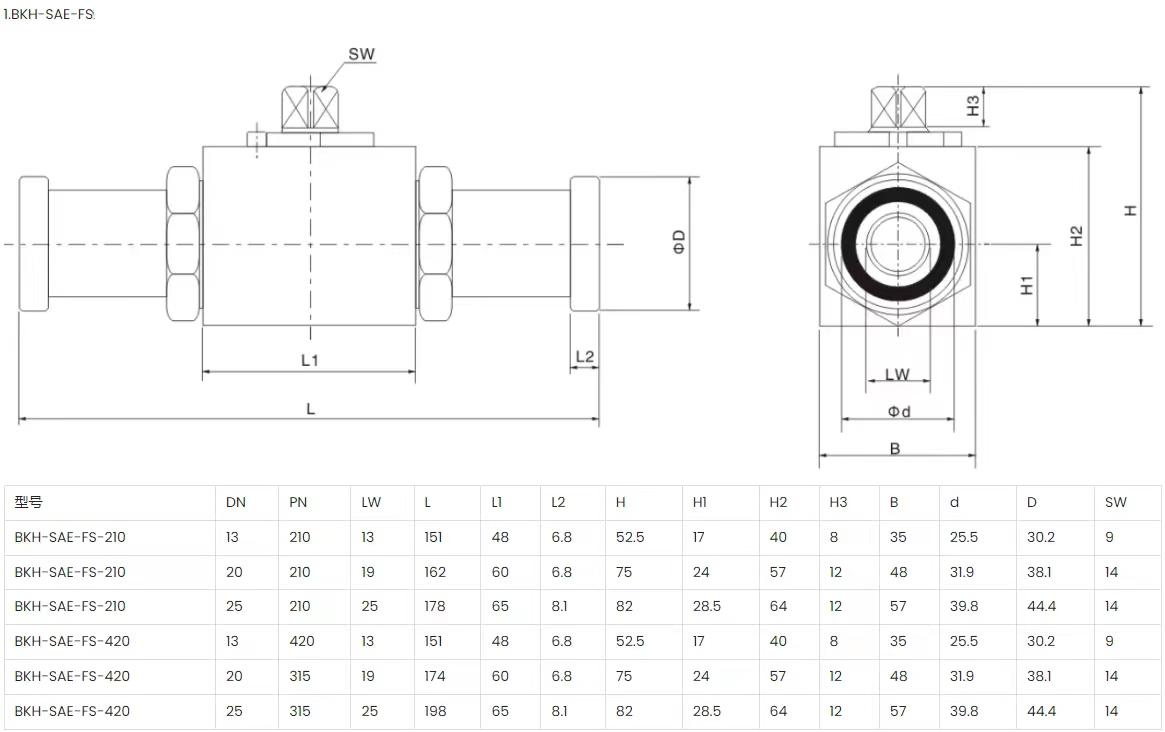

a. BKH-SAE-FS is Square Valve Body

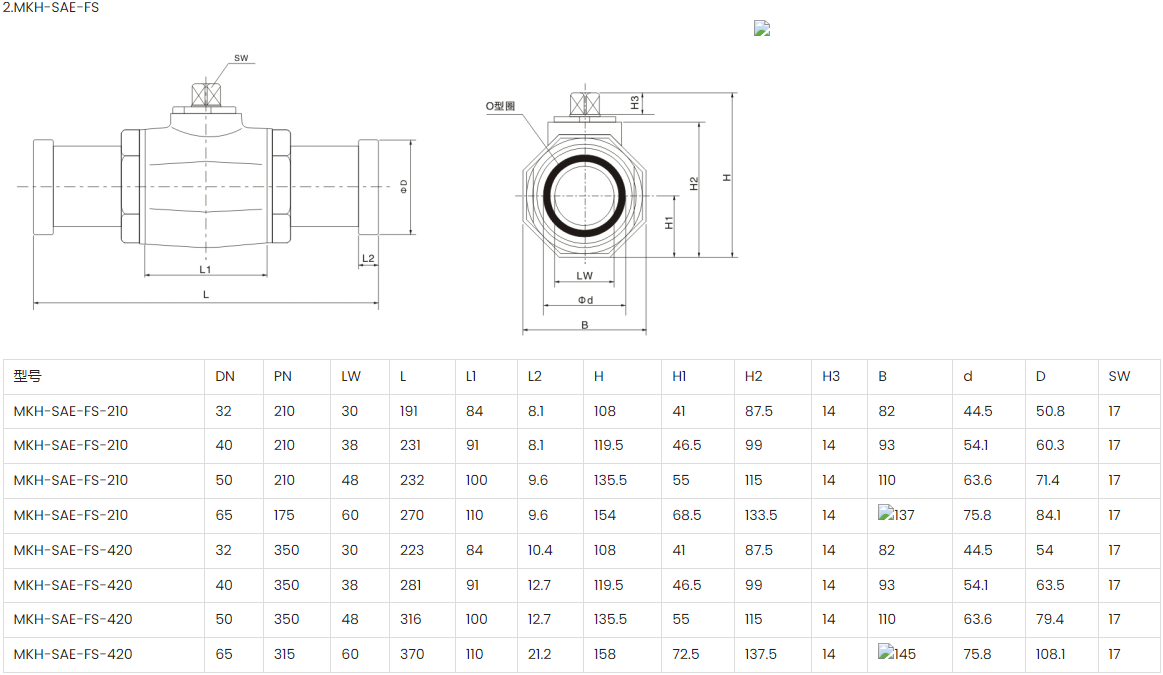

   MKH-SAE-FS is Forged valve body

b. High pressure range up to 210 bar and 420 bar

c. 13 is nominal diameter, 20 is available.

d. 1 or 2 means that the valve body and flange material of BKH-SAE-FS and MKH-SAE-FS is carbon steel.

e. 1 represents the ball and stem material is carbon steel.

    2 represents the ball and stem material is stainless steel.

f. 2 means that the sealing material at the ball is POM.

   4 means that the sealing material at the ball is PTFE.

g. 3 means that the sealing material at the stem and joint is NBR.

    5 means that the sealing material at the stem and joint is FPM.

h. “*” indicates that the surface is phosphated.

A ball valve with an SAE (Society of Automotive Engineers) split flange adapter is a type of valve commonly used in fluid handling systems, particularly in hydraulic applications. This type of valve is designed to control the flow of fluid (liquid or gas) through a pipe or tubing system.

Available in sizes DN13-DN25(1/2” to 1”).

Flange connections to ISO 6162-1 and 6162-2.

The combination of steel for the main valve body and POM for the ball seats makes this type of ball valve suitable for a wide range of fluid handling applications.And O-rings are available in NBR or FPM.These materials have a minimum temperature of -20 degrees Celsius and a maximum temperature of 100 degrees Celsius.
