ACREL ADL200 SINGLE PHASE ELECTRIC METER WITH MODBUS 1
  • ACREL ADL200 SINGLE PHASE ELECTRIC METER WITH MODBUS 1

ACREL ADL200 SINGLE PHASE ELECTRIC METER WITH MODBUS

Model:-
Brand:-
Origin:-
Category:Electronics & Electricity / Other Electrical & Electronic
Label:Acrel ADL200
Price: US $100000 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Single-phase electronic energy meter Acrel ADL200 is mainly used to measure single-phase active energy of low-voltage network, and can measure voltage, current, power and other electric quantities at the same time, and can be equipped with RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize sub-item electric energy measurement, statistics and analysis for different areas and different loads.



Specification of ADL200 Single Phase Modbus Power Meter With Modbus

Input voltage

Reference voltage

AC 220V

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A

Maximum current

80A

Starting current

4‰Ib

Consumption

<4VA

Measurement performance

Accuracy of measuring

1 class

Range of measuring

000000.00~99999999kWh

Clock accuracy

Error≤0.5s/d

Active pulse

Pulse width

80±20ms

Pulse constant

1000imp/kWh

Communication

Interface

RS485(A+B-)

Connection mode

Shielded twisted pair conductors

Protocol

MODBUS-RTU



Features of ADL200 Single Phase Electric Power Meter China With Modbus

01

The product has the advantages of high precision, small size and convenient installation;



02

It can integrate common power parameter measurement and power measurement and assessment management, and provide various power data statistics for the last 48 months;



03

It has 2~31 sub-harmonic and total harmonic content detection;



04

It has RS485 communication interface, which can choose MODBUS-RTU or DL/T645 protocol.




Payment Terms:T/T,L/C,D/A,D/P

Product Image

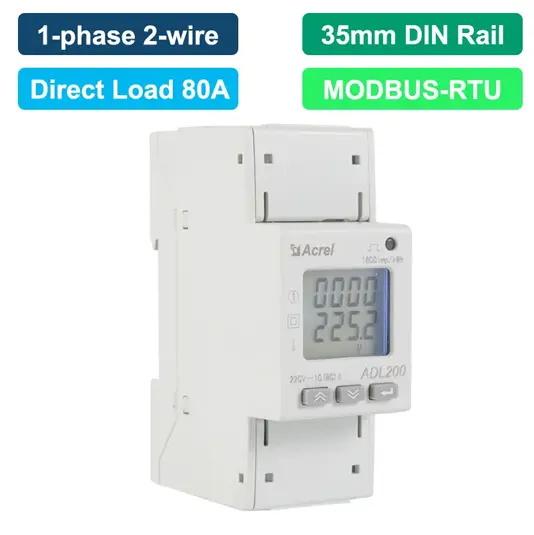

ACREL ADL200 SINGLE PHASE ELECTRIC METER WITH MODBUS 1
