| Model: | SM/MM/APC/AQUA |
|---|---|
| Brand: | Oryarwa |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | FC Adapter , Fiber Optic , RoHS |
| Price: |
US $0.38
/ pc
|
| Min. Order: | 1000 pc |
| Last Online:21 Aug, 2023 |
Product Description

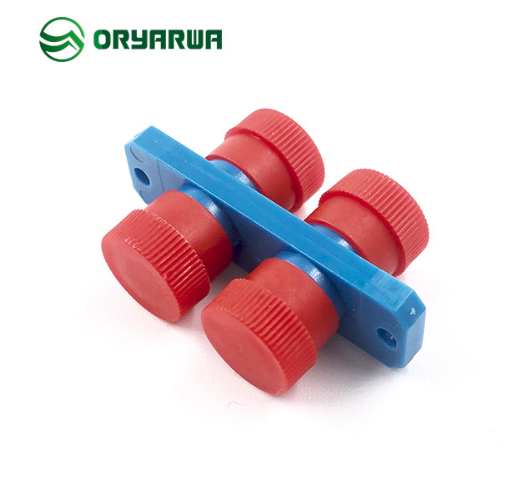

Flange Plastic Housing Duplex FC Fiber Optic Adapter Multimode
Flange Plastic Housing Duplex FC Fiber Optic Adapter
Detailed Product Description:
|
Product Name |
FC Simplex Plastic Fiber Optic Adapter |
Color |
SM/MM/APC/AQUA/ OM4 |
|---|---|---|---|
|
Mode Type |
Singlemode, Multimode |
Insertion Loss |
≤0.2dB |
|
Sleeve Pull Force |
2-5.9N |
Durability |
≤0.2dB( 500 Times) |
|
Operating Temp. |
-40℃～+80℃ |
Standards |
IEC61754-13-2006 / IEC613000 |
Environmental and Mechanism:
|
Properties |
Test Condition |
Conformance |
Test Result |
|---|---|---|---|
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
500 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-12 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-6 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +85ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%RH, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Features:
> Simple and easy method to quickly interconnect
> With excellent reliability and >Interchangeability;
> Available in Flanged or Flangeless optional
> High interchangeability
> High temperature stability
> Low Splicing Loss>RoHS copmliant.
Fiber Optic Adapter Application:
> Widely used in FTTH access network.
> Telecommunication Networks
> CATV Networks Data communications Networks
> Local Area Networks
