| Model: | - |
|---|---|
| Brand: | Lulin |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Fastener & Fitting |
| Label: | Fire fitting , hardware , Metal Building Mater |
| Price: |
US $3
/ pc
|
| Min. Order: | 1 pc |
| Last Online:30 Oct, 2023 |
90 degree 45 degree 22.5 degree Elbow
Ductile Cast 90° Elbow:
Nominal Size(mm/in) 50/2 65/2½ 65/2½ 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8 250/10 300/12
Pipe O.D Pressure(mm) 60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625 273/10.75 323.9/12.750
Working PSI/MPa(mm/in) 300/2.07

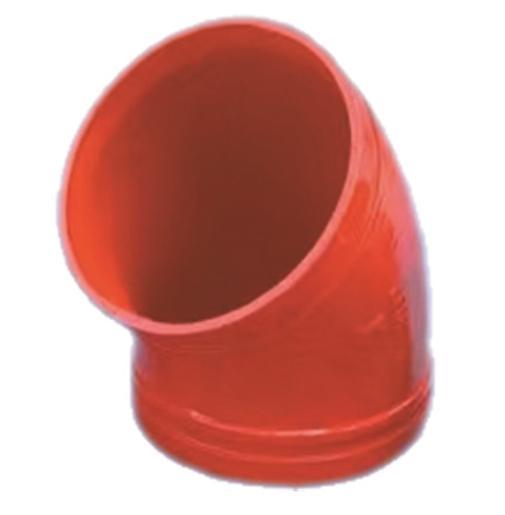

Ductile Iron 45 degrees elbow:
Nominal Size(mm/in)
25/1 32/1¼ 40/1½ 50/2 65/2½ 65/2½ 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8 250/10 300/12
Pipe O.D Pressure(mm)
33.7/1.327 42.4/1.669 48.3/1.9 60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625 273/10.75 323.9/12.750
Working PSI/MPa(mm/in) 300/2.07
Ductile Cast 22.5 degrees Elbow:
Nominal Size(mm/in)
50/2 65/2½ 65/2½ 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8
Pipe O.D Pressure(mm)
60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625
Working PSI/MPa(mm/in) 300/2.07
Ductile Iron 11.25 degrees elbow:
Nominal Size(mm/in)
50/2 65/2½ 65/2½ 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8
Pipe O.D Pressure(mm)
60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625
