Slotted Din Rail Channel Roll Forming Machine For Sale & Gear transmission more compact structure for making sure din rail channel fabricating straightening process.

https://www.superdamc.com

Steel din rail mounting rack roll forming machine manufacturer

Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.

YX7.5-35  Servo Motor Roll Forming Machine List

Uncoiler

1) Type,Manual & not power

2) Parameter

1）Passive, discharge

2） Coil weight,<   1T

3）Coil inner D., φ470mm-φ530mm

4）Max. Width., 200mm

5)   Thickness <1.6mm

Guide device

Switch rail roll forming system data

5.1  Forming Roller：8 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel：T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 4-6 m/min。

5.4  Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5  Motor power：3KW。
5.6  Main Roller ：￠65mm，45 #。
5.7  Equipment base: 40# H type using welded steel plate.
5.8  Transmission: Gear
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

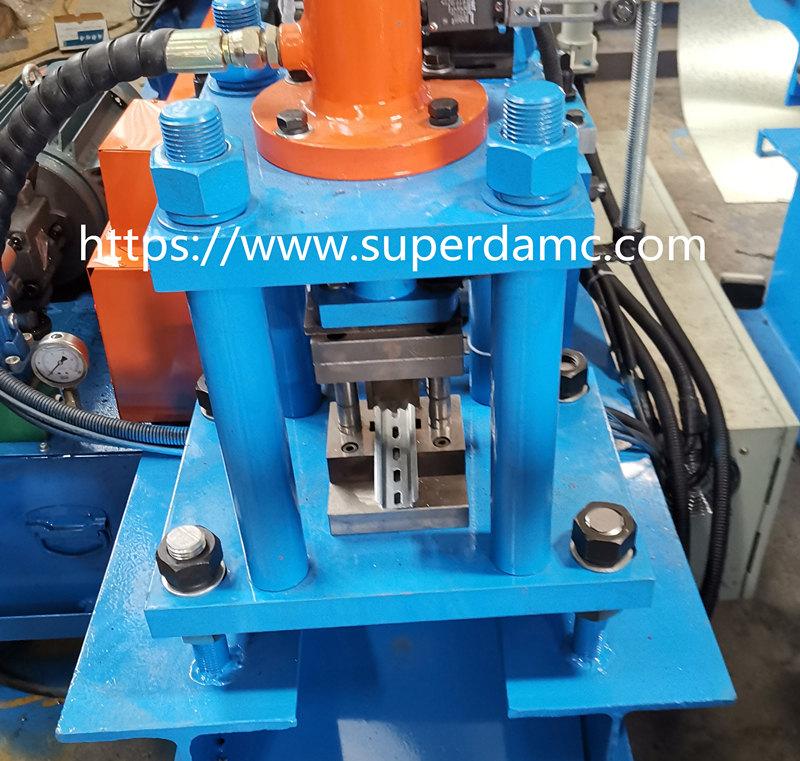

Punch hole

Stop punching, 1 set of mold, punching length 400MM.

The material of the punching die is Cr12, HRC58-62°.


Forming and shearing:
Cutting method: hydraulic cutting (blanking) stop cutting.
Blade material: Cr12, quenched, the hardness can reach HRC60 degrees.
Hydraulic system working pressure: 16Mpa
