Application:Machine automation, CNC metal processing,Multi joint robots, Robot Arm, Industrial Robots, Woodworking machinery, Printing and Laser cutting machine。

Function:Replace the torque and rigidity of planetary reducer and harmonic reducer, and save more space.

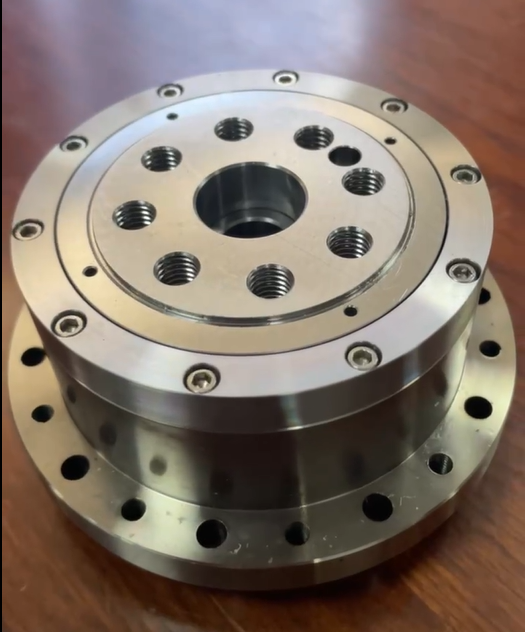

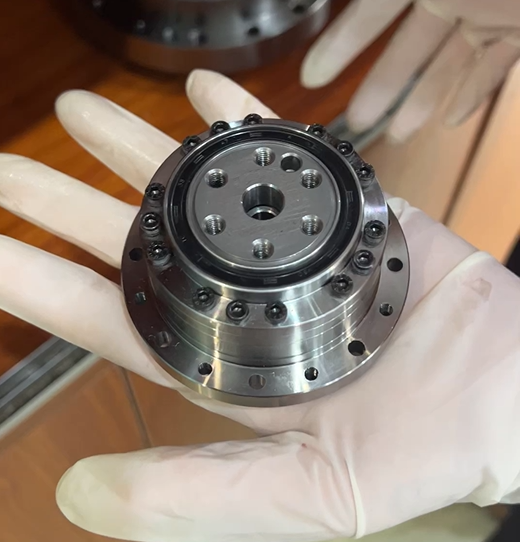

• Cycloidal Planetary Gear Reducer
• Large torsional ,high rigidity, and low backlash (1 arcmin)
• Compact structure, small noise, and light weight
• Stable operation , low noise, and easy assembly
• Reliable operation and Long lifetime
• Wide application and strong applicability

The basic parts of Fubao DRIVE high precision reduction gear are show in Fig.

tags：RV reducer,gearbox,reduction,Planetary Reducer,Harmonic Reducer

1. Case of reducer

   At the same time incorporates the high capacity precision radial, axial output bearing integrated in the reduction gear.

2. Flanges of reducer

   Input and out put flanges are fixed together by pin shafts, and rotate at reduced speed in the radial-axial output bearing relative to the case.

3. Input shaft

   High-speed member of the reduction mechanism carried by bearing in the flanges. The shaft eccentrics rotationally support the trochoidal gears via bearings.

4. Trochoidal gears

   Their almost 50% simultaneously meshing trochoidal teeth transmit a very high torque which ensures power, performance and accuracy of the reduction gear.
