3D Welding Table with Legs and Nitriding Treatment
Product Description

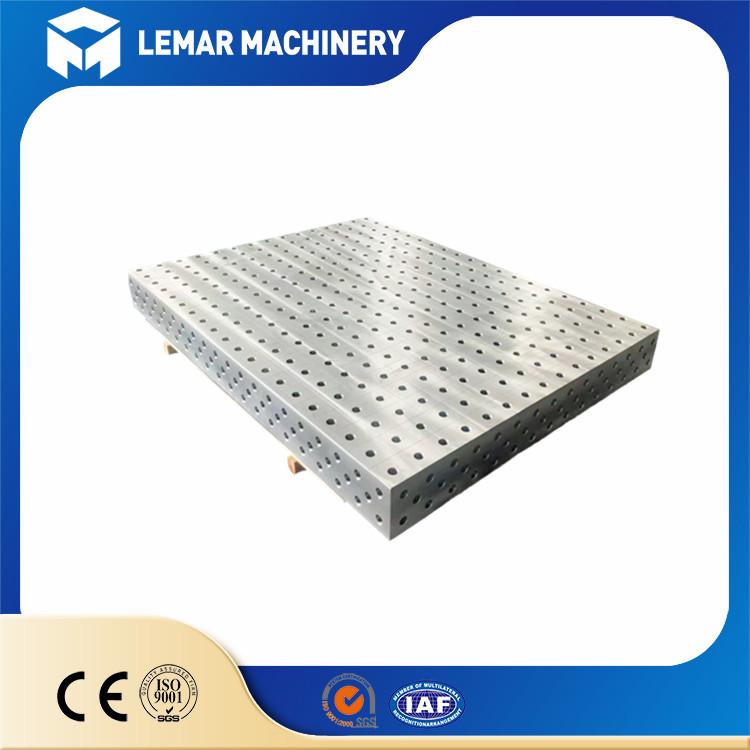

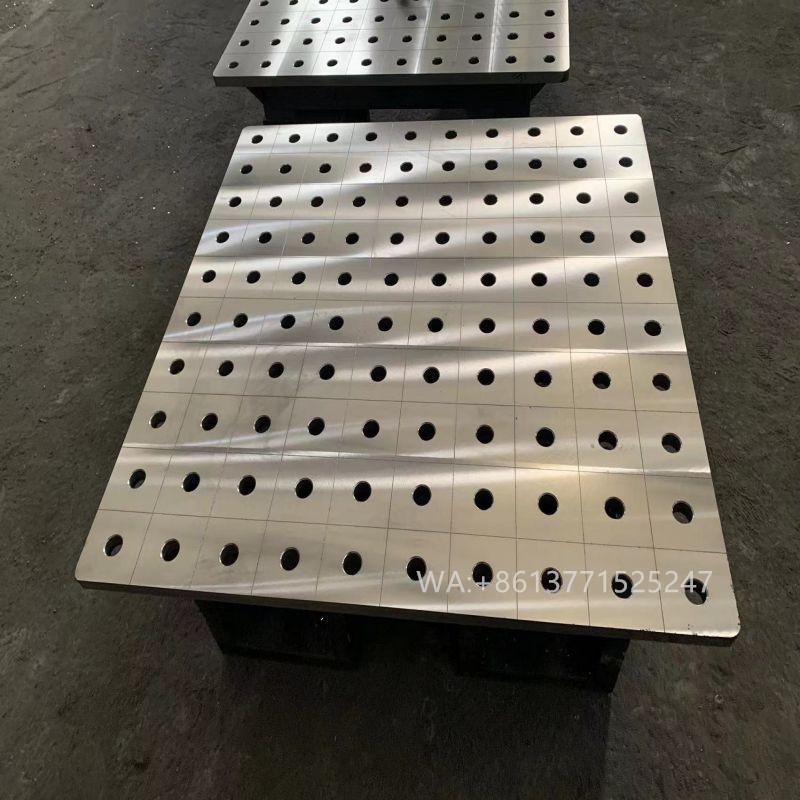

3D flexible welding workbench can be combined in three-dimensional space. The modular system perfectly embodies its universal functionality in mounting, adjusting and clamping workpieces, which is particularly prominent when welding large workpieces.
The welding fixtures of the 3D welding platform have been standardized and serialized, and can be selected appropriately during design.Because the 3D welding platform saves floor space and has a high reuse rate, it has become the most popular welding tool in the current personalized development of automobile production.
Hot tag:#3D Modular Welding Table#Welding Fixtures table#Welding Table Fixtures#3D Welding Work Table
Model |
D16/D18 |
Table material |
HT300 casting, Q345 steel plate welding, high hardness steel plate welding |
Hole diameter |
16.065-16.149mm |
Hole distance |
L1=50±0.05mm/100±0.05mm |
Engraved line distance |
W1=50±0.05mm/100±0.05mm |
Loading weight |
Standard--2T Frame shape--5T |
Flatness |
0.1/1000mm |
Surface treatment |
Nitriding |
Payment Terms: | TT/LC/DP/DA |
| |
